El12 and HAGER

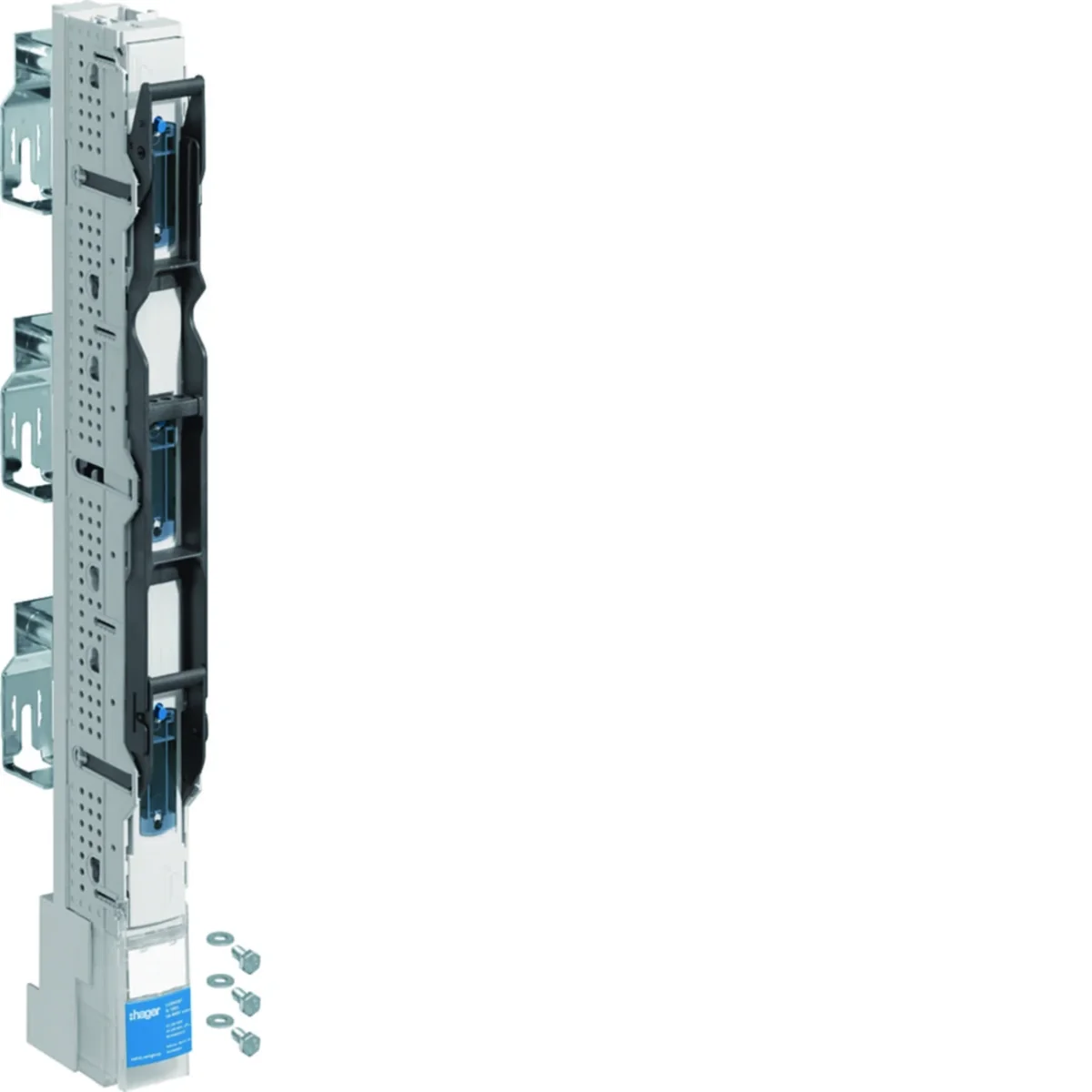

NH00 Strip switch disconnector for transformers, spacing 185mm, M8 3-pole terminal LVSGW00TSPX
local index:
ALB142HAGE
Catalog No:
LVSGW00TSPX
EAN code:
4049857124602
Click on the photo to enlarge
Manufacturer:
HAGER
Depth [mm]:
123
Number of poles:
3
Tightening torque [Nm]:
14
See full description
Price:
183,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
NH00 Strip switch disconnector for transformers, spacing 185mm, M8 3-pole terminal
Technical data
Depth [mm]
123
Tightening torque [Nm]
14
Rated current [A]
160
power loss [W]
22
Connection type
Screw connection
Height [mm]
177
Mechanical durability (number of cycles)
1400
Conventional short-circuit current [kA]
120
Rated surge voltage [V]
8000
Conductor cross-section (wire) [mm²]
1.5 - 95
Number of poles
3
Rated insulation voltage [V]
1000
Level of security
IP30
Width [mm]
50
Fuse link size
NH00
Electrical endurance (number of cycles)
200
Rated switching voltage [V]
690/0
storage temperature [°C]
from -25 to 55
Wire cross-section (cord) [mm²]
1.5 - 95
PKWIU
27.33.11.0
Other technical data
Model
Fuse switch disconnector
Rated permanent current Iu
160 A
Conditioned rated short-circuit current Iq
120 kA
Number of poles
3
Release indication
None
Double interrupting
No
Max. rated operation voltage Ue AC
690 V
Type of electrical connection of main circuit
Screw connection
Construction size fuse insert
NH00
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
100 pcs.
Weight (kg)
2,770
2,940
319,000
Width (m)
0,050
0,190
0,800
Length (m)
0,177
0,055
1,085
Depth (m)
0,741
0,770
1,200
