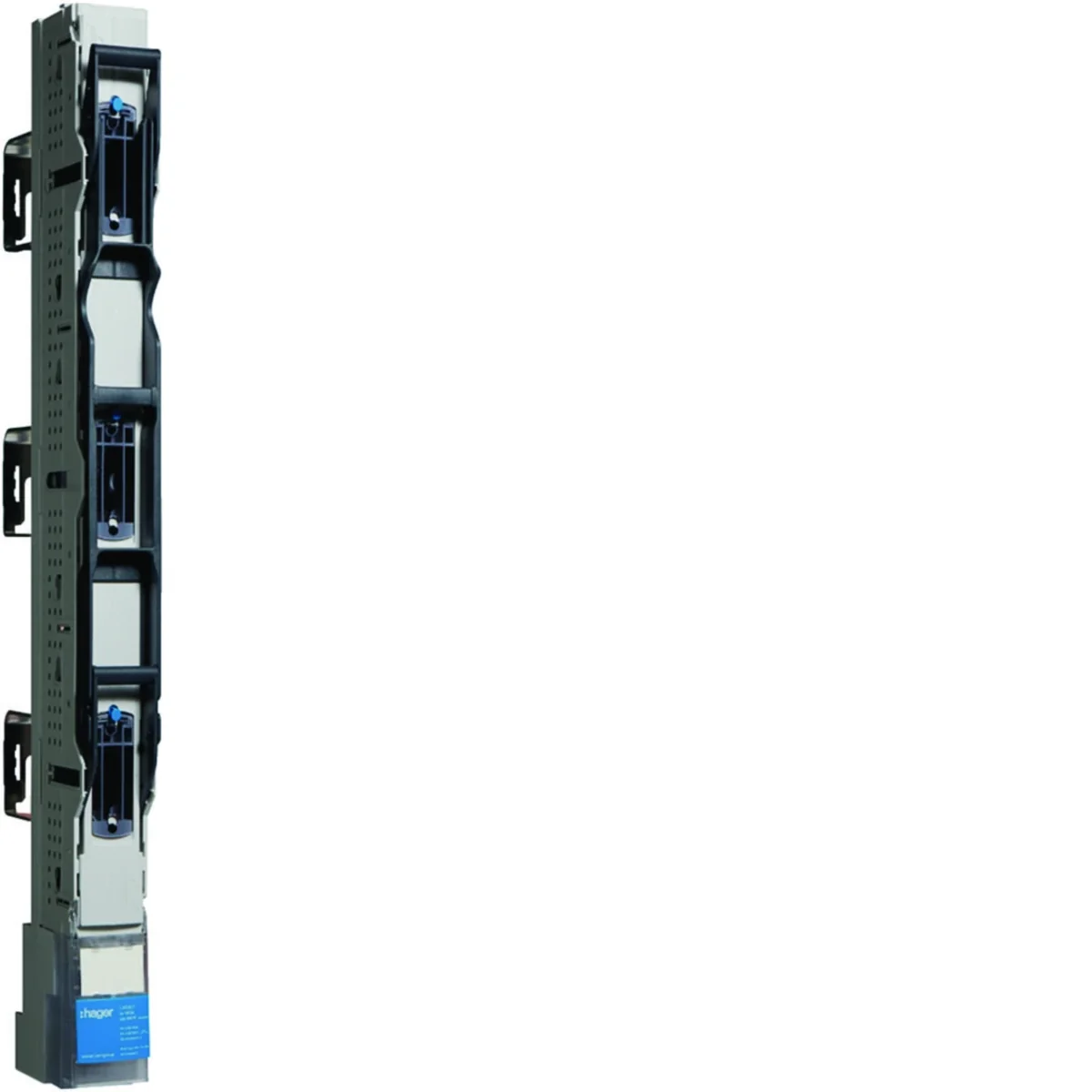

NH00 NH 1-3 height switch disconnector, spacing 185mm, terminal 95mm2, 3 poles LVSG00TRPX
local index:
ALB137HAGE
Catalog No:
LVSG00TRPX
EAN code:
4049857124596
Price:
170,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
NH00 NH 1-3 height switch disconnector, spacing 185mm, terminal 95mm2, 3 poles
Technical data
-
Depth [mm]123
-
Tightening torque [Nm]5
-
Rated current [A]160
-
power loss [W]22
-
Connection typeScrew connection
-
Height [mm]177
-
Mechanical durability (number of cycles)1400
-
Conventional short-circuit current [kA]120
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]2.5 - 95
-
Number of poles3
-
Rated insulation voltage [V]1000
-
Level of securityIP30
-
Width [mm]50
-
Fuse link sizeNH00
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]690/0/724
-
storage temperature [°C]from -25 to 55
-
Wire cross-section (cord) [mm²]2.5 - 95
-
PKWIU27.33.11.0
Other technical data
-
ModelFuse switch disconnector
-
Rated permanent current Iu160 A
-
Conditioned rated short-circuit current Iq120 kA
-
Number of poles3
-
Release indicationNone
-
Double interruptingNo
-
Max. rated operation voltage Ue AC690 V
-
Type of electrical connection of main circuitFrame clamp
-
Construction size fuse insertNH00
Manufacturer details
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 100 pcs. |
| Weight (kg) | 2,404 | 2,580 | 283,000 |
| Width (m) | 0,050 | 0,190 | 0,800 |
| Length (m) | 0,177 | 0,055 | 1,085 |
| Depth (m) | 0,741 | 0,770 | 1,200 |
