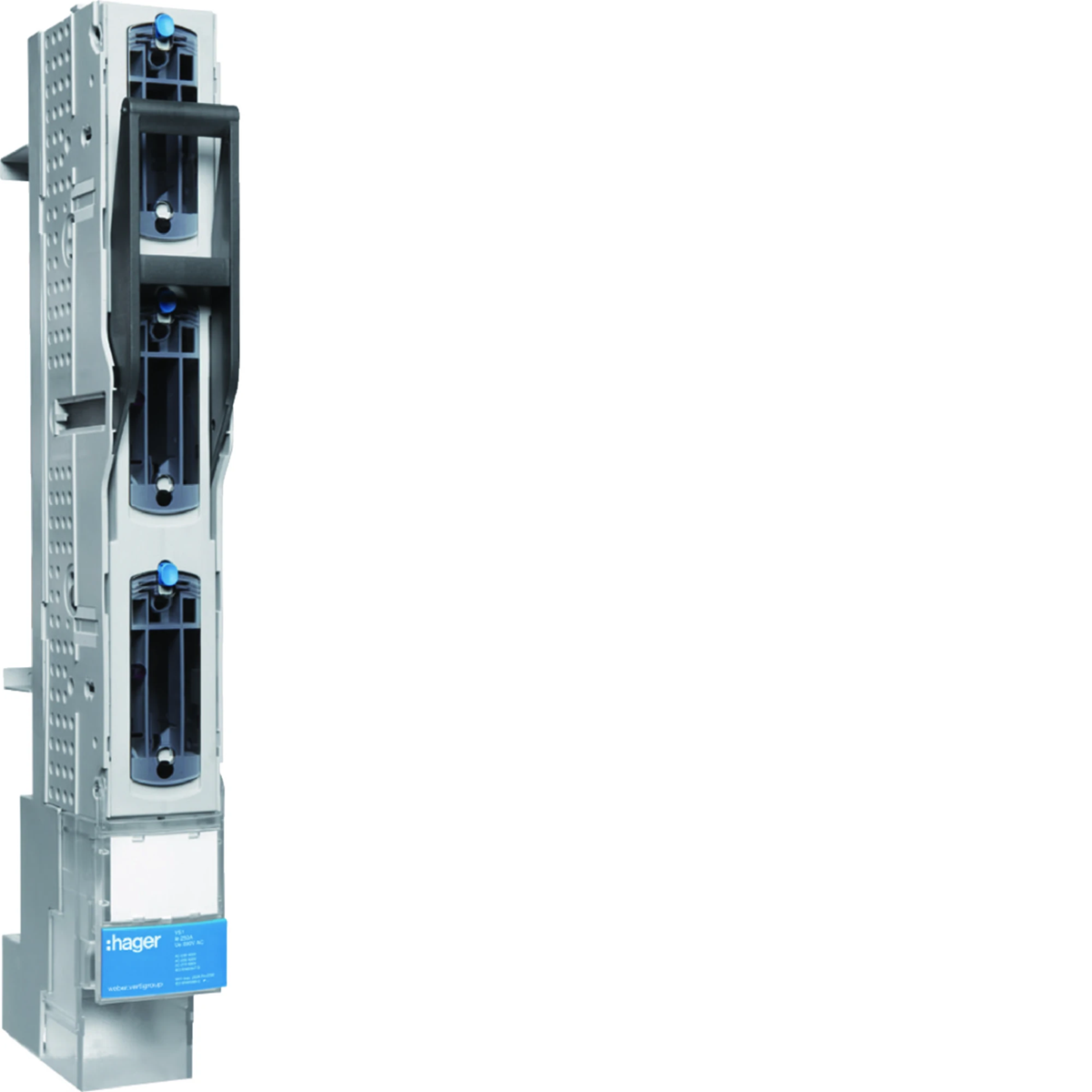

NH00 Hook strip disconnector, spacing 60mm, M8 3-pole terminal LVS0060SPX
local index:
ALB032HAGE
Catalog No:
LVS0060SPX
EAN code:
4049857124077
Price:
104,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
NH00, 160 A, for 60 mm busbar system
- for hook mounting (hooks included),
- top or bottom drain
- 3-pole connection< /p>
- for hook mounting (hooks included),
- top or bottom drain
- 3-pole connection< /p>
Technical data
-
Depth [mm]123
-
Rated insulation voltage [V]1000
-
Short-circuit current [kA]100
-
Width [mm]50
-
Height [mm]123
-
PKWIU27.33.11.0
-
Number of poles3
-
Rated current [A]160
-
Power dissipation [W]20
-
Fuse link sizeNH00
-
Rated impulse voltage [kV]8000
Other technical data
-
ModelFuse switch disconnector
-
Rated permanent current Iu160 A
-
Conditioned rated short-circuit current Iq100 kA
-
Number of poles3
-
Release indicationNone
-
Double interruptingNo
-
Max. rated operation voltage Ue AC690 V
-
Type of electrical connection of main circuitScrew connection
-
Construction size fuse insertNH00
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Paleta | Karton | Paleta |
| Quantity | 1 pcs. | 208 pcs. | 1 pcs. | 208 pcs. |
| Weight (kg) | 1,280 | 289,240 | 1,280 | 289,240 |
| Width (m) | 0,155 | 0,800 | 0,155 | 0,800 |
| Length (m) | 0,055 | 1,035 | 0,055 | 1,035 |
| Depth (m) | 0,440 | 1,200 | 0,440 | 1,200 |
