El12 and HAGER

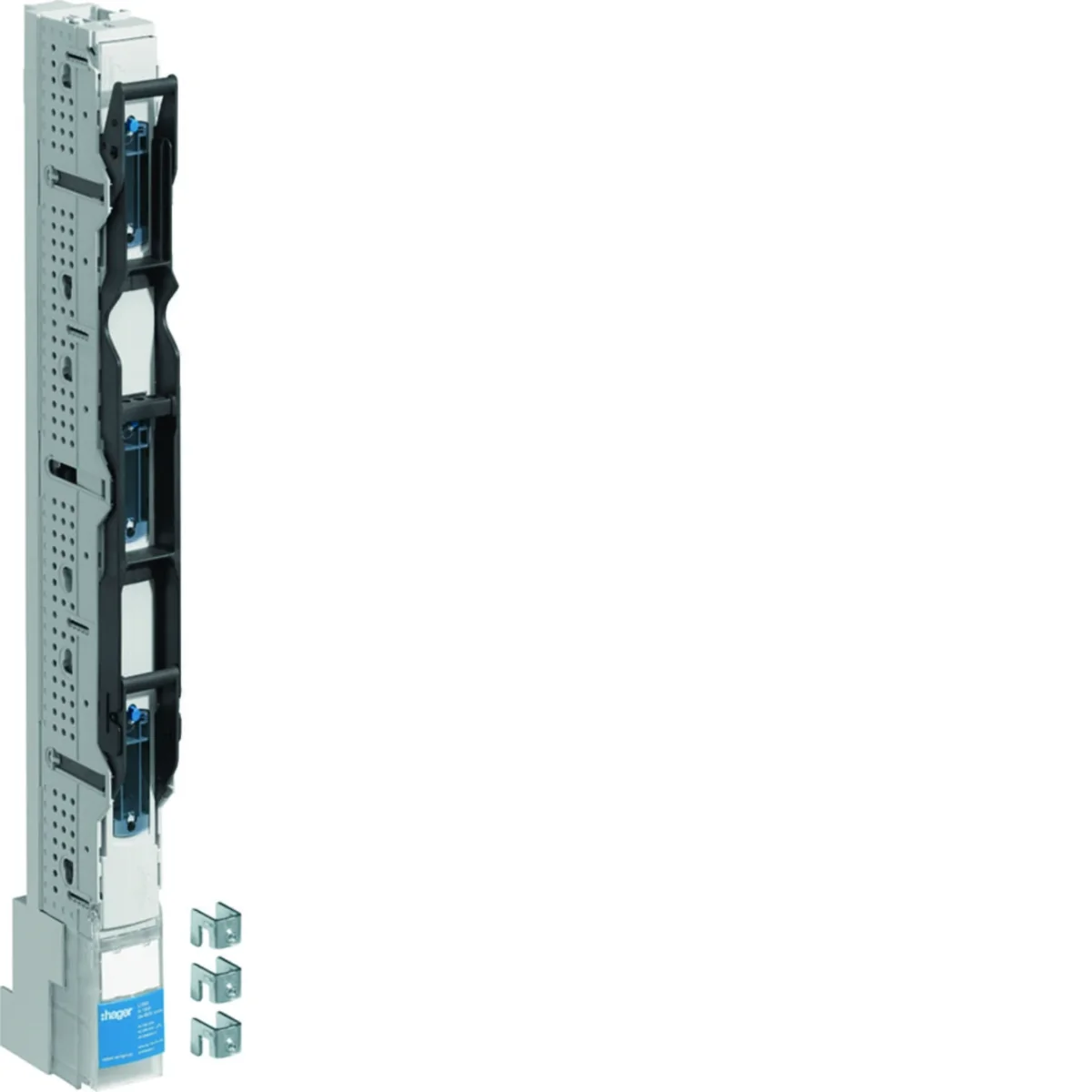

NH00 Hook strip disconnector, spacing 185mm, terminal 95mm2 3 pole LVSG00RPX
local index:
ALB135HAGE
Catalog No:
LVSG00RPX
EAN code:
4049857124527
Click on the photo to enlarge
Manufacturer:
HAGER
Depth [mm]:
123
Number of poles:
3
Tightening torque [Nm]:
5
See full description
Price:
158,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
NH00 Hook strip disconnector, spacing 185mm, terminal 95mm2 3 pole
Technical data
Depth [mm]
123
Tightening torque [Nm]
5
Rated current [A]
160
power loss [W]
22
Connection type
Screw connection
Height [mm]
123
Mechanical durability (number of cycles)
1400
Conventional short-circuit current [kA]
120
Rated surge voltage [V]
8000
Conductor cross-section (wire) [mm²]
2.5 - 95
Number of poles
3
Rated insulation voltage [V]
1000
Level of security
IP30
Width [mm]
50
Fuse link size
NH00
Electrical endurance (number of cycles)
200
Rated switching voltage [V]
690/0/724
storage temperature [°C]
from -25 to 55
Wire cross-section (cord) [mm²]
2.5 - 95
PKWIU
27.33.11.0
Other technical data
Model
Fuse switch disconnector
Rated permanent current Iu
160 A
Conditioned rated short-circuit current Iq
120 kA
Number of poles
3
Release indication
None
Double interrupting
No
Max. rated operation voltage Ue AC
690 V
Type of electrical connection of main circuit
Frame clamp
Construction size fuse insert
NH00
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
100 pcs.
Weight (kg)
2,133
2,280
253,000
Width (m)
0,050
0,145
0,800
Length (m)
0,123
0,055
0,865
Depth (m)
0,741
0,770
1,200
