320204
0

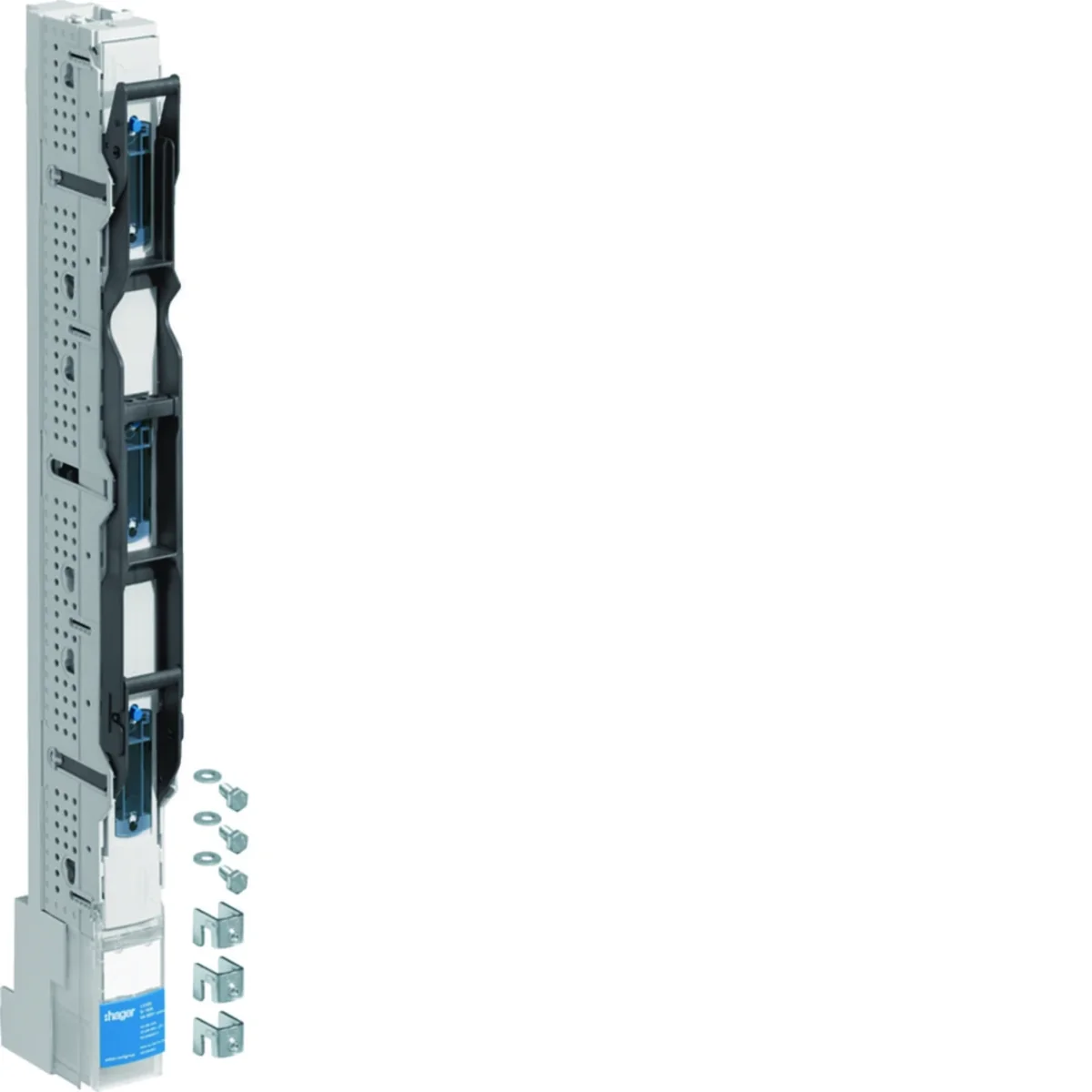

NH00 Hook strip disconnector, spacing 185mm, M8 3-pole terminal LVSG00SPX
local index:
ALB136HAGE
Catalog No:
LVSG00SPX
EAN code:
4049857124497
Price:
145,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
NH00 Hook strip disconnector, spacing 185mm, M8 3-pole terminal
Technical data
-
Depth [mm]123
-
Tightening torque [Nm]14
-
Rated current [A]160
-
power loss [W]20
-
Connection typeScrew connection
-
Height [mm]123
-
Mechanical durability (number of cycles)1400
-
Conventional short-circuit current [kA]120
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]95
-
Number of poles3
-
Rated insulation voltage [V]1000
-
Level of securityIP30
-
Width [mm]50
-
Fuse link sizeNH00
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]690/0
-
storage temperature [°C]from -25 to 55
-
Wire cross-section (cord) [mm²]95
-
PKWIU27.33.11.0
Other technical data
-
ModelFuse switch disconnector
-
Rated permanent current Iu160 A
-
Conditioned rated short-circuit current Iq120 kA
-
Number of poles3
-
Release indicationNone
-
Double interruptingNo
-
Max. rated operation voltage Ue AC690 V
-
Type of electrical connection of main circuitScrew connection
-
Construction size fuse insertNH00
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 100 pcs. |
| Weight (kg) | 2,157 | 2,320 | 257,000 |
| Width (m) | 0,050 | 0,145 | 0,800 |
| Length (m) | 0,123 | 0,055 | 0,880 |
| Depth (m) | 0,741 | 0,765 | 1,200 |
