El12 and HAGER

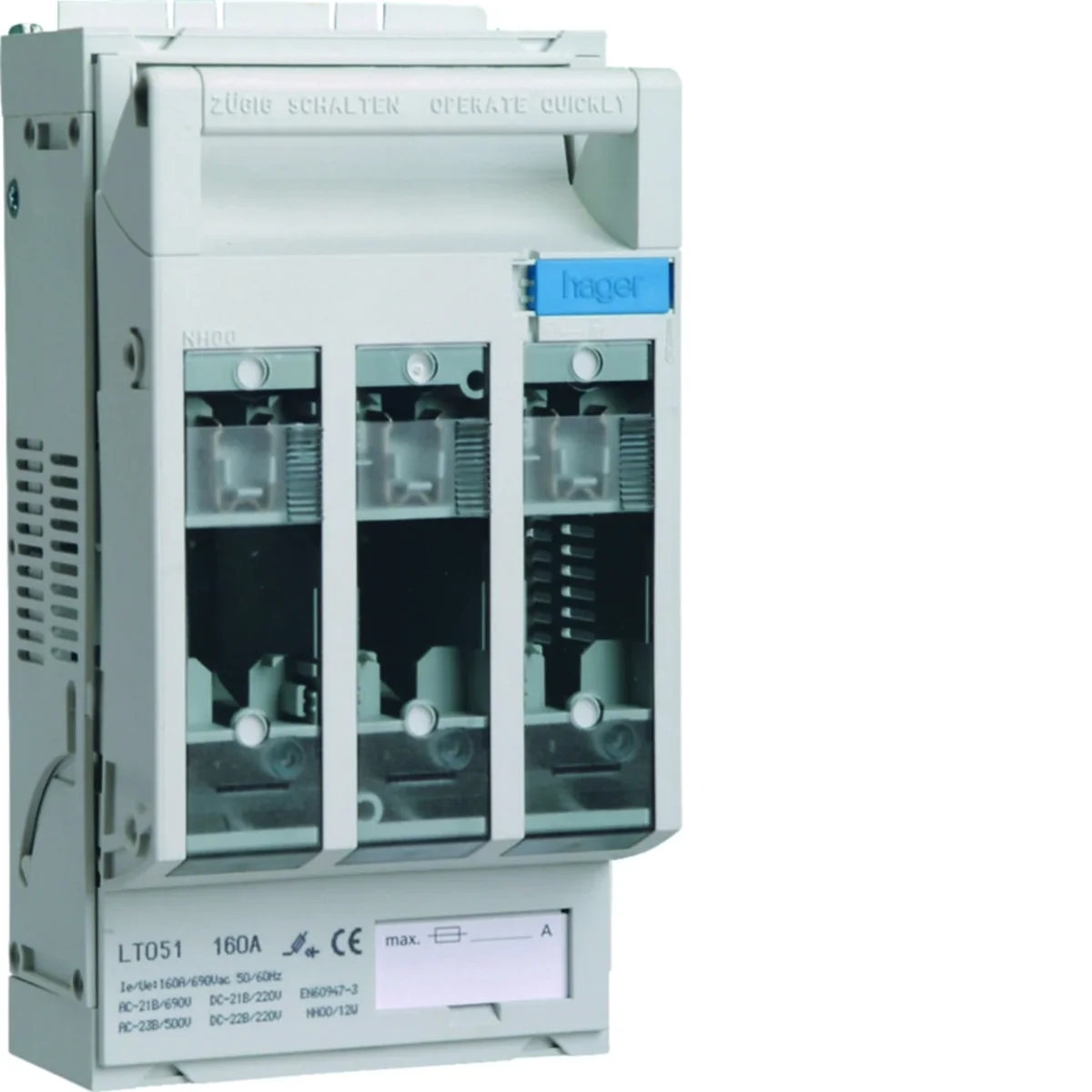

NH00 fuse switch disconnector 160 A, TS35 plate/busbars, class 95 mm2/res.3x16 mm2 LT051
local index:
ALB129HAGE
Catalog No:
LT051
EAN code:
3250614200519
Click on the photo to enlarge
Manufacturer:
HAGER
Length [mm]:
150
Energy lost in cables [W]:
46.5
Number of poles:
3
See full description
Price:
72,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
NH00 fuse switch disconnector 160 A, TS35 plate/busbars, class 95 mm2/res.3x16 mm2
Technical data
Length [mm]
150
Number of poles
3
power loss [W]
9
Electrical endurance (number of cycles)
200
The distance between the rails
40mm
Wire cross-section (cord) [mm²]
6 - 95
PKWIU
27.33.11.0
Energy lost in cables [W]
46.5
Rated current [A]
160
Fuse link size
NH00
Mechanical durability (number of cycles)
1400
Rated surge voltage [V]
8000
Conductor cross-section (wire) [mm²]
6 - 95
Other technical data
Wyposażenie obudowy
Z rozłącznikiem bezpiecznikowym
Rated operation current Ie
160 A
Rated insulation voltage Ui
1000 V
With error protection
No
Degree of protection (IP)
IP3X
Number of poles
3
Max. rated operation voltage Ue AC
690 V
Construction size fuse inserts
NH00
Height of housing
206 mm
Degree of protection (NEMA)
1
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
240 pcs.
Weight (kg)
0,750
0,920
219,360
Width (m)
0,106
0,115
0,800
Length (m)
0,206
0,100
1,000
Depth (m)
0,091
0,230
1,200
