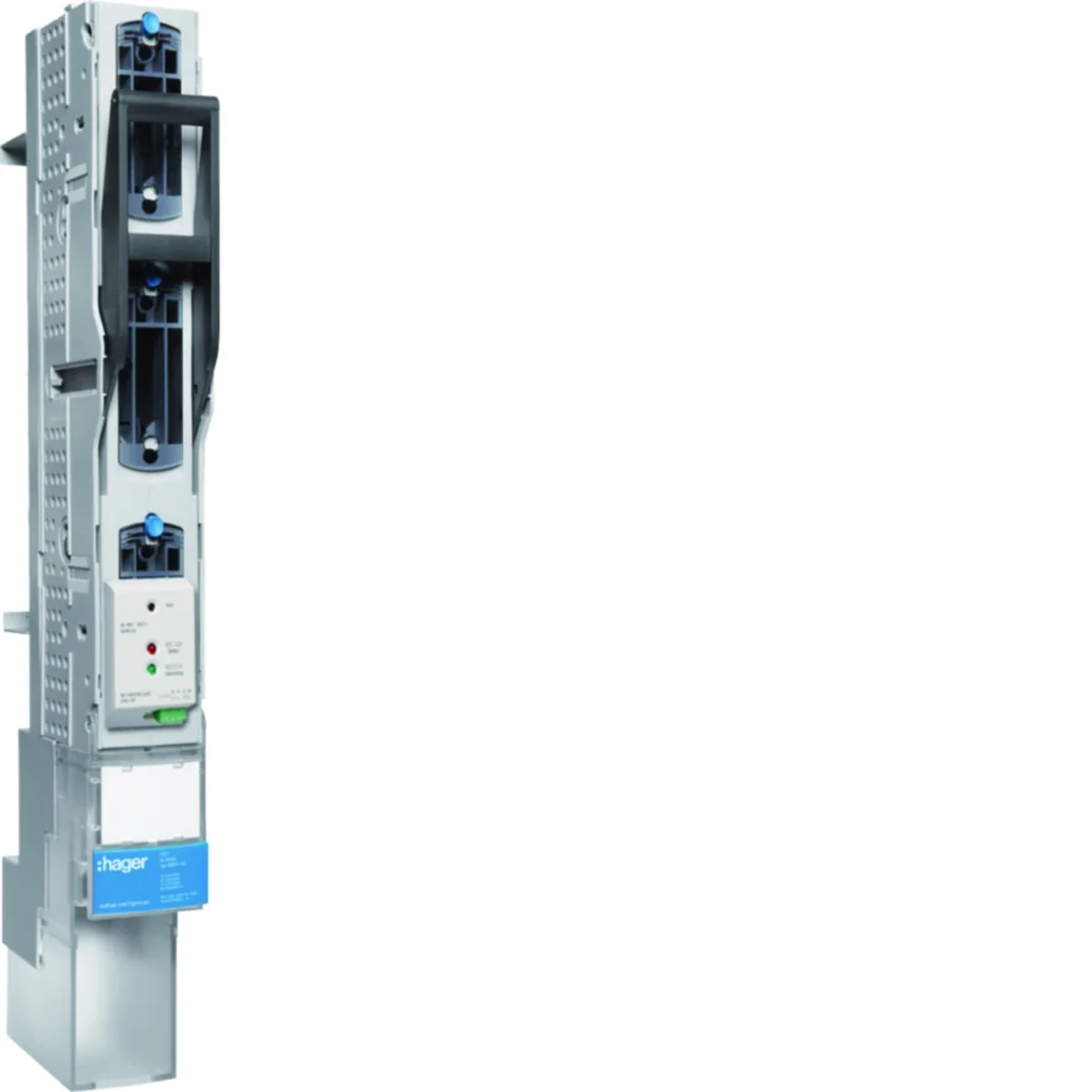

NH00, disconnect fuse 160 A, for busbar system with 60 mm spacing, M8 clamp LVS0060SPSU

local index:
ALB134HAGE
Catalog No:
LVS0060SPSU
EAN code:
4049857190249
Manufacturer: HAGER
Number of poles: 3
Tightening torque [Nm]: 14
Rated insulation voltage [V]: 1000
Price:
172,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH00, disconnect fuse 160 A, for busbar system with 60 mm spacing, M8 clamp

Technical data

  • Number of poles
    3
  • Rated insulation voltage [V]
    1000
  • power loss [W]
    20
  • Connection type
    Screw connection
  • Height [mm]
    123
  • Mechanical durability (number of cycles)
    1400
  • Rated impulse voltage [kV]
    8
  • storage temperature [°C]
    from -25 to 55
  • Conductor cross-section (wire) [mm²]
    2.5 - 95
  • Tightening torque [Nm]
    14
  • Rated current [A]
    160
  • Width [mm]
    50
  • Fuse link size
    NH00
  • Electrical endurance (number of cycles)
    200
  • Rated switching voltage [V]
    0/690
  • Conventional short-circuit current [kA]
    100
  • Wire cross-section (cord) [mm²]
    2.5 - 95
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Fuse switch disconnector
  • Rated permanent current Iu
    160 A
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of poles
    3
  • Release indication
    Electronic
  • Double interrupting
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Type of electrical connection of main circuit
    Screw connection
  • Construction size fuse insert
    NH00

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 72 pcs.
Weight (kg) 1,190 1,320 183,744
Width (m) 0,050 0,180 -
Length (m) 0,123 0,060 -
Depth (m) 0,401 0,480 -
