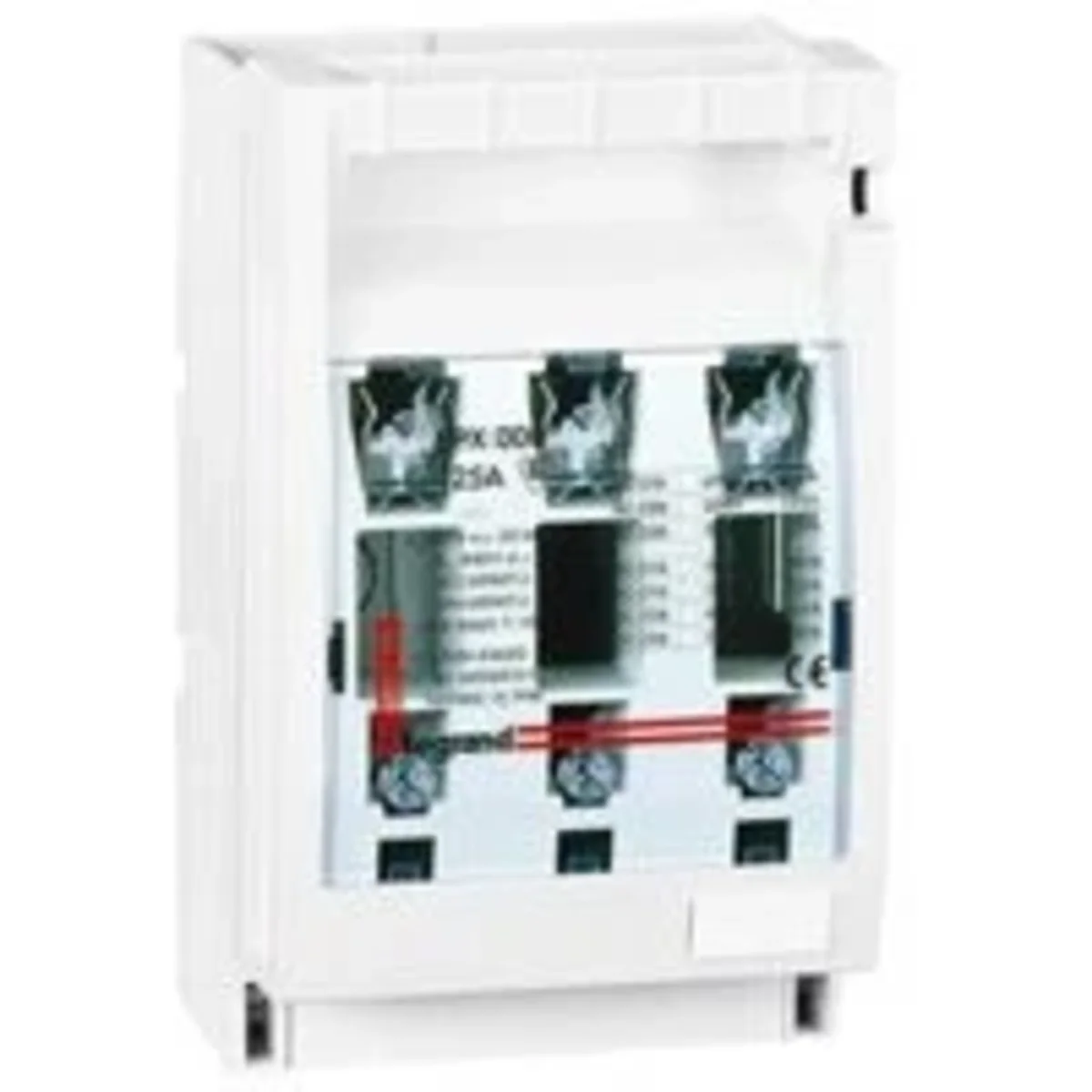

NH SPX 000 125 A fuse switch disconnector 605200
local index:
ALB326LEGR
Catalog number:
605200
EAN code:
3245066052007
Price:
542,82 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
NH SPX 000 125 A fuse switch disconnector
Technical data
-
As main switchYes
-
Rated voltage [V]690
-
Continuous current [A]125
-
Rated conditional short-circuit current [kA]50
-
Number of poles3
-
Suitable for flat mountingYes
-
Level of securityIP20
-
PKWIU27.12.23.0
Other technical data
-
Version as main switchYes
-
Max. rated operation voltage Ue AC800 V
-
Rated operation power at AC-23, 400 V86.5 kW
-
Suitable for fusesNH000
-
With error protectionNo
-
Suitable for floor mountingNo
-
Suitable for busbar mountingNo
-
Position control elementFront side
-
Motor drive integratedNo
-
Degree of protection (IP), front sideIP40
-
Version as safety switchYes
-
Rated permanent current Iu125 A
-
Conditioned rated short-circuit current Iq50 kA
-
Number of poles3
-
Type of electrical connection of main circuitFrame clamp
-
Suitable for front mountingYes
-
Type of control elementCover grip
-
Motor drive optionalNo
-
Version as emergency stop installationNo
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 1 pcs. | 312 pcs. |
| Weight (kg) | 0,779 | 243,048 |
| Volume (m3) | 0,001 | 0,924 |
| Width (m) | 0,095 | 1,200 |
| Length (m) | 0,082 | 0,770 |
| Depth (m) | 0,148 | 1,000 |
