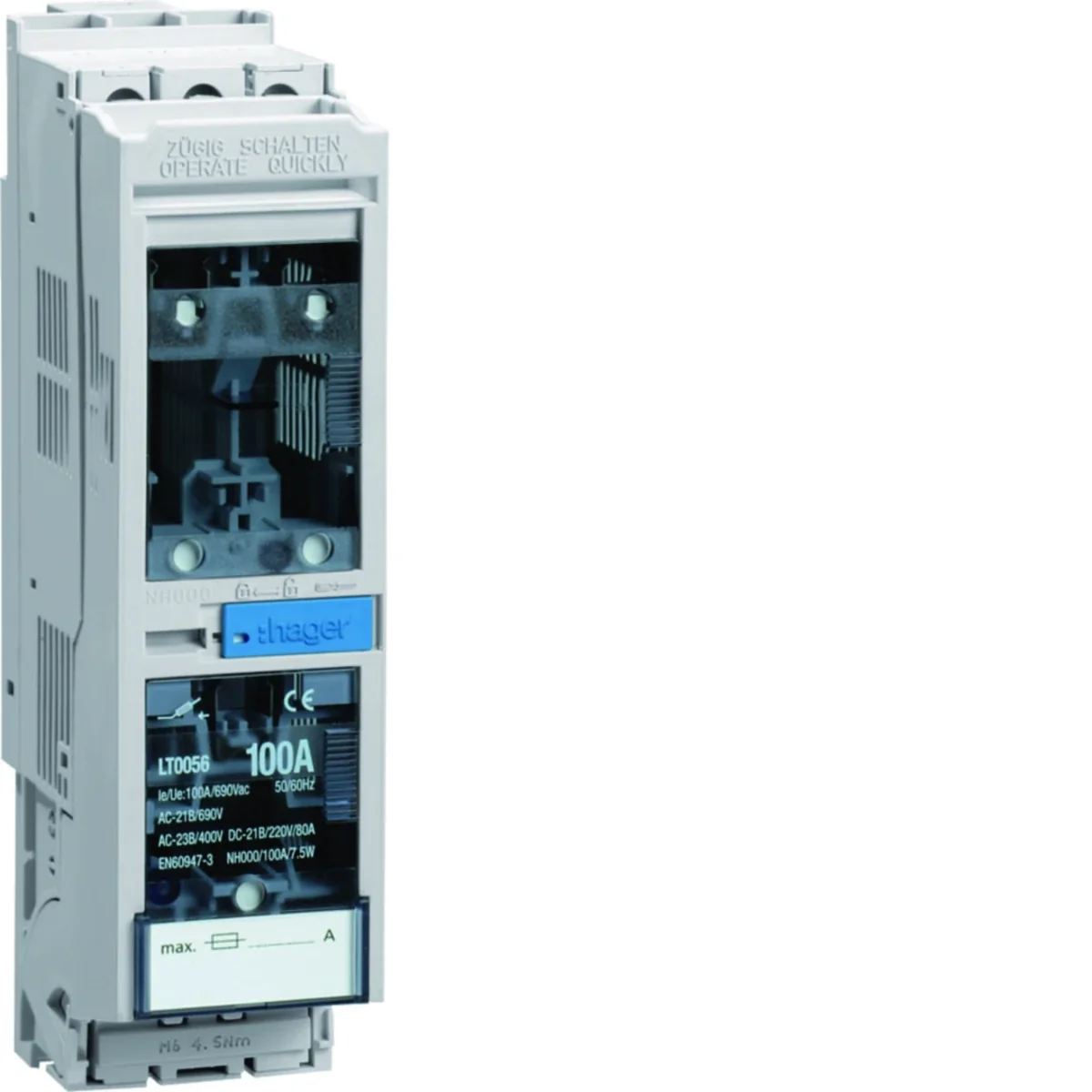

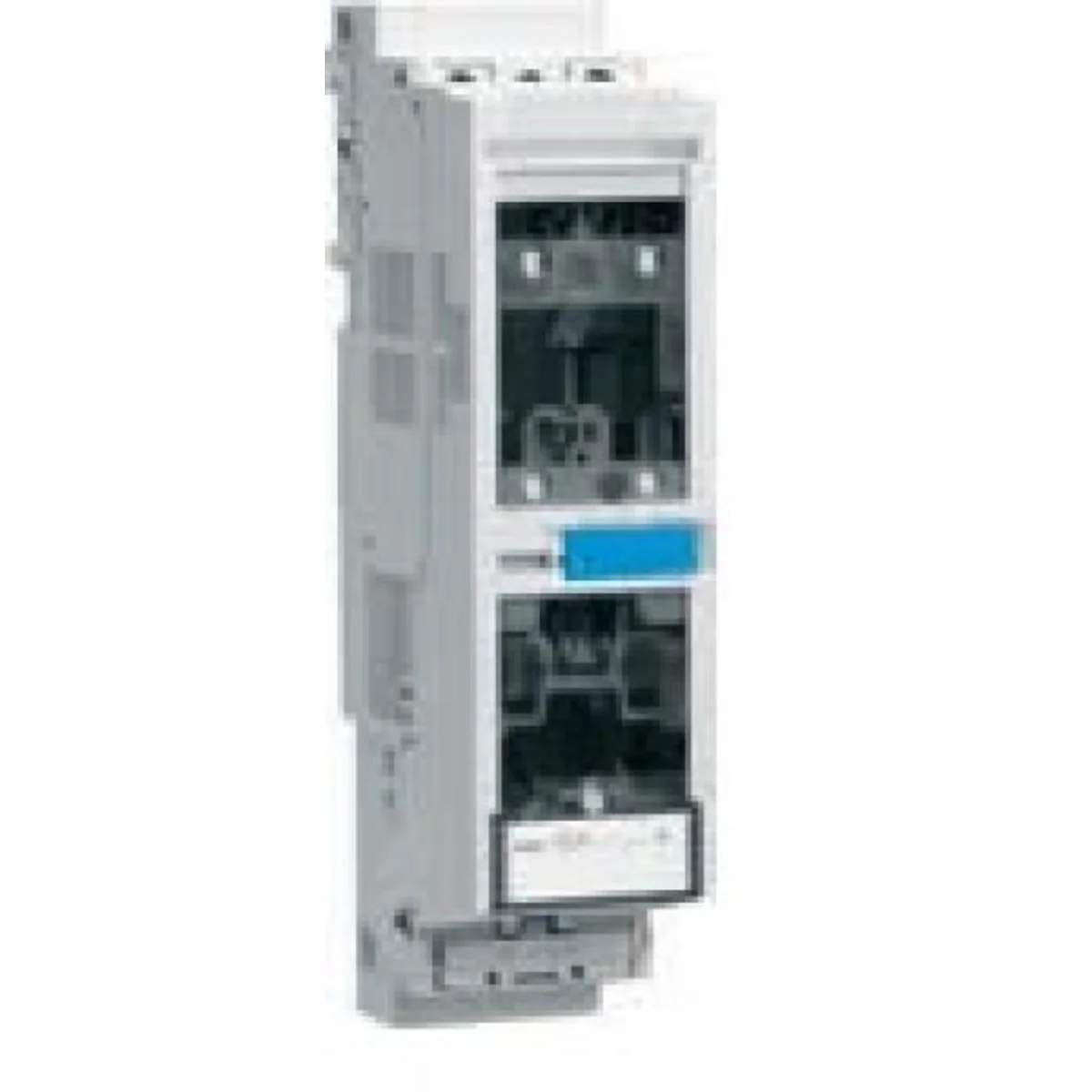

NH disconnector - size 000 3x100A mounted on 60mm busbars LT0056

local index:
ALI155HAGE
Catalog No:
LT0056
EAN code:
3250614200618
Manufacturer: HAGER
Depth [mm]: 106
Number of poles: 3
Surge voltage [kV]: 8000
Price:
88,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH fuse switch disconnectors for Cu busbars 12-30 x 5/10 mm with a spacing of 60 mm univers

Technical data

  • Depth [mm]
    106
  • Surge voltage [kV]
    8000
  • Rated insulation voltage [V]
    1000
  • Short-circuit current [kA]
    50
  • Width [mm]
    53
  • Height [mm]
    206
  • Number of poles
    3
  • Rated voltage [V]
    690
  • Rated current [A]
    100
  • Power dissipation [W]
    22.5
  • Fuse link size
    NH000
  • PKWIU
    27.33.11.0

Other technical data

  • Wyposażenie obudowy
    Z rozłącznikiem bezpiecznikowym
  • Rated operation current Ie
    100 A
  • Rated insulation voltage Ui
    1000 V
  • With error protection
    No
  • Degree of protection (IP)
    IP3X
  • Number of poles
    3
  • Max. rated operation voltage Ue AC
    690 V
  • Construction size fuse inserts
    NH000
  • Height of housing
    206 mm
  • Degree of protection (NEMA)
    1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 280 pcs.
Weight (kg) 0,527 0,595 189,600
Width (m) 0,053 0,135 0,800
Length (m) 0,214 0,065 0,750
Depth (m) 0,124 0,240 1,200
