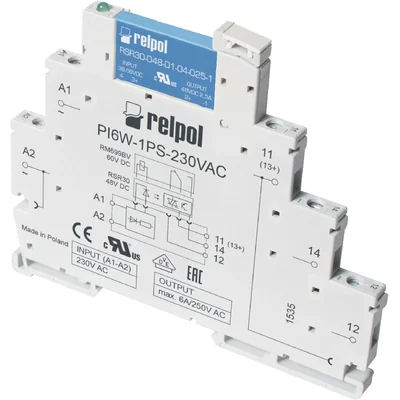

Narrow profile interface relay: 1P - one changeover contact PIR6W-1PS-24VDC-R 858620
local index:
APE891RELP
Catalog No:
858620
Price:
144,35 €
gross / pkg.
(including VAT 23%)
14,44 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Narrow profile interface relay: 1P - one changeover contact. Width 6.2mm. screw terminals. Output (replaceable - relay RM699BV, "R" code): 1P contacts - terminals: 11-12-14; AC1 - 6A / 230V; DC1 - 6 A / 24 V. Input - terminals: A1 - A2 - any polarity, supply voltage Un - 24 V DC. Dimensions: 98.5 x 6.2 x 85.5mm. Mounting on a 35 mm rail. IP 20.
Technical data
-
Level of securityIP20
-
Pieces in the package10
-
Width [mm]6.2
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP20
-
Height98.5 mm
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as change-over contact1
-
Complete with socketYes
-
Width6.2 mm
-
Depth85.5 mm
