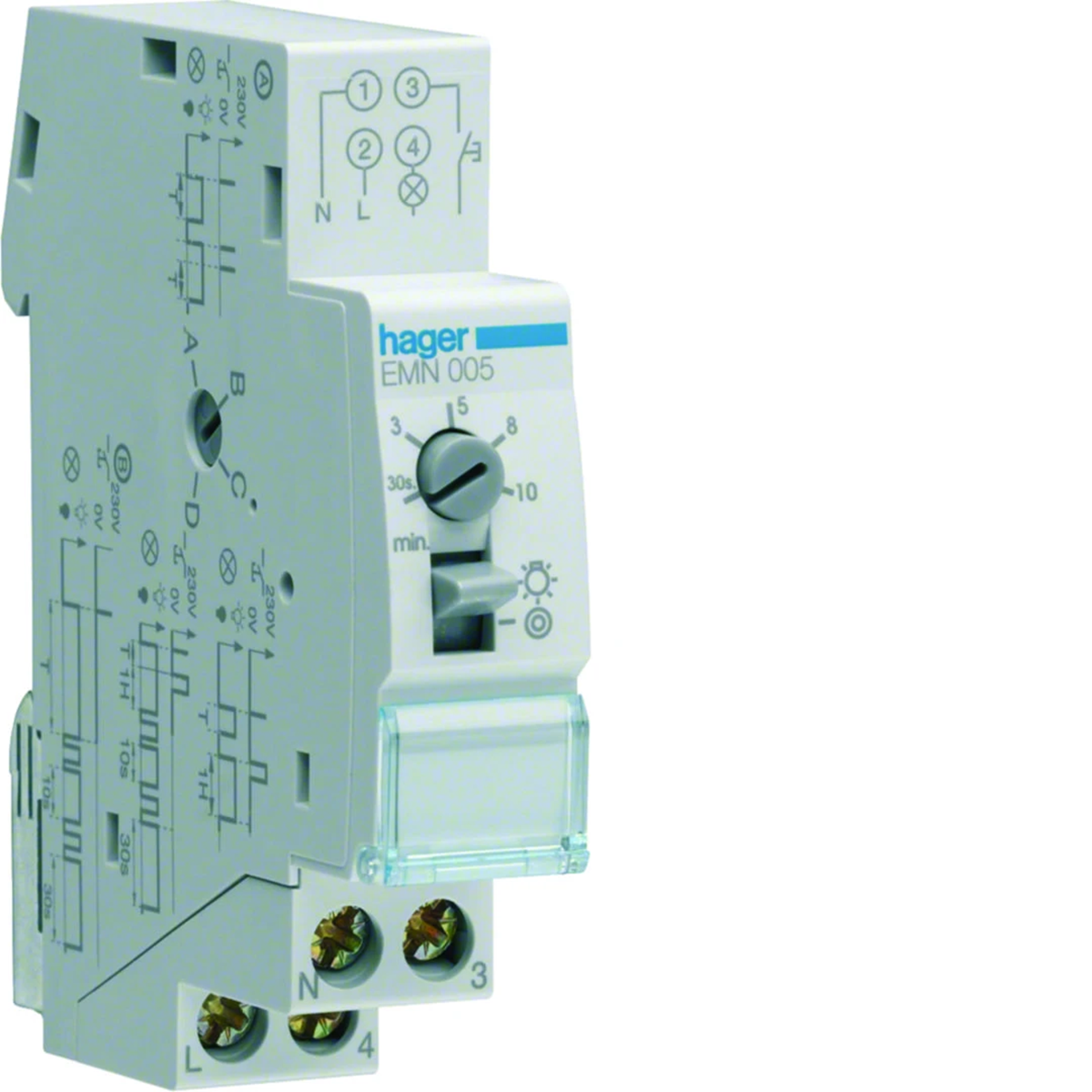

Multifunctional stair switch EMN005
local index:
APC001HAGE
Catalog No:
EMN005
EAN code:
3250612339952
Price:
113,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Multifunctional stair switch
| Prewarning | 40 |
Technical data
-
Number of modules1
-
AC control voltage [V]230
-
Idle current [mA]100
-
Level of securityIP20
-
Number of modules1
-
Maximum power [W]2300
-
Rated voltage [V]230
-
Rated current [A]16
-
Short-circuit breaking capacity [kA]AC1
-
PKWIU26.52.24.0
Other technical data
-
FunctionElectronic
-
Width in number of modular spacings1
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Frequency control voltage 250 ... 60 Hz
-
Max. switching current (cos phi = 0.6)16 A
-
Push button glow-lamp current100 mA
-
Pre-warning of switching-offFlickering
-
Supply voltage230 ... 230 V
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
-
Mounting methodDIN rail
-
Built-in depth64 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1230 ... 230 V
-
Frequency control voltage 150 ... 60 Hz
-
Rated switch current16 A
-
Release-delay0.5 ... 10 min
-
Wiring system3 and 4 wire configuration
-
RepetitiveRepetitive
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp3600 VA
-
Max. load fluorescent lamp (parallel compensated)1000 VA
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,088 | 0,089 | 9,857 | 259,568 |
| Width (m) | 0,082 | 0,097 | 0,318 | 0,800 |
| Length (m) | 0,026 | 0,023 | 0,219 | 1,026 |
| Depth (m) | 0,096 | 0,082 | 0,367 | 1,200 |
