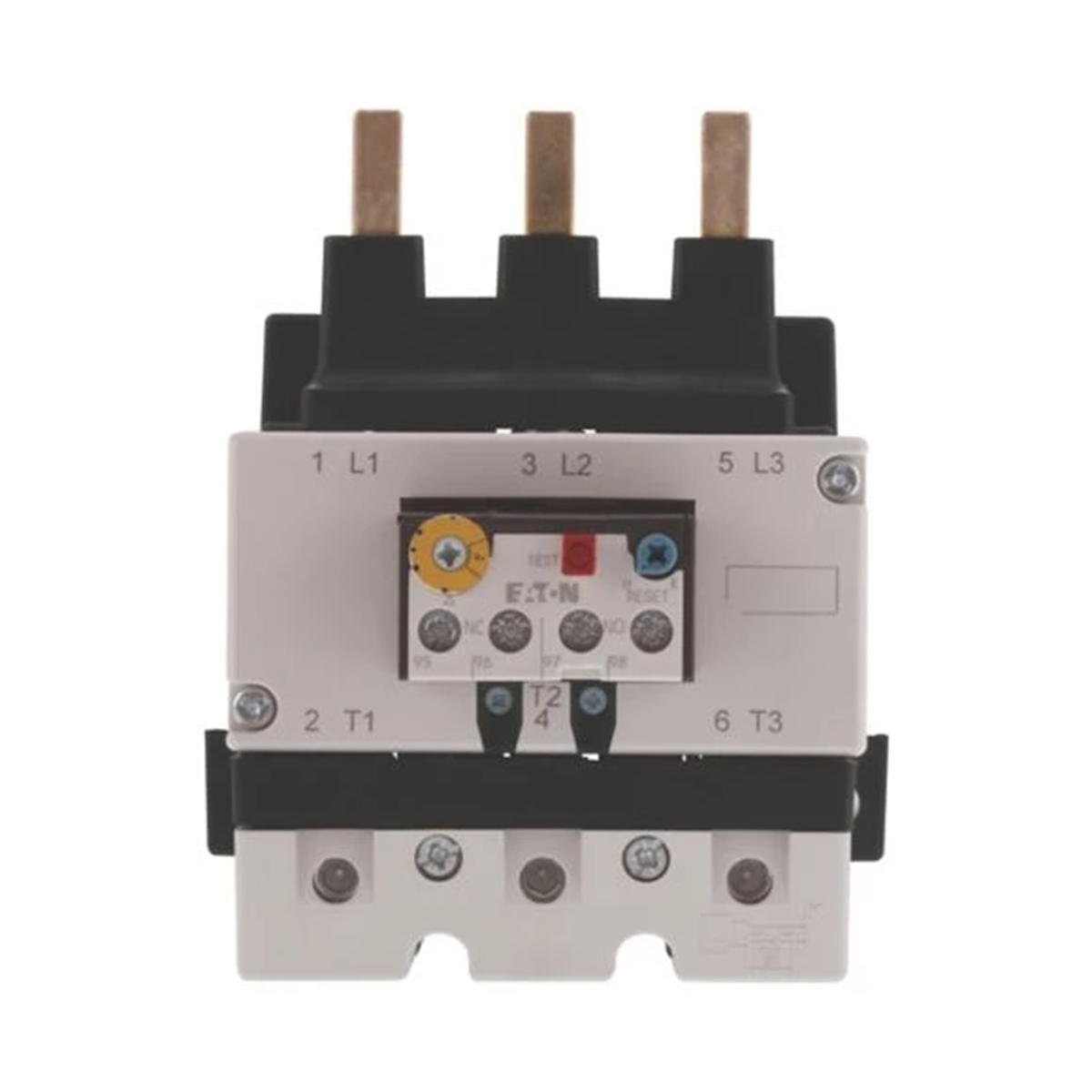

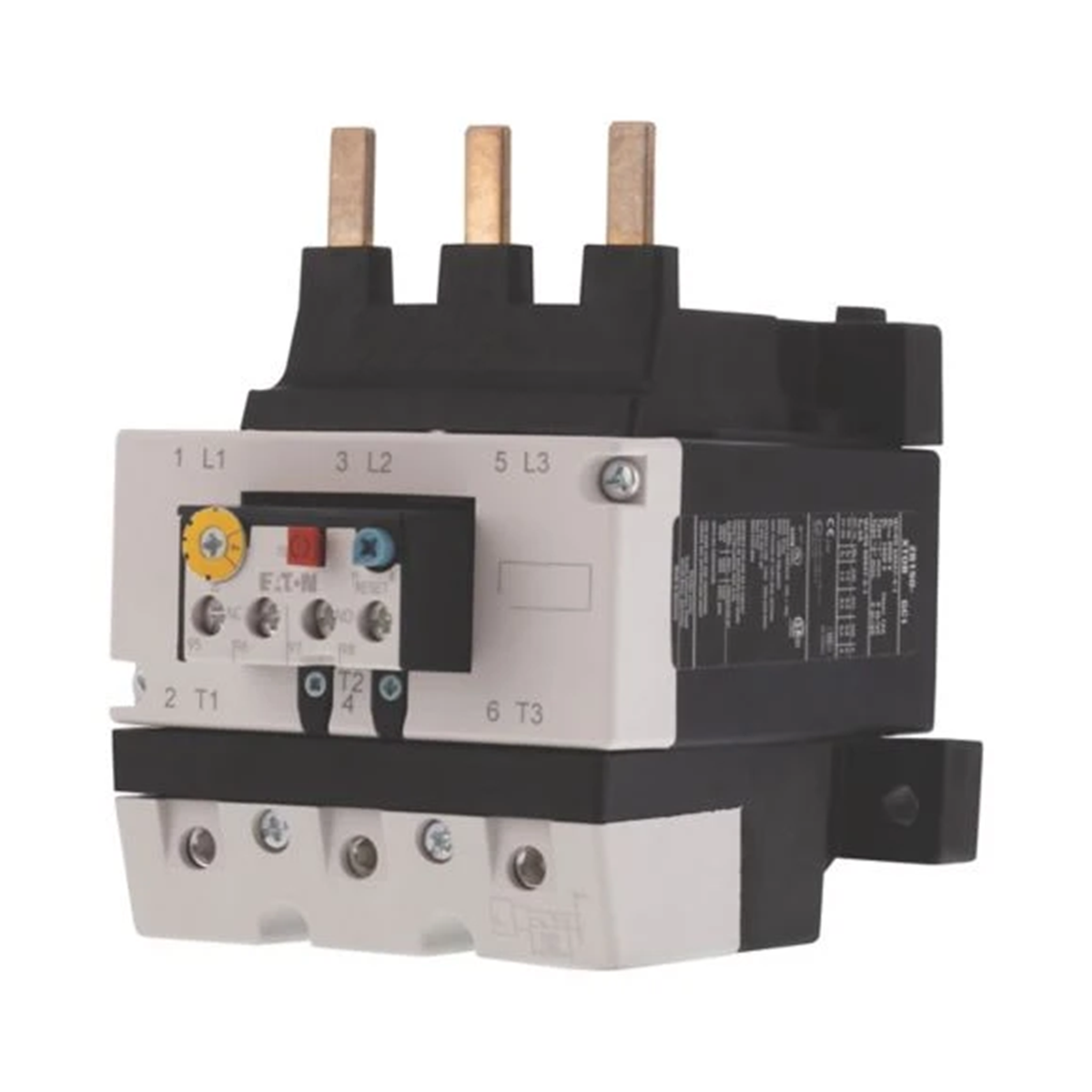

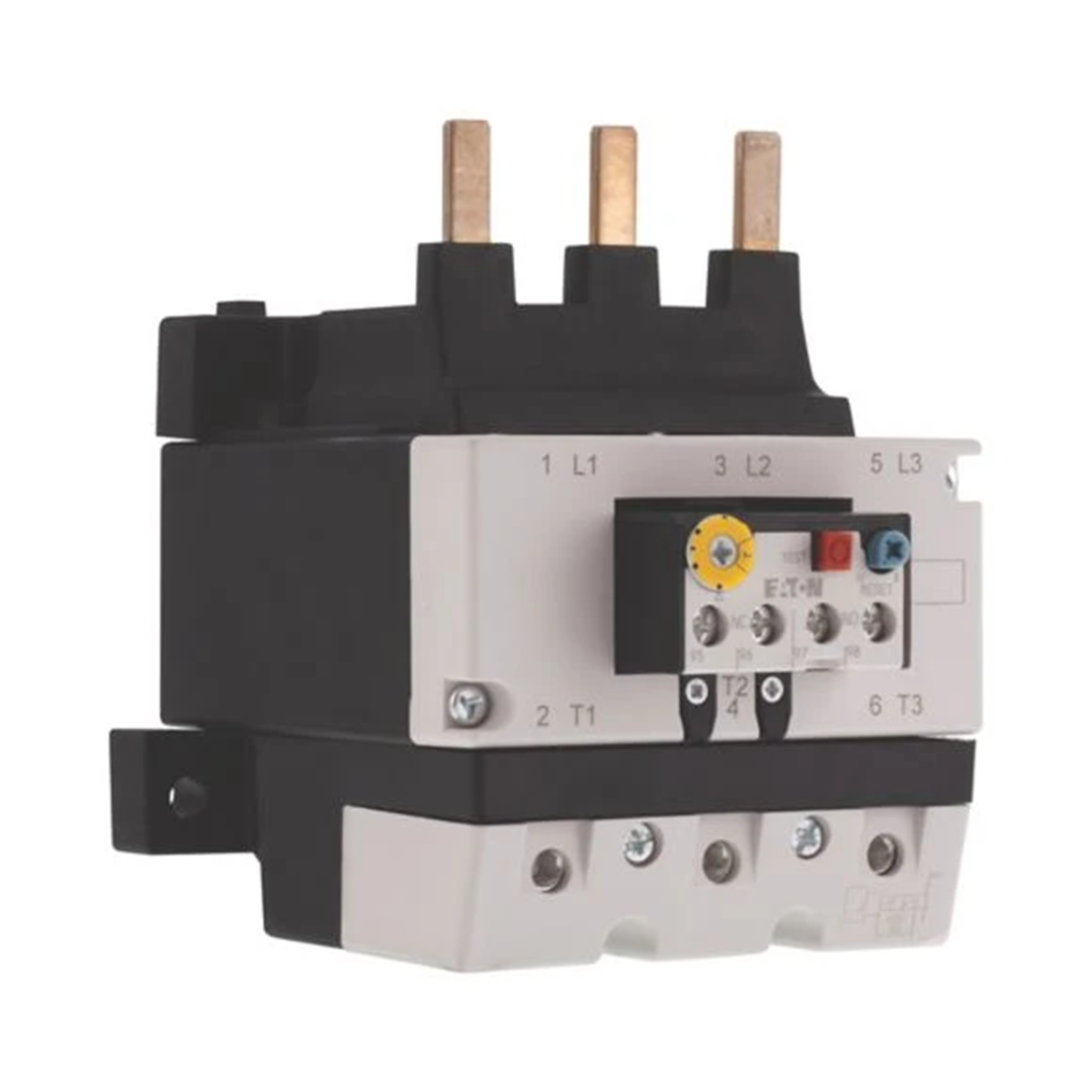

Motor protection relay, 145-175A, 1zz+1sr, for DILM80...170, direct mount 107316

local index:
API254MOEL
Catalog No:
107316
EAN code:
4015081070794
Price:
385,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motor protection relay, Range: ZB motor protection relay up to 150 A, Accessories: Motor protection relay, Size: ZB150, Phase failure sensitivity: IEC/EN 60947, VDE 0660 part 102, Description: Test/disable button, Manual/auto reset button, Free release, Mounting type: direct mount, Auxiliary contact C = NO contact: 1 N/O, Auxiliary contact R = N/C contact: 1 C, Suitable for: DILM80, DILM95, DILM115, DILM150, DILM170, DILMF80, DILMF95, DILMF115, DILMF150, DIULM80, DIULM95, DIULM115, DIULM150, SDAINLM140, SDAINLM165, SDAINLM200, SDAINLM260, Standards and regulations: IEC/EN 60947, VDE 0660, UL, CSA, Degree of protection: IP00

Technical data

Other technical data

  • Adjustable current range
    145 ... 175 A
  • Mounting method
    Direct attachment
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Reset function input
    No
  • Reset function push-button
    Yes
  • Max. rated operation voltage Ue
    1000 V
  • Type of electrical connection of main circuit
    Screw connection
  • Number of auxiliary contacts as normally open contact
    1
  • Release class
    CLASS 10 A
  • Reset function automatic
    Yes

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 1,210 1,325
Volume (m3) 0,002 0,004
Width (m) 0,118 0,130
Length (m) 0,134 0,165
Depth (m) 0,135 0,170
