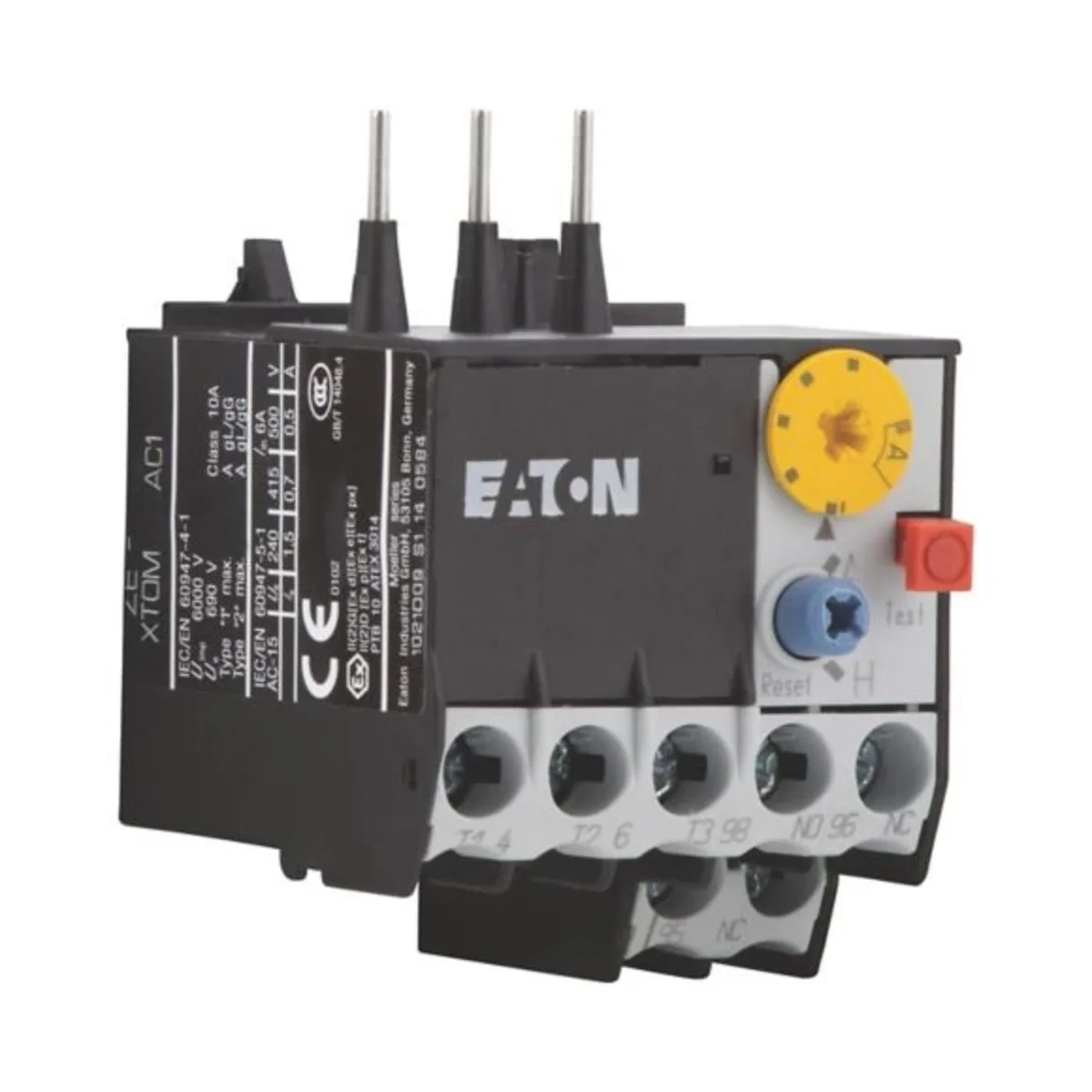

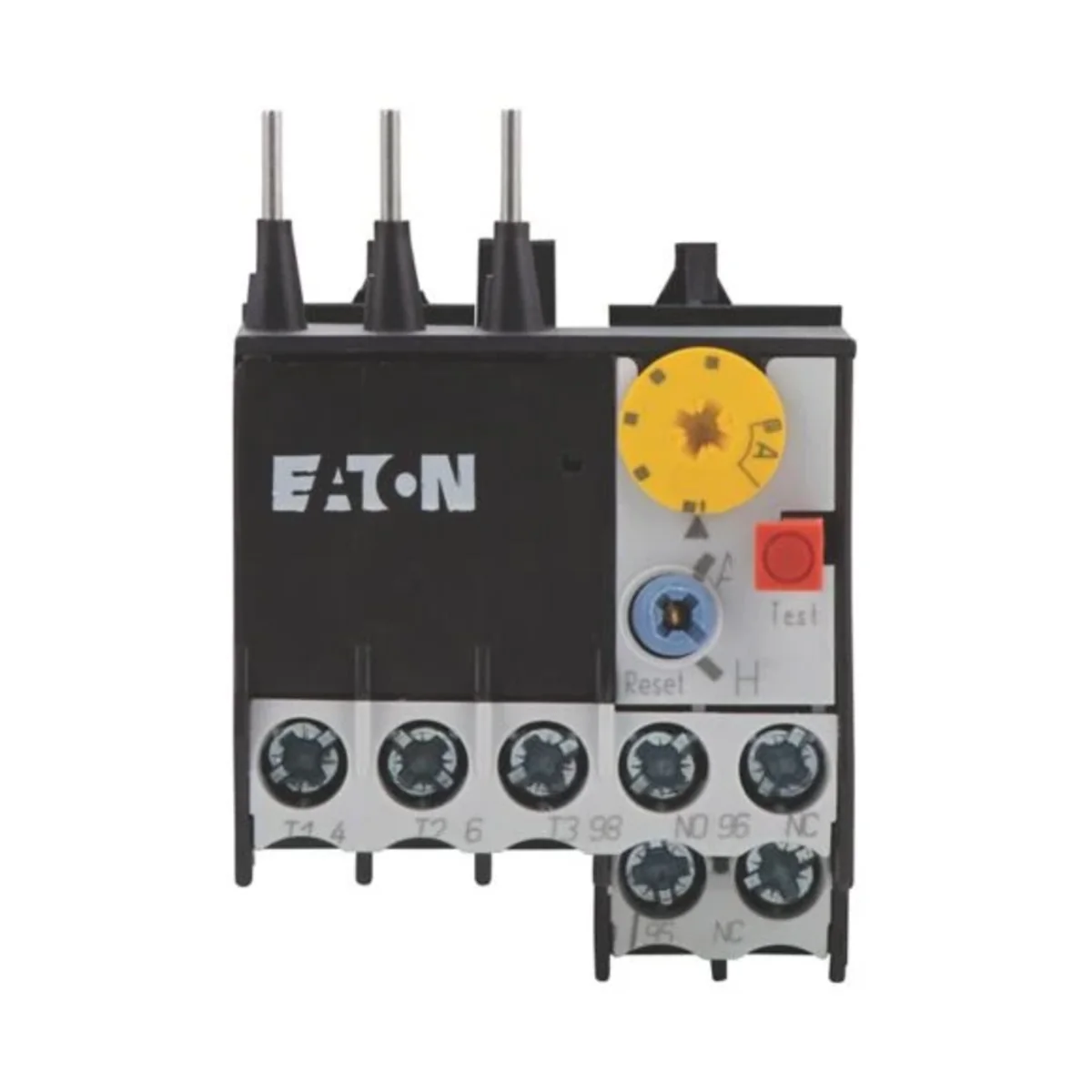

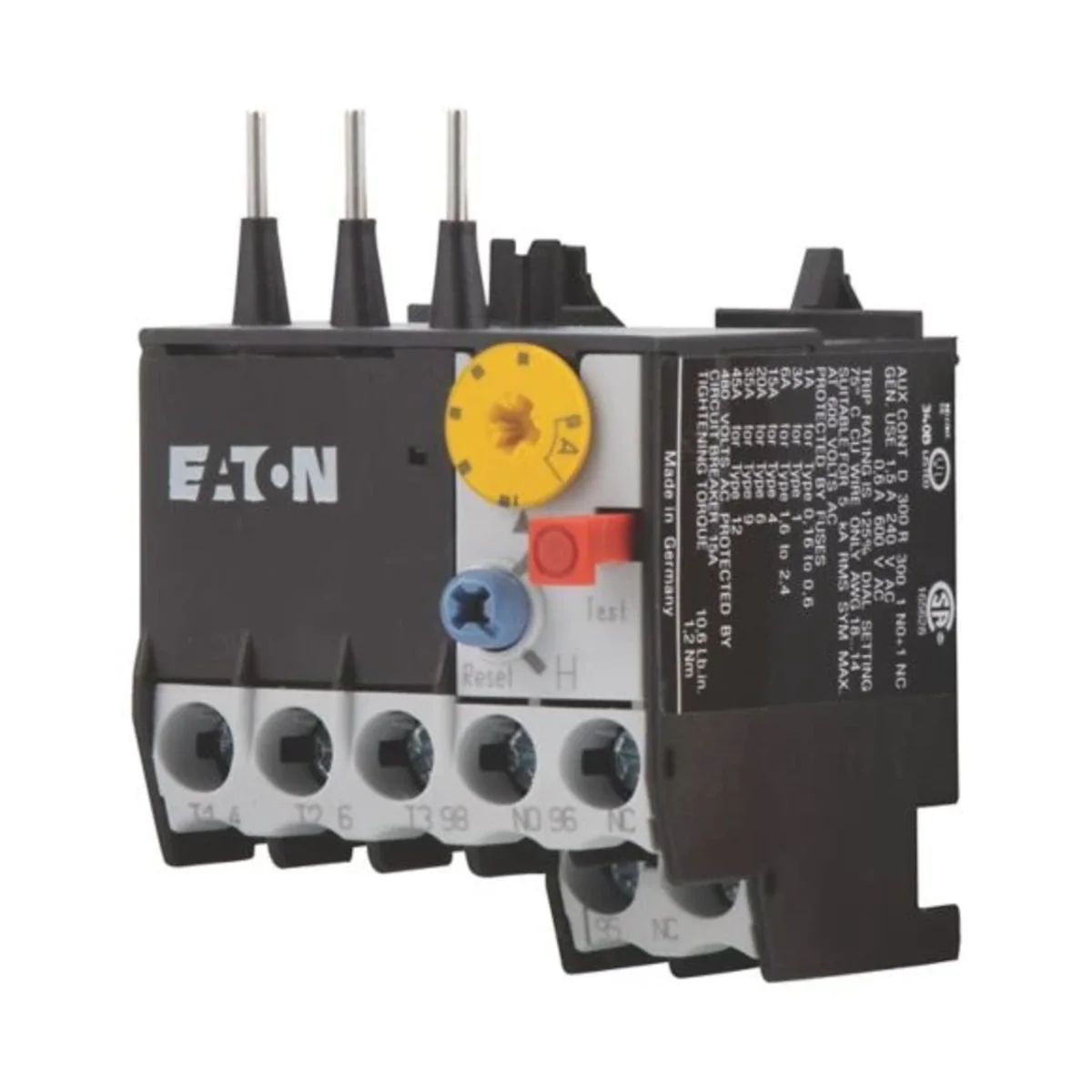

Name: Motor overload relay, 1Z1R, ZE-1.0
Brand: EATON
SKU: APN041MOEL
Price: 58.67 PLN

Overload release: release class 10 A
Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protecting Eex engines

Other technical data

Adjustable current range

0.6 ... 1 A
Mounting method

Direct attachment
Number of auxiliary contacts as normally closed contact

1
Number of auxiliary contacts as change-over contact

0
Reset function input

No
Reset function push-button

Yes

Max. rated operation voltage Ue

690 V
Type of electrical connection of main circuit

Screw connection
Number of auxiliary contacts as normally open contact

1
Release class

CLASS 10 A
Reset function automatic

Yes

A kind of package	Skrzynia
Quantity	1 pcs.
Weight (kg)	0,091
Volume (m3)	0,000
Width (m)	0,047
Length (m)	0,060
Depth (m)	0,067

Motor overload relay, 1Z1R, ZE-1.0 014376

Product description

Technical data

Other technical data
