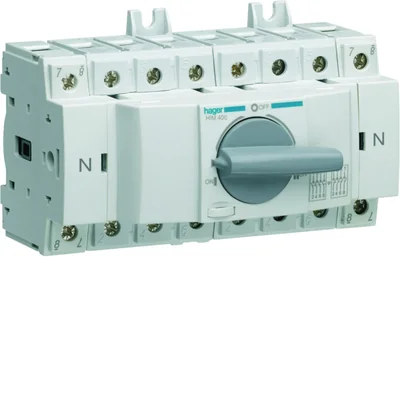

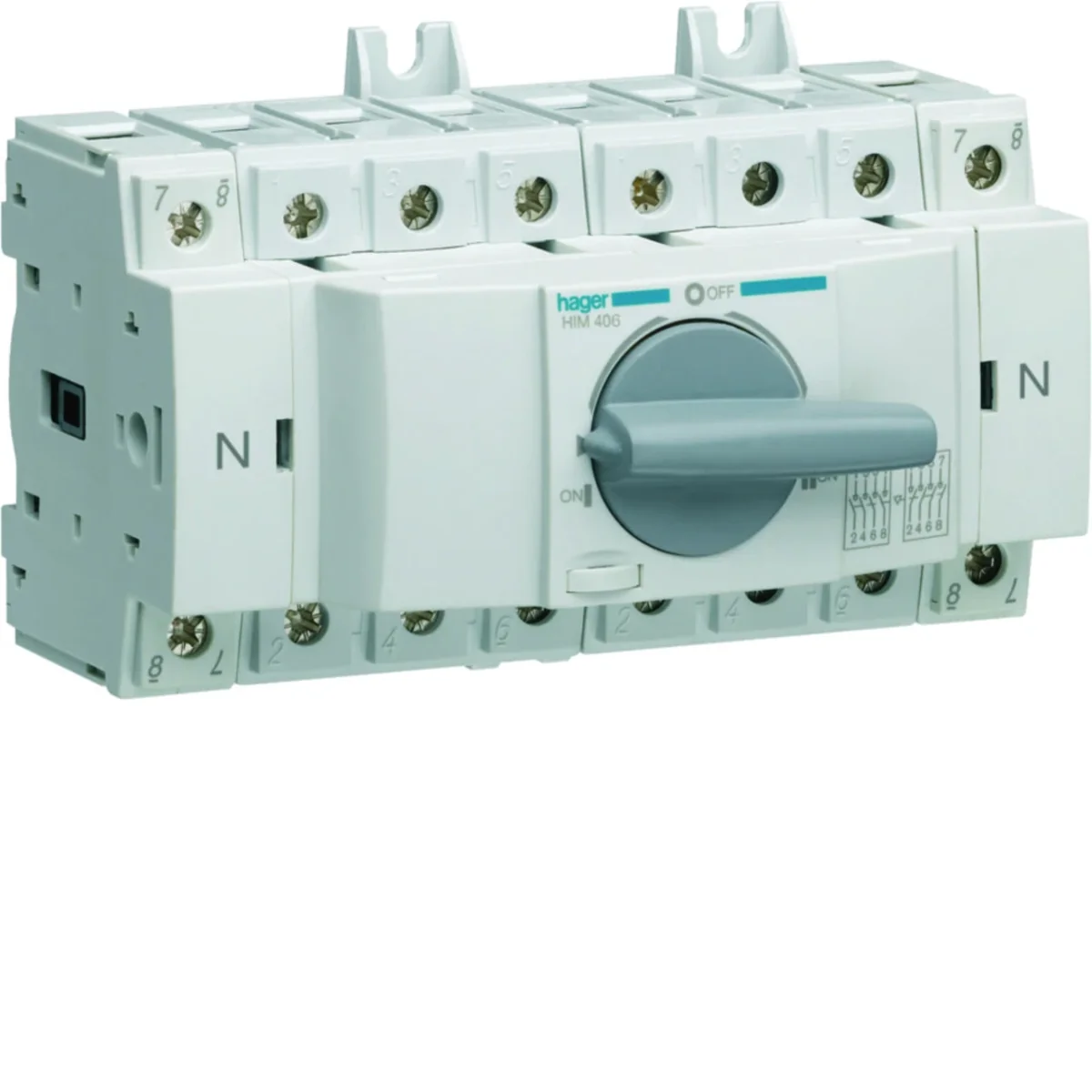

Modular switch I-O-II 4x63A HIM406
Índice local:
ALI145HAGE
Número de catálogo:
HIM406
Código EAN:
3250613140564
Precio:
954,54 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
Modular HIM switches up to 80 A.
Datos técnicos
-
Number of poles4
-
PKWIU27.12.22.0
-
Rated current [A]63
Otros datos técnicos
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu63 A
-
Rated permanent current at AC-21, 400 V63 A
-
Rated operation power at AC-23, 400 V28 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (IP), front sideIP20
-
Width140 mm
-
Depth89 mm
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V63 A
-
Rated short-time withstand current lcw1.5 kA
-
Switching power at 400 V41 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
With pre-assembled cablingNo
-
Degree of protection (NEMA)Other
-
Height76 mm
-
Width in number of modular spacings8
Detalles del fabricante
-
FabricanteHager Electro S.A.S.
-
DirecciónFR 67215 Obernai 123 boulevard d’Europe Francja
Empaquetado a granel
| una especie de paquete | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Cantidad | 1 uds. | 9 uds. | 360 uds. | 1 uds. | 9 uds. | 360 uds. |
| Peso (kg) | 0,820 | 7,745 | 334,800 | 0,820 | 7,745 | 334,800 |
| Ancho (m) | 0,110 | 0,280 | 0,800 | 0,110 | 0,280 | 0,800 |
| Longitud (m) | 0,090 | 0,180 | 1,050 | 0,090 | 0,180 | 1,050 |
| Profundidad (m) | 0,160 | 0,360 | 1,200 | 0,160 | 0,360 | 1,200 |
