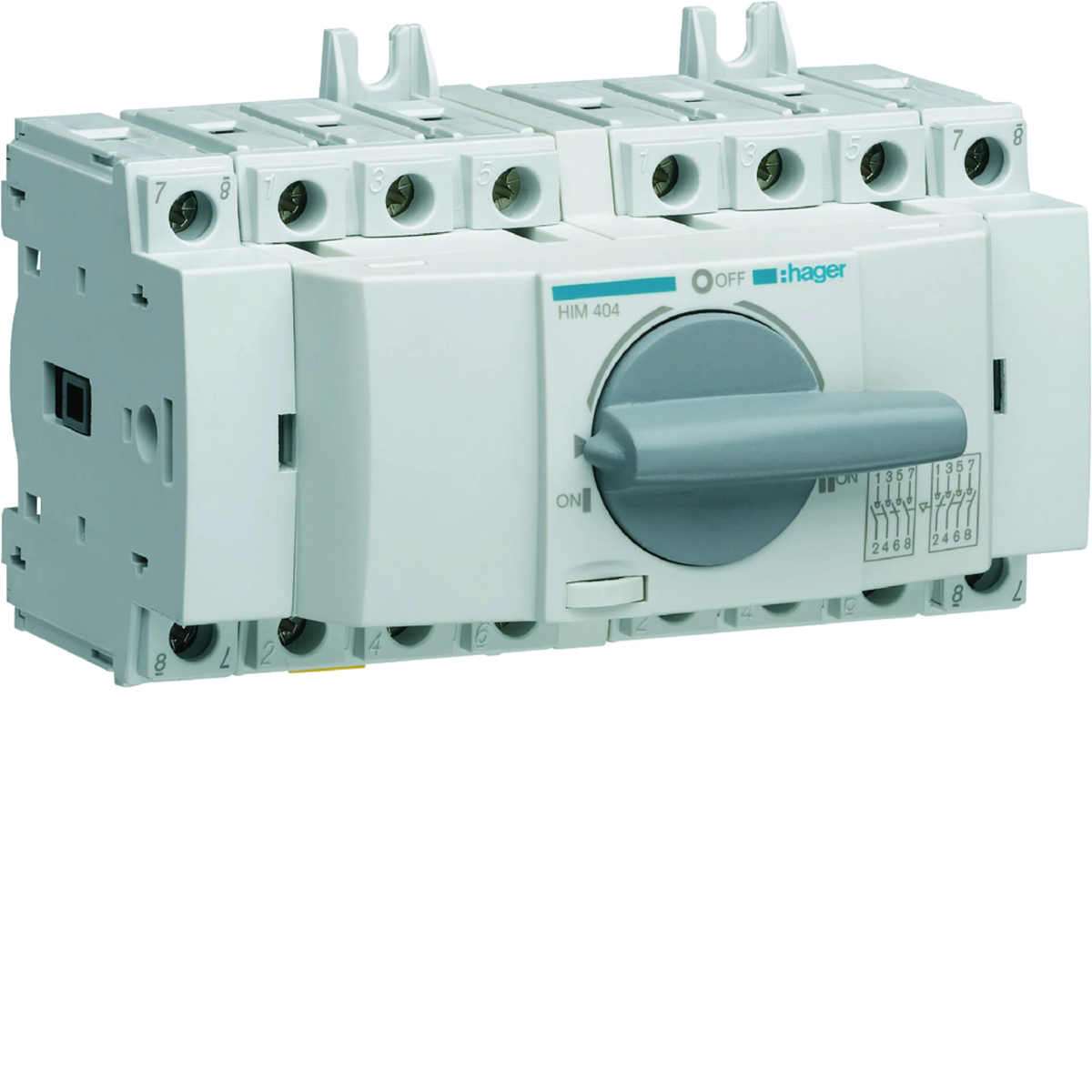

Modular switch I-O-II 4x40A HIM404
local index:
ALI120HAGE
Catalog No:
HIM404
EAN code:
3250613140557
Price:
205,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular HIM switches up to 80 A.
Technical data
-
Number of poles4
-
PKWIU27.12.22.0
-
Rated current [A]40
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu40 A
-
Rated permanent current at AC-21, 400 V40 A
-
Rated operation power at AC-23, 400 V18 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V40 A
-
Rated short-time withstand current lcw1.26 kA
-
Switching power at 400 V26 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 9 pcs. | 360 pcs. |
| Weight (kg) | 0,600 | 0,613 | 5,890 | 258,600 |
| Width (m) | 0,110 | 0,113 | 0,290 | 0,800 |
| Length (m) | 0,094 | 0,086 | 0,185 | 1,050 |
| Depth (m) | 0,127 | 0,160 | 0,375 | 1,200 |
