Modular switch disconnector with signal lamp 1P 16A 230VAC SBB116

Name: Modular switch disconnector with signal lamp 1P 16A 230VAC
Brand: HAGER
SKU: ALB044HAGE
Price: 13.01 PLN

local index:

ALB044HAGE

Catalog No:

SBB116

EAN code:

3250615511676

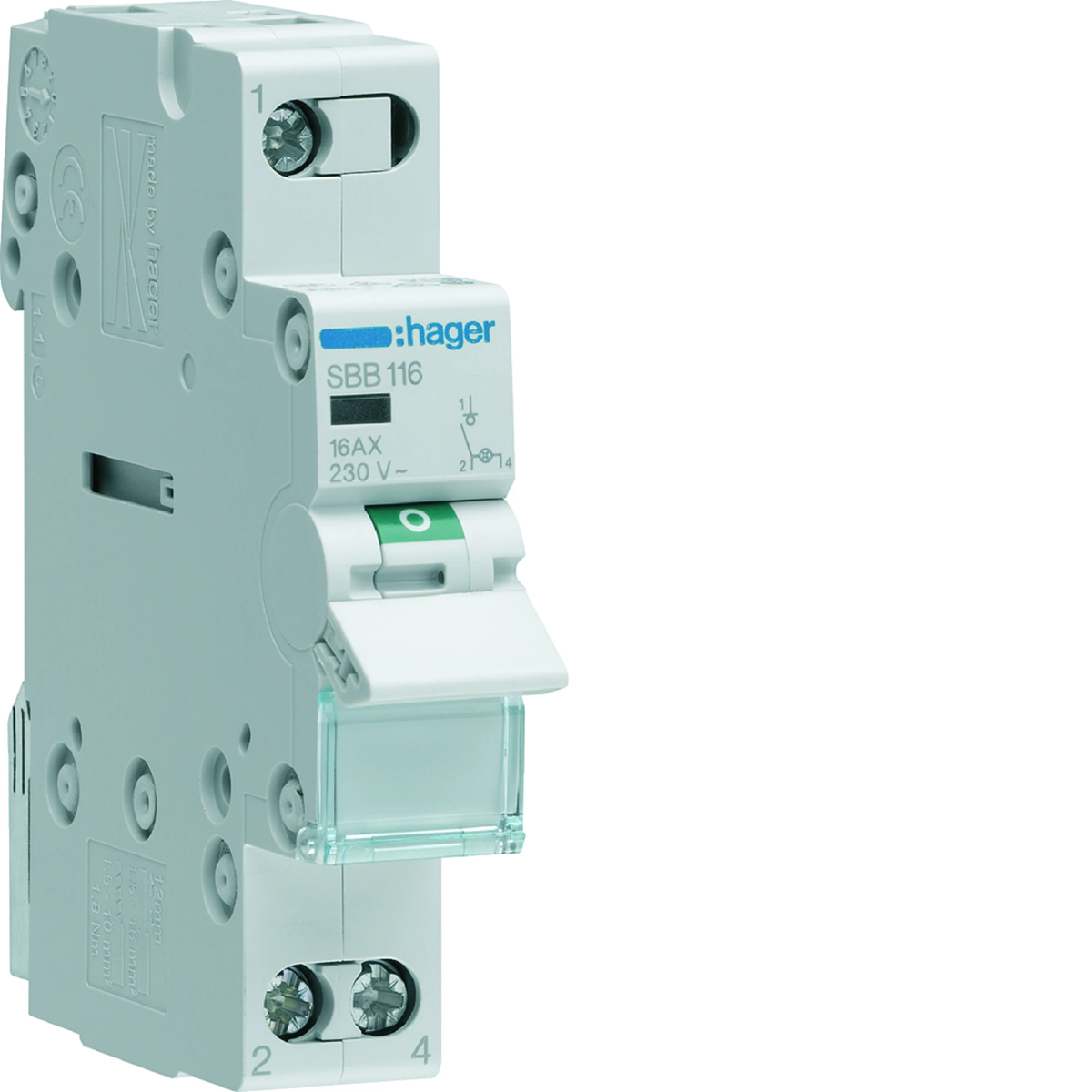

Modular switch disconnector with signal lamp 1P 16A 230VAC

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 68

Number of poles: 1

See full description

Price:

13,01 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

For disconnecting all types of circuits. Compliance with: PN-EN 60943-3 for the entire range and PN-EN 60669-1 for the range from 16 A to 63 A.
Characteristics
All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.
Specifications
Utilization category AC22A
230V / 400V
Ie: 16A to 32A size 1.
Connection terminals:
16 mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - stranded
It is not possible to use shunt, undervoltage and overvoltage releases of the MZ2xx series.

Technical data

Rated frequency [Hz]

50/60
Number of poles

1
Rated current [A]

16
Width [mm]

17.5
Height [mm]

83
Rated impulse voltage [kV]

4
Number of modules

1
PKWIU

27.33.11.0

Depth [mm]

68
Rated insulation voltage [V]

440
Power dissipation [W]

0.5
Working temperature [°C]

-20 to 50
Mechanical durability (number of cycles)

200000
Connection type

With a screw
AC rated voltage [V]

230

Other technical data

Switching function

Off switch with control lamp
Number of contacts as normally closed contact

0
Number of poles

1
Rated voltage

230 V
Rated switching capacity

0.338 kA
Voltage type

AC
Colour calotte

Other
Lamp socket

Other
Width in number of modular spacings

1
Degree of protection (IP)

IP20

Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Rated current

16 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.24 kA
With signal lamp

Yes
Lamp type

LED
Max. lamp power

0 W
Built-in depth

68 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,058	0,075	8,540	229,960
Width (m)	0,018	0,082	0,315	0,800
Length (m)	0,083	0,018	0,216	1,014
Depth (m)	0,073	0,094	0,365	1,200
