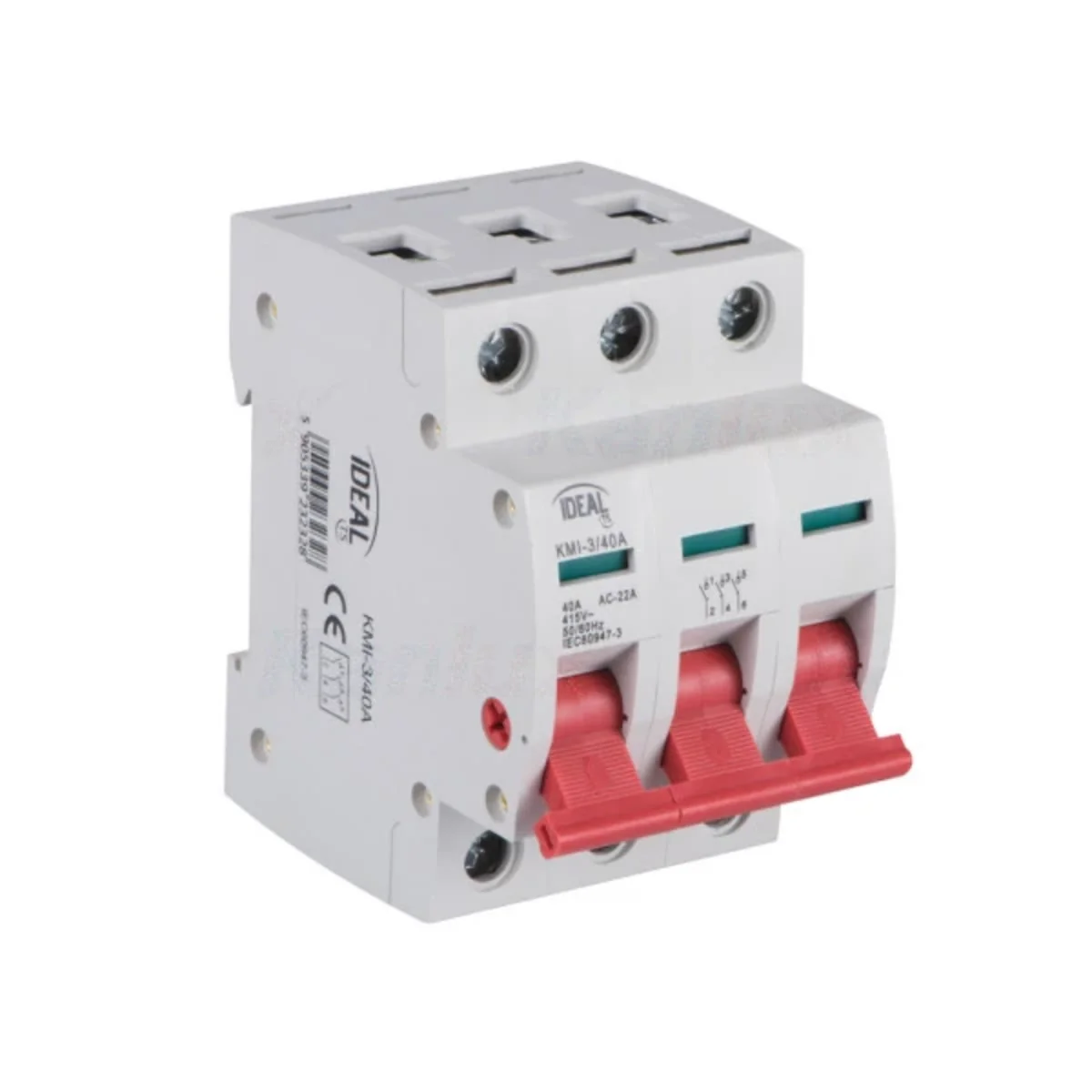

Modular switch disconnector KMI-3/40A AC-22A IP20 23232

local index:
ALI005KANL
Catalog No:
23232
EAN code:
5905339232328
Manufacturer: KANLUX
Rated frequency [Hz]: 50/60
Length [mm]: 76
Work category: AC-22A
Price:
13,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch disconnector is used to disconnect circuits loaded with rated current

Compliant with PN-EN 60947-3

Technical data

  • Rated frequency [Hz]
    50/60
  • Work category
    AC-22A
  • Color
    White
  • Rated voltage [V]
    230
  • Rated short-circuit current [A]
    6000
  • Width [mm]
    52.5
  • Number of modules
    3
  • Length [mm]
    76
  • Energy limitation class
    3
  • Installation
    On the TH35 rail
  • Rated current [A]
    40
  • Level of security
    IP20
  • Height [mm]
    82
  • PKWIU
    27.12.31.0
