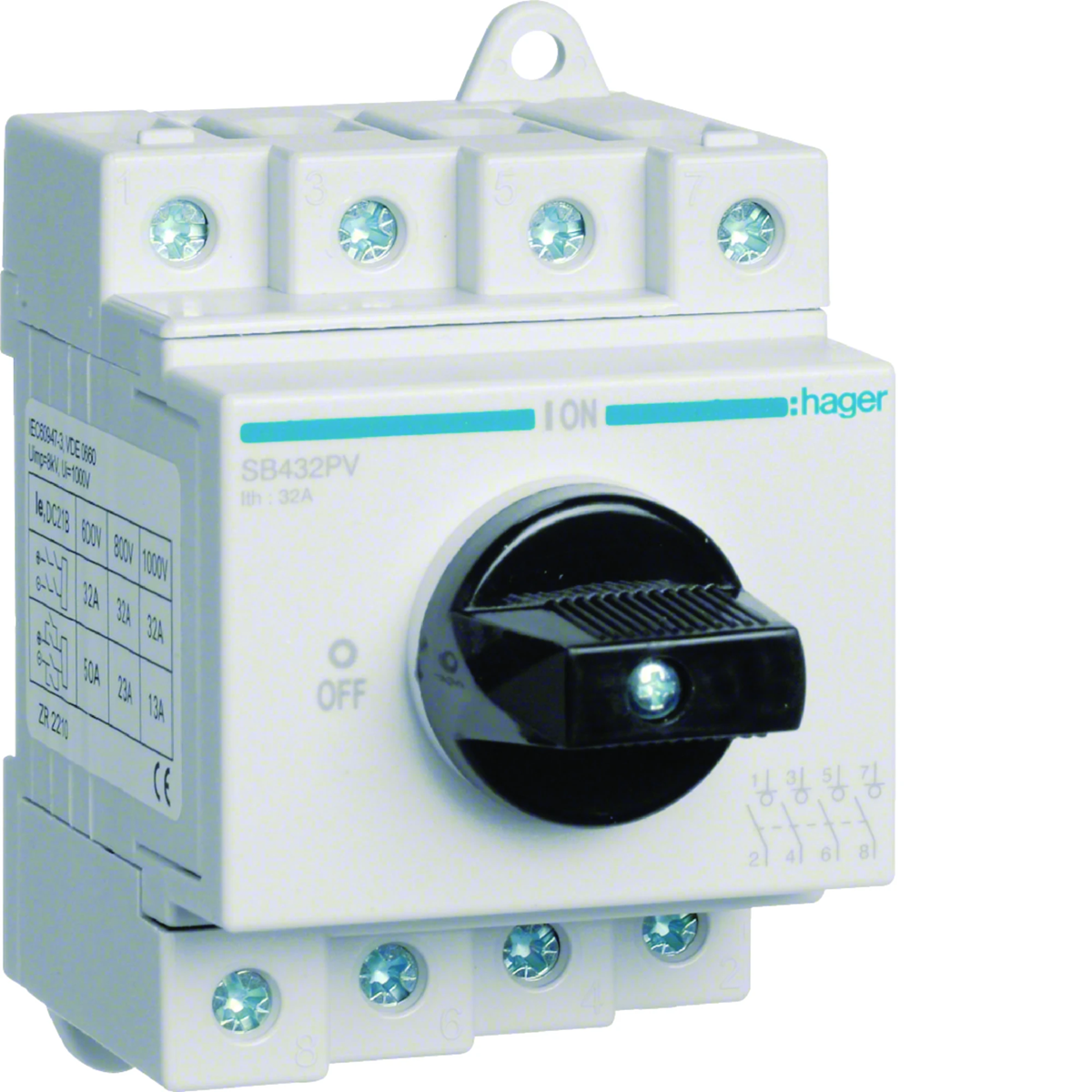

Modular switch disconnector for photovoltaic systems, 4P 32 A 1000 V d.c. SB432PV
local index:
ALB150HAGE
Catalog No:
SB432PV
EAN code:
3250615521392
Price:
69,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular switch disconnector for photovoltaic systems, 4P 32 A 1000 V d.c.
Technical data
-
Rated frequency [Hz]60
-
Number of poles4
-
DC operating voltage [V]1000
-
Rated current [A]32
-
power loss [W]6.9
-
Connection typeWith a screw
-
Mechanical durability (number of cycles)10000
-
Rated switching voltage [V]1000
-
storage temperature [°C]from -50 to 90
-
Wire cross-section (cord) [mm²]10
-
PKWIU27.33.11.0
-
Depth [mm]72
-
Tightening torque [Nm]2.9
-
Rated insulation voltage [V]1000
-
Level of securityIP20
-
Power loss per pole [W]1.7
-
Height [mm]85
-
Operating temperature range [°C]from -40 to 65
-
Number of modules3.5
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]16
Other technical data
-
Version as main switchNo
-
Version as safety switchYes
-
Version as reversing switchNo
-
Rated permanent current Iu32 A
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableNo
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 30 pcs. | 720 pcs. |
| Weight (kg) | 0,200 | 0,240 | 7,795 | 210,080 |
| Width (m) | 0,060 | 0,097 | 0,321 | 0,800 |
| Length (m) | 0,090 | 0,069 | 0,219 | 1,026 |
| Depth (m) | 0,085 | 0,104 | 0,367 | 1,200 |
