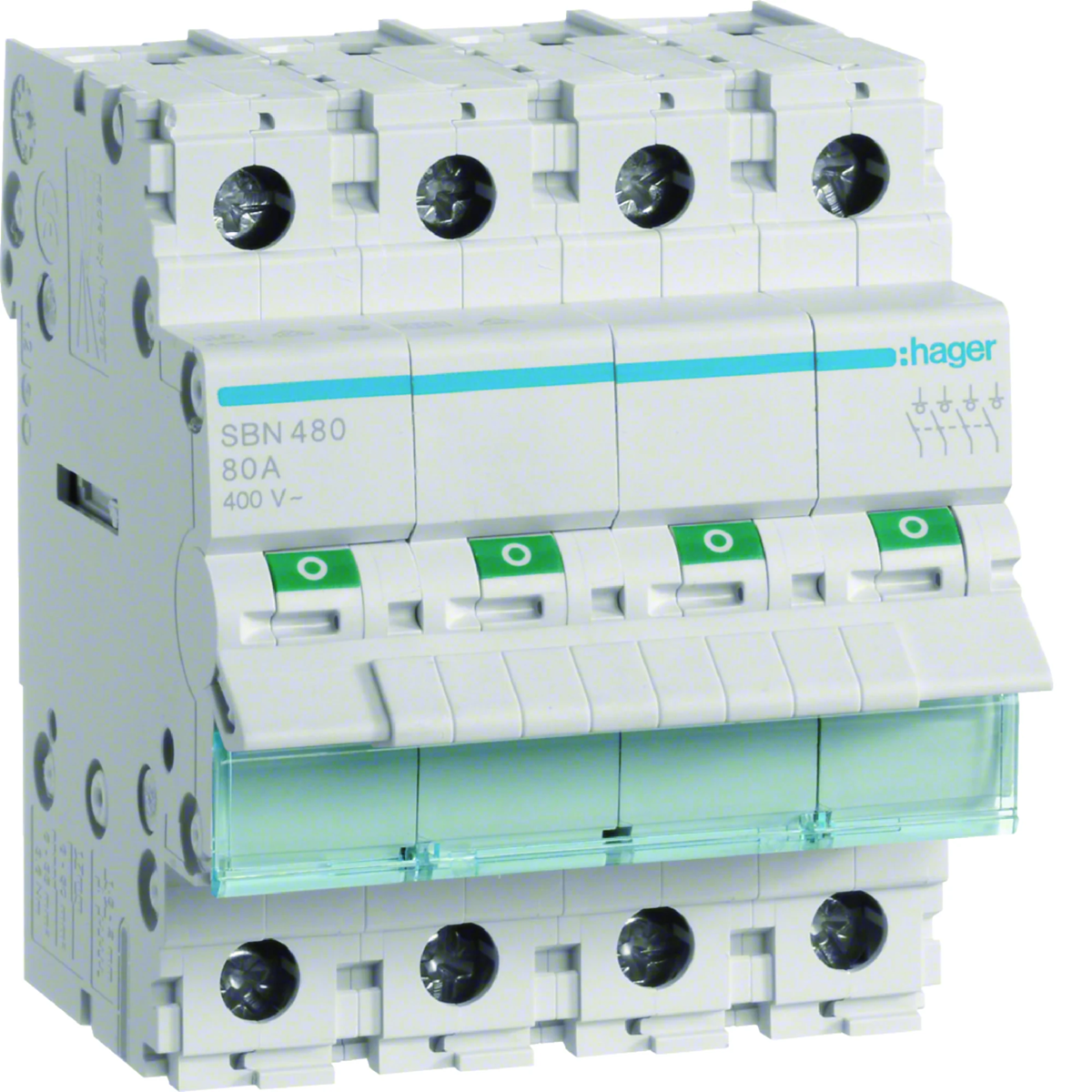

Modular switch disconnector 4P 80A 400VAC SBN480

local index:
ALI088HAGE
Catalog No:
SBN480
EAN code:
3250615510273
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 68
Number of poles: 4
Price:
38,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For disconnecting all types of circuits. Compliance with: PN-EN 60943-3 for the entire range and PN-EN 60669-1 for the range from 16 A to 63 A.
Characteristics
All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.
Specifications
Utilization category AC22A
230V / 400V
Ie: 16A to 32A size 1.
Connection terminals:
16 mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - stranded
It is not possible to use shunt releases, undervoltage and overvoltage releases of the MZ2xx series.

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of poles
    4
  • Rated current [A]
    80
  • Width [mm]
    70
  • Height [mm]
    83
  • Rated impulse voltage [kV]
    6
  • Number of modules
    4
  • PKWIU
    27.33.11.0
  • Depth [mm]
    68
  • Rated insulation voltage [V]
    440
  • Power dissipation [W]
    1.8
  • Working temperature [°C]
    -20 to 50
  • Mechanical durability (number of cycles)
    40000
  • Connection type
    With a screw
  • AC rated voltage [V]
    230/400

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    4
  • Rated voltage
    400 V
  • Rated switching capacity
    1.354 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    69 mm
  • Number of contacts as normally open contact
    4
  • Number of contacts as change-over contact
    0
  • Rated current
    80 A
  • Min. rated voltage
    400 V
  • Short-circuit breaking capacity (Icw)
    0.96 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,311 0,325 12,135 314,240
Width (m) 0,070 0,080 0,315 0,800
Length (m) 0,083 0,080 0,220 1,090
Depth (m) 0,074 0,095 0,365 1,200
