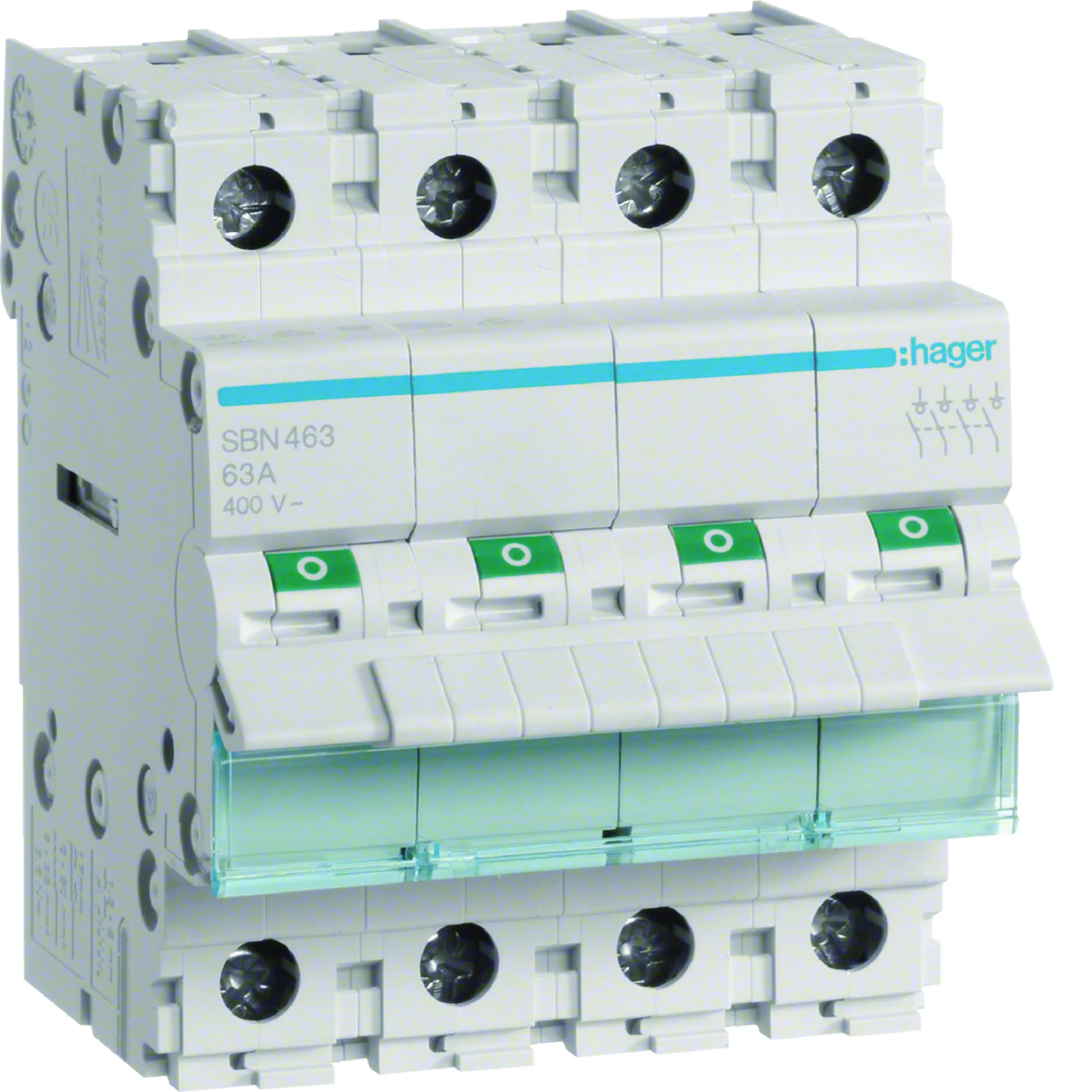

Modular switch disconnector 4P 63A SBN463

Name: Modular switch disconnector 4P 63A
Brand: HAGER
SKU: ALI017HAGE
Price: 158.37 PLN
Availability: InStock

Index local:

ALI017HAGE

Numéro de catalogue:

SBN463

Code EAN:

3250615510235

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Depth [mm]: 69

Number of modules: 4

Number of poles: 4

Voir la description complète

Prix:

158,37 zł

gross / pcs.

(y compris la TVA 23%)

Accessible 73 pcs.

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the operating lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Données techniques

Depth [mm]

69
Number of poles

4
Rated voltage [V]

230
Rated current [A]

63
Width [mm]

70
Number of modules

4

Number of modules

4
Surge voltage [kV]

6000
Rated insulation voltage [V]

440
Power dissipation [W]

9
Height [mm]

83
PKWIU

27.33.11.0

Autres données techniques

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

4
Rated voltage

400 V
Rated switching capacity

1.332 kA
Voltage type

AC
Colour calotte

Grey
Built-in depth

69 mm
Imprint/indication

Other

Number of contacts as normally open contact

4
Number of contacts as change-over contact

0
Rated current

63 A
Min. rated voltage

400 V
Short-circuit breaking capacity (Icw)

0.94 kA
With signal lamp

No
Width in number of modular spacings

4
Degree of protection (IP)

IP20
Forced segregation according to DIN VDE 0113

No
