Modular switch disconnector 4P 125A SBN499

Name: Modular switch disconnector 4P 125A
Brand: HAGER
SKU: ALI013HAGE
Price: 40.71 PLN

local index:

ALI013HAGE

Catalog No:

SBN499

EAN code:

3250615510037

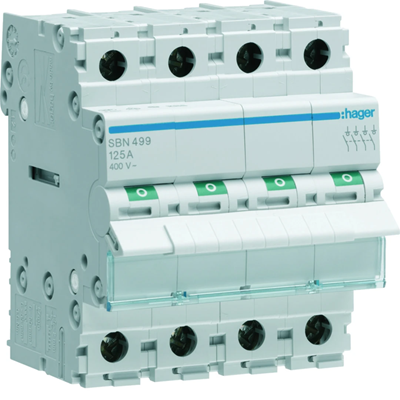

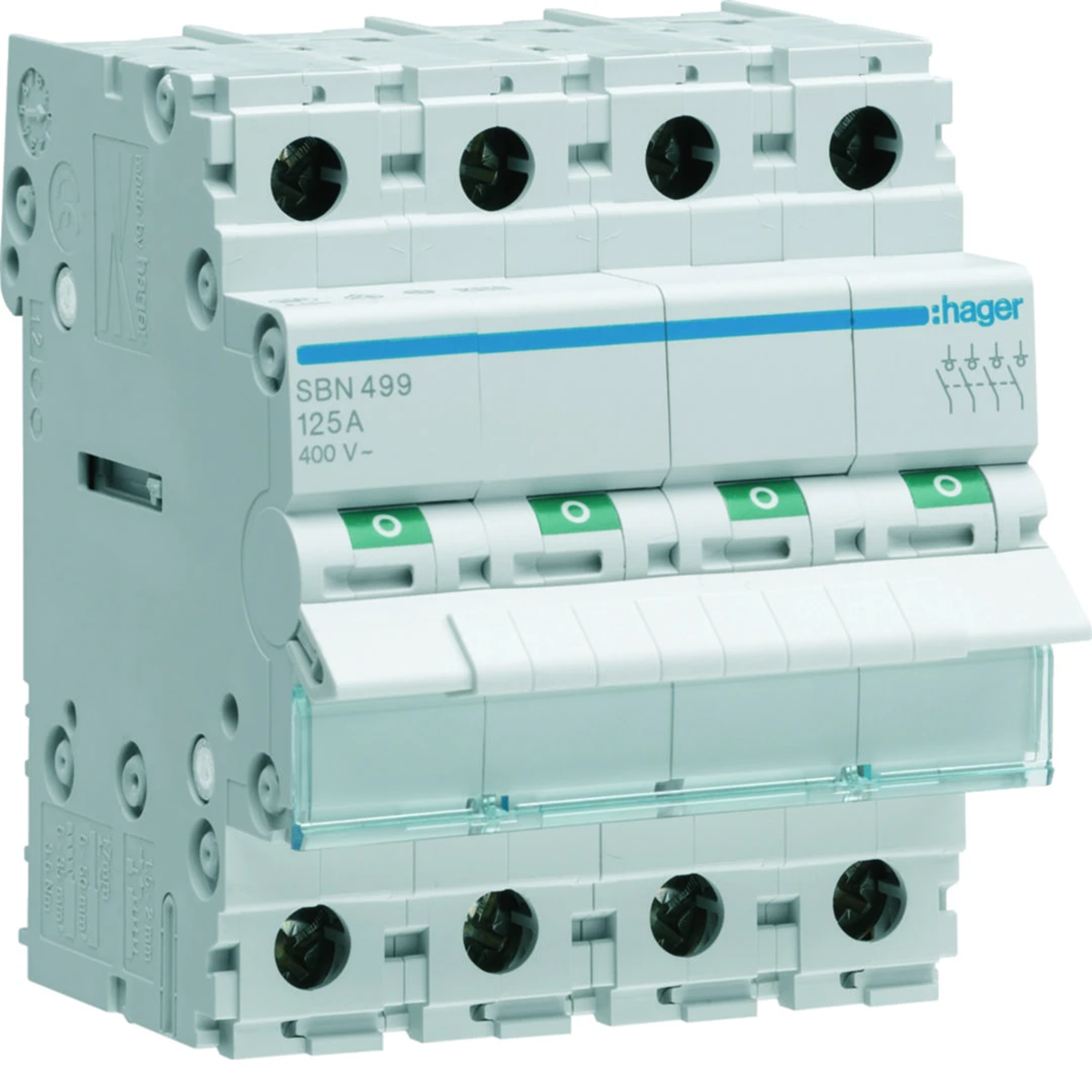

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 72

Number of modules: 4

Number of poles: 4

See full description

Price:

40,71 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the operating lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

72
Number of poles

4
Width [mm]

71
Number of modules

4

Number of modules

4
Rated voltage [V]

400
Height [mm]

85
PKWIU

27.33.11.0

Other technical data

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

4
Rated voltage

400 V
Rated switching capacity

2.115 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

69 mm
Imprint/indication

Other

Number of contacts as normally open contact

4
Number of contacts as change-over contact

0
Rated current

125 A
Min. rated voltage

400 V
Short-circuit breaking capacity (Icw)

1.5 kA
With signal lamp

No
Width in number of modular spacings

4
Degree of protection (IP)

IP20
Forced segregation according to DIN VDE 0113

No

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	3 pcs.	36 pcs.	864 pcs.	3 pcs.	36 pcs.	864 pcs.
Weight (kg)	0,930	11,230	269,560	0,930	11,230	269,560
Width (m)	0,100	0,310	0,800	0,100	0,310	0,800
Length (m)	0,080	0,240	1,050	0,080	0,240	1,050
Depth (m)	0,220	0,360	1,200	0,220	0,360	1,200
