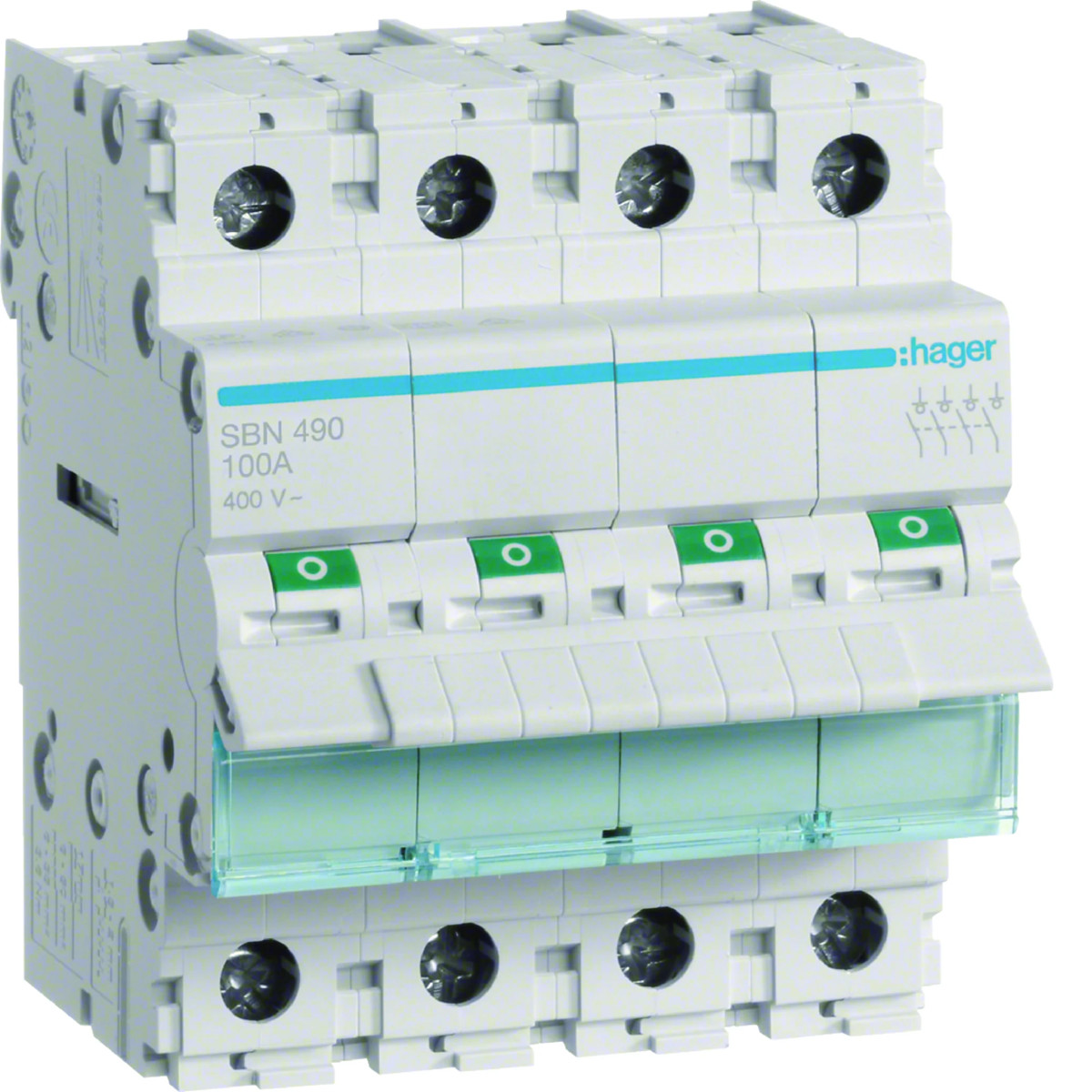

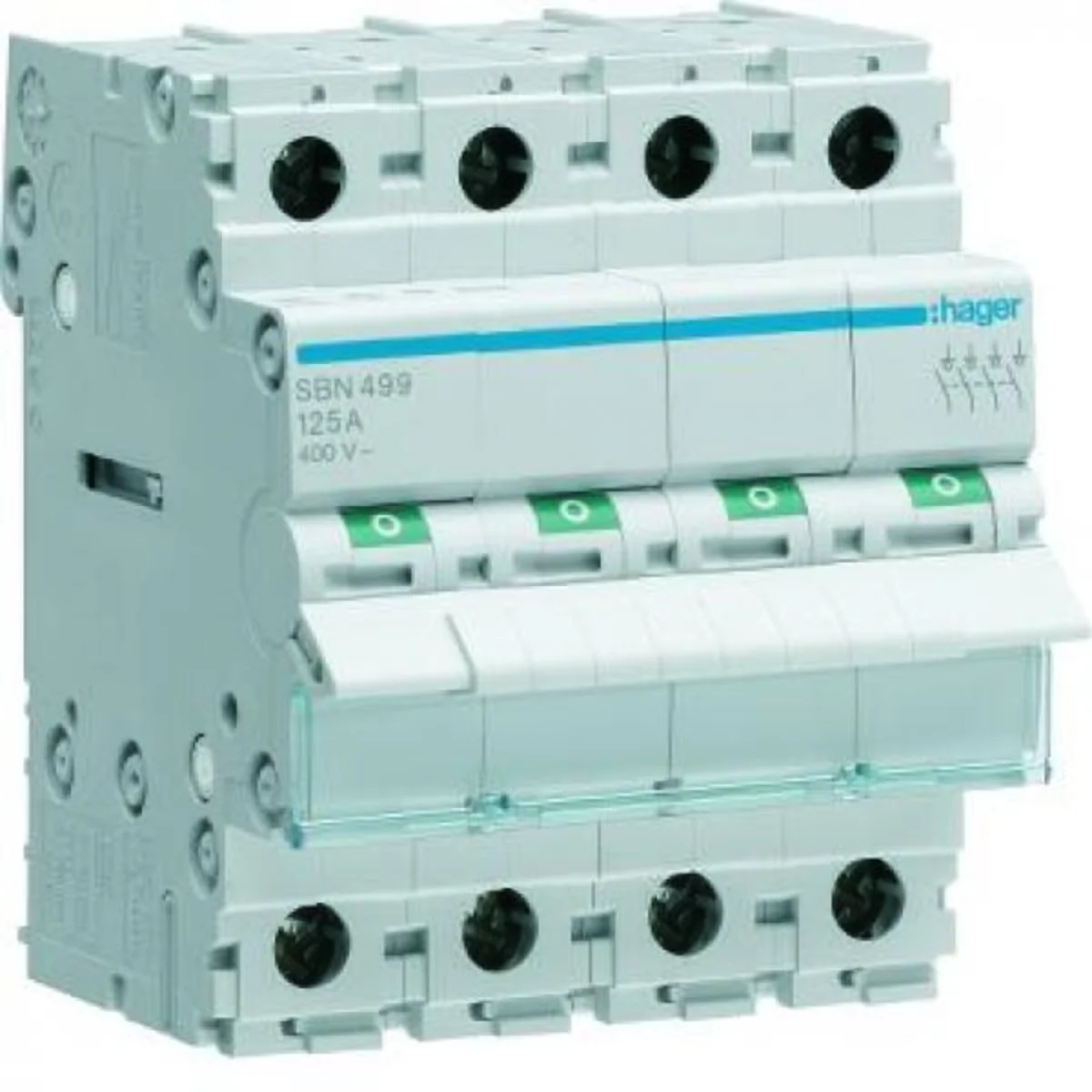

Modular switch disconnector 4P 100A SBN490

local index:
ALI001HAGE
Catalog No:
SBN490
EAN code:
3250615510310
Manufacturer: HAGER
Depth [mm]: 69
Number of modules: 4
Number of poles: 4
Price:
35,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 34 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - pull cord
Not possible to use
shunt,
undervoltage and overvoltage
MZ2xx series.

Technical data

  • Depth [mm]
    69
  • Number of poles
    4
  • Rated voltage [V]
    230
  • Power dissipation [W]
    22
  • Height [mm]
    83
  • PKWIU
    27.33.11.0
  • Number of modules
    4
  • Surge voltage [kV]
    6000
  • Rated current [A]
    100
  • Width [mm]
    70
  • Number of modules
    4

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    4
  • Rated voltage
    400 V
  • Rated switching capacity
    1.692 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    69 mm
  • Number of contacts as normally open contact
    4
  • Number of contacts as change-over contact
    0
  • Rated current
    100 A
  • Min. rated voltage
    400 V
  • Short-circuit breaking capacity (Icw)
    1.2 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,311 0,993 12,350 319,400
Width (m) 0,070 0,098 0,315 0,800
Length (m) 0,083 0,084 0,232 1,078
Depth (m) 0,074 0,227 0,362 1,200
