Modular switch disconnector, 3P 32A SBN332
local index:
ALI051HAGE
Catalog No:
SBN332
EAN code:
3250615510143
Price:
25,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

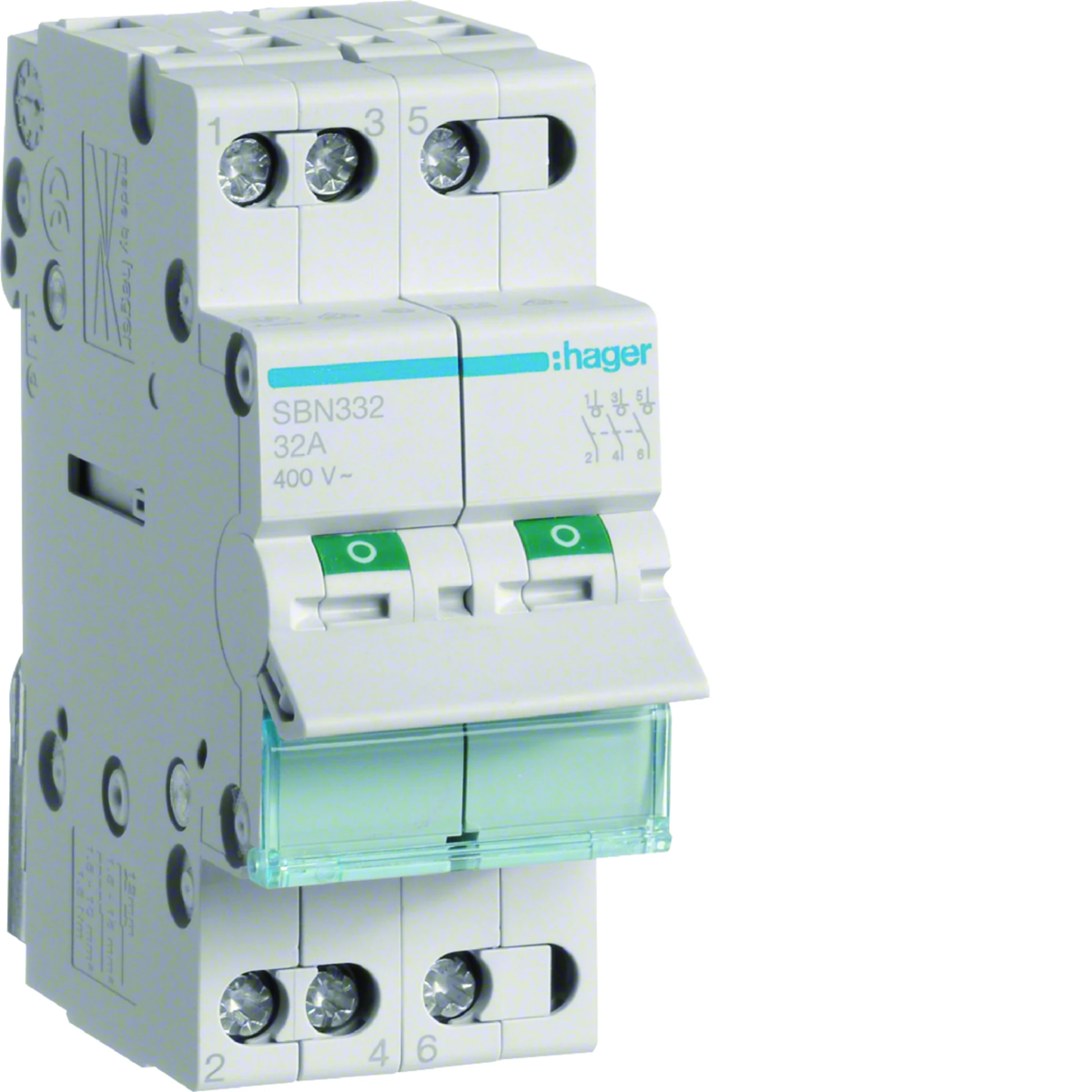

Modular switch disconnector, 3P 32A
Technical data
-
Depth [mm]68
-
Number of poles3
-
Rated insulation voltage [V]440
-
power loss [W]4
-
Height [mm]83
-
Number of modules2
-
Number of modules2
-
Surge voltage [kV]4000
-
Rated current [A]32
-
Width [mm]35
-
Mechanical durability (number of cycles)200000
-
PKWIU27.33.11.0
Other technical data
-
Switching functionOff switch
-
Number of contacts as normally closed contact0
-
Number of poles3
-
Rated voltage400 V
-
Rated switching capacity0.677 kA
-
Voltage typeAC
-
Max. lamp power0 W
-
Built-in depth68 mm
-
Number of contacts as normally open contact3
-
Number of contacts as change-over contact0
-
Rated current32 A
-
Min. rated voltage400 V
-
Short-circuit breaking capacity (Icw)0.48 kA
-
With signal lampNo
-
Width in number of modular spacings2
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 6 pcs. | 72 pcs. | 1728 pcs. | 6 pcs. | 72 pcs. | 1728 pcs. |
| Weight (kg) | 0,820 | 10,260 | 269,240 | 0,820 | 10,260 | 269,240 |
| Width (m) | 0,100 | 0,315 | 0,800 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,080 | 0,235 | 1,050 | 0,080 | 0,235 | 1,050 |
| Depth (m) | 0,225 | 0,360 | 1,200 | 0,225 | 0,360 | 1,200 |
