Modular switch disconnector 1P 63A SBN163

Name: Modular switch disconnector 1P 63A
Brand: HAGER
SKU: ALI114HAGE
Price: 51.66 PLN
Availability: InStock

Index local:

ALI114HAGE

Numéro de catalogue:

SBN163

Code EAN:

3250615510204

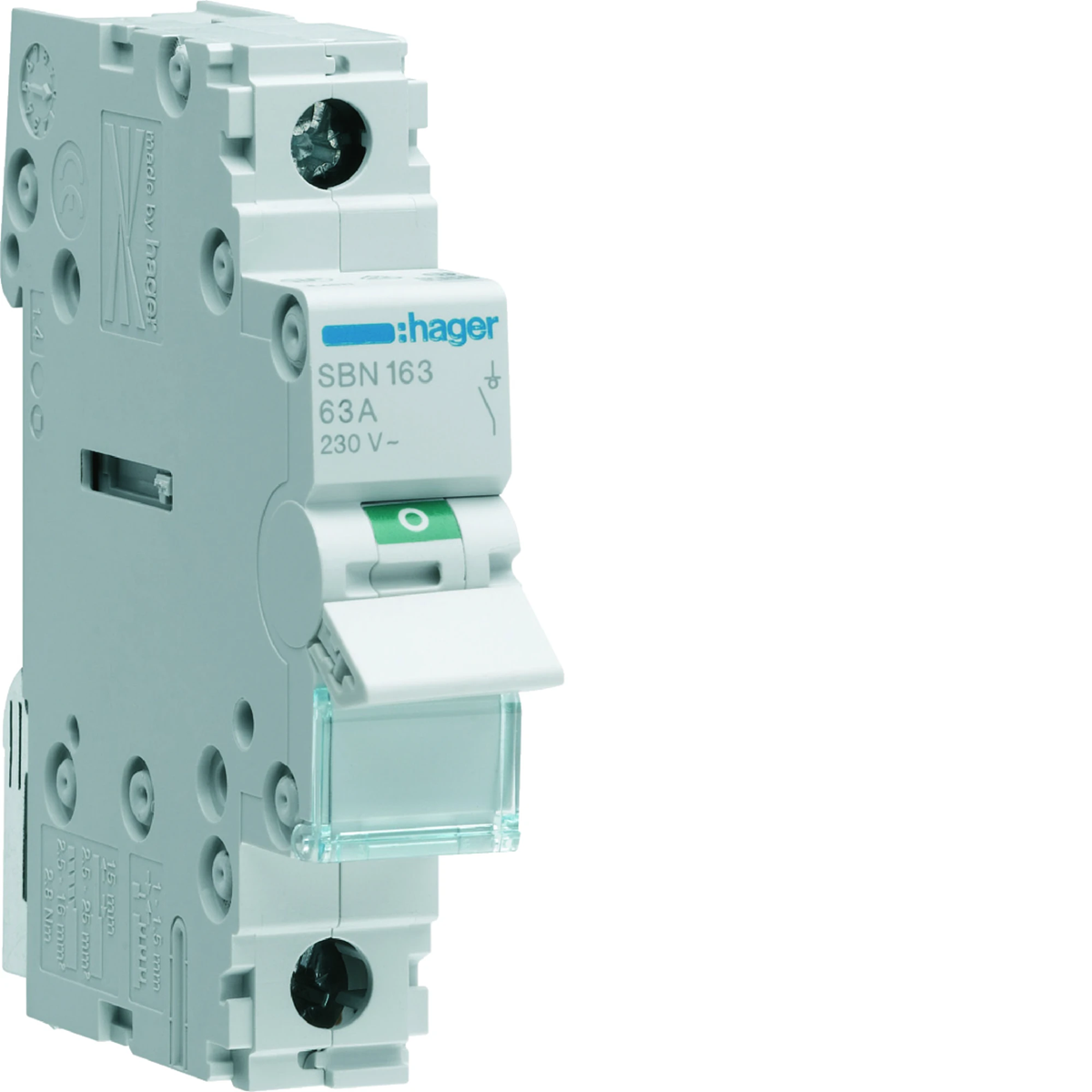

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Depth [mm]: 68

Number of modules: 1

Number of poles: 1

Voir la description complète

Prix:

51,66 zł

gross / pcs.

(y compris la TVA 23%)

Accessible 75 pcs.

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Données techniques

Depth [mm]

68
Number of poles

1
Rated voltage [V]

230
Rated current [A]

63
Width [mm]

17.5
PKWIU

27.33.11.0

Number of modules

1
Surge voltage [kV]

6000
Rated insulation voltage [V]

440
Power dissipation [W]

83
Number of modules

1

Autres données techniques

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

1
Rated voltage

230 V
Rated switching capacity

1.332 kA
Voltage type

AC
Colour calotte

Grey
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Forced segregation according to DIN VDE 0113

No

Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Rated current

63 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.94 kA
With signal lamp

No
Max. lamp power

0 W
Built-in depth

68 mm
Imprint/indication

Other

Détails du fabricant

Producteur

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	12 pcs.	144 pcs.	3456 pcs.
poids (kg)	0,850	10,220	245,370
Largeur (m)	0,090	0,320	0,800
Longueur (m)	0,080	0,230	1,090
Profondeur (m)	0,220	0,370	1,200
