Modular switch disconnector 1P 40A SBN140

Name: Modular switch disconnector 1P 40A
Brand: HAGER
SKU: ALI015HAGE
Price: 11.08 PLN

local index:

ALI015HAGE

Catalog No:

SBN140

EAN code:

3250615510167

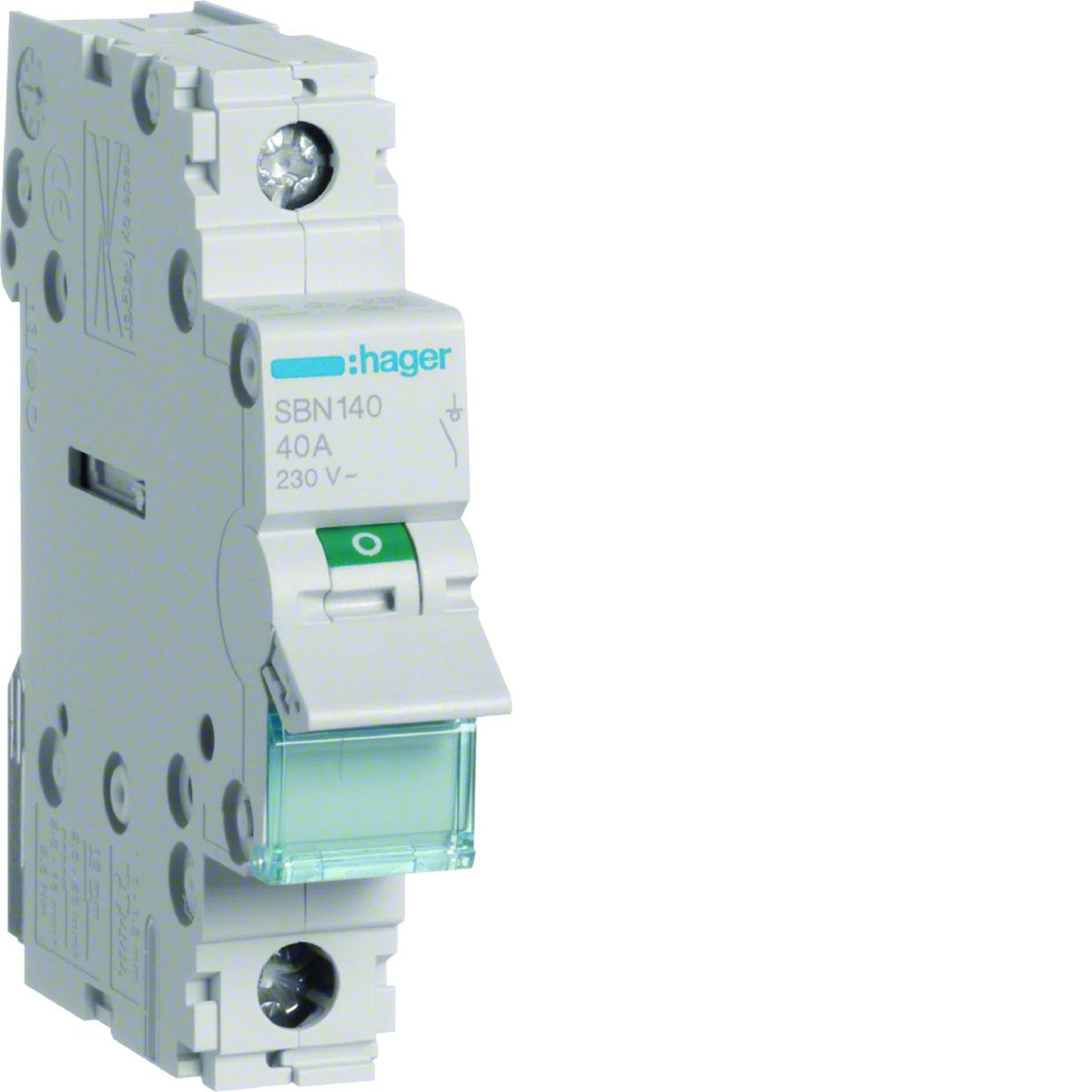

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 68

Number of modules: 1

Number of poles: 1

See full description

Price:

11,08 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the operating lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

68
Number of poles

1
Rated voltage [V]

230
Rated current [A]

40
Width [mm]

17.5
Number of modules

1

Number of modules

1
Surge voltage [kV]

6000
Rated insulation voltage [V]

440
Power dissipation [W]

1
Height [mm]

83
PKWIU

27.33.11.0

Other technical data

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

1
Rated voltage

230 V
Rated switching capacity

0.846 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm

Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Rated current

40 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.6 kA
With signal lamp

No
Width in number of modular spacings

1
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	12 pcs.	144 pcs.	3456 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,915	11,395	296,480	0,915	11,395	296,480
Width (m)	0,095	0,315	0,800	0,095	0,315	0,800
Length (m)	0,085	0,235	1,090	0,085	0,235	1,090
Depth (m)	0,230	0,360	1,200	0,230	0,360	1,200
