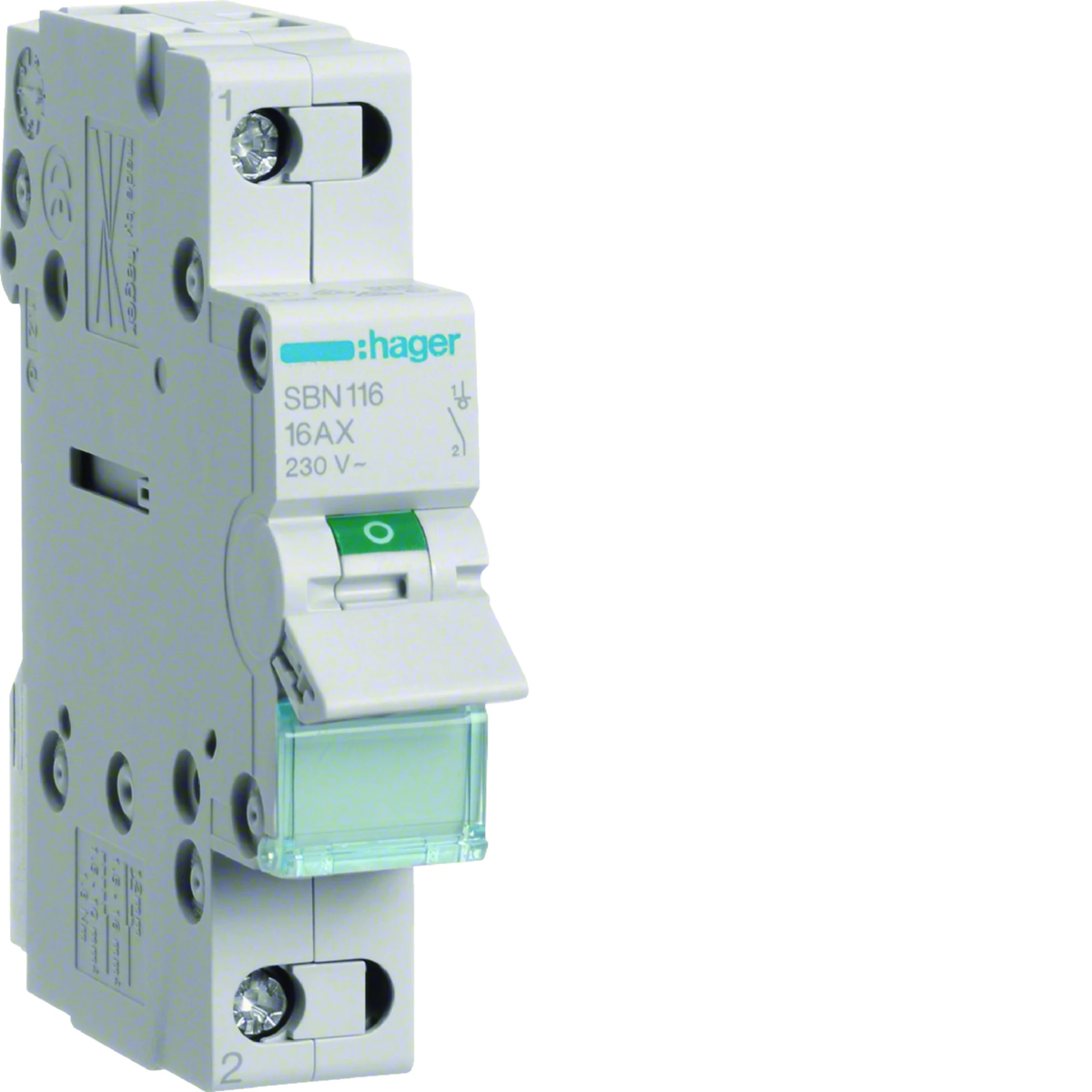

Modular switch disconnector 1P 16A SBN116

Name: Modular switch disconnector 1P 16A
Brand: HAGER
SKU: ALI016HAGE
Price: 8.78 PLN

local index:

ALI016HAGE

Catalog No:

SBN116

EAN code:

3250615510044

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 68

Number of modules: 1

Rated voltage [V]: 230

See full description

Price:

8,78 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Modular switch disconnectors For disconnecting all types of current circuits.
Compliance with:
EN 60943-3 for the entire range and EN 60669-1 for the range from 16 A to 63 A.
Characteristics:
All disconnectors have green/red fields on the operating lever for clear visualization of the disconnector position.
Technical data:
Usage category AC22A 230V/400V
Ie : 16A to 32A size 1.
Connection terminals:
16mm² - wire
10 mm² - stranded
Ie: 32 A to 63 A size 2.
Connection terminals:
25 mm² - wire
16 mm² - stranded
Ie: 63 A to 125 A size 3.
Connection terminals:
50 mm² - wire
35 mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

68
Rated voltage [V]

230
Rated current [A]

16
Height [mm]

83
PKWIU

27.33.11.0

Number of modules

1
Rated insulation voltage [V]

440
Width [mm]

17.5
Number of modules

1

Other technical data

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

1
Rated voltage

230 V
Rated switching capacity

0.338 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm

Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Rated current

16 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.24 kA
With signal lamp

No
Width in number of modular spacings

1
Degree of protection (IP)

IP20

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,058	0,767	9,620	253,880
Width (m)	0,018	0,100	0,323	0,800
Length (m)	0,083	0,082	0,234	1,086
Depth (m)	0,073	0,228	0,365	1,200
