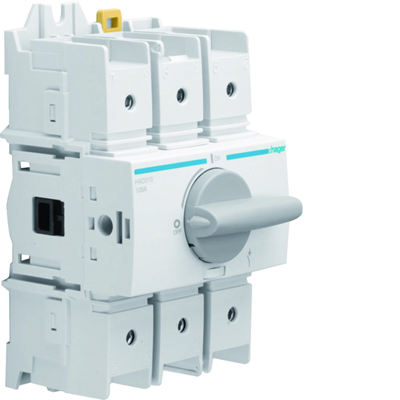

Modular rotary handle switch disconnector 3 pole 100A size 3 HAD310
local index:
ALB043HAGE
Catalog No:
HAD310
EAN code:
3250613140434
Price:
85,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular rotary handle switch disconnector 3 pole 100A size 3
Technical data
-
Rated frequency [Hz]50
-
Rated insulation voltage [V]800
-
Power dissipation [W]12.9
-
Rated impulse voltage [kV]8
-
Number of modules4.45
-
PKWIU27.12.22.0
-
Number of poles3
-
Rated current [A]100
-
Power loss per pole [W]4.3
-
Connection typeWith a screw
-
AC rated voltage [V]380/415
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu100 A
-
Rated permanent current at AC-21, 400 V100 A
-
Rated operation power at AC-23, 400 V45 kW
-
Conditioned rated short-circuit current Iq25 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V100 A
-
Rated short-time withstand current lcw2.75 kA
-
Switching power at 400 V65 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 288 pcs. |
| Weight (kg) | 0,629 | 0,635 | 7,975 | 214,400 |
| Width (m) | 0,132 | 0,085 | 0,285 | 0,800 |
| Length (m) | 0,075 | 0,090 | 0,190 | 1,150 |
| Depth (m) | 0,079 | 0,165 | 0,380 | 1,200 |
