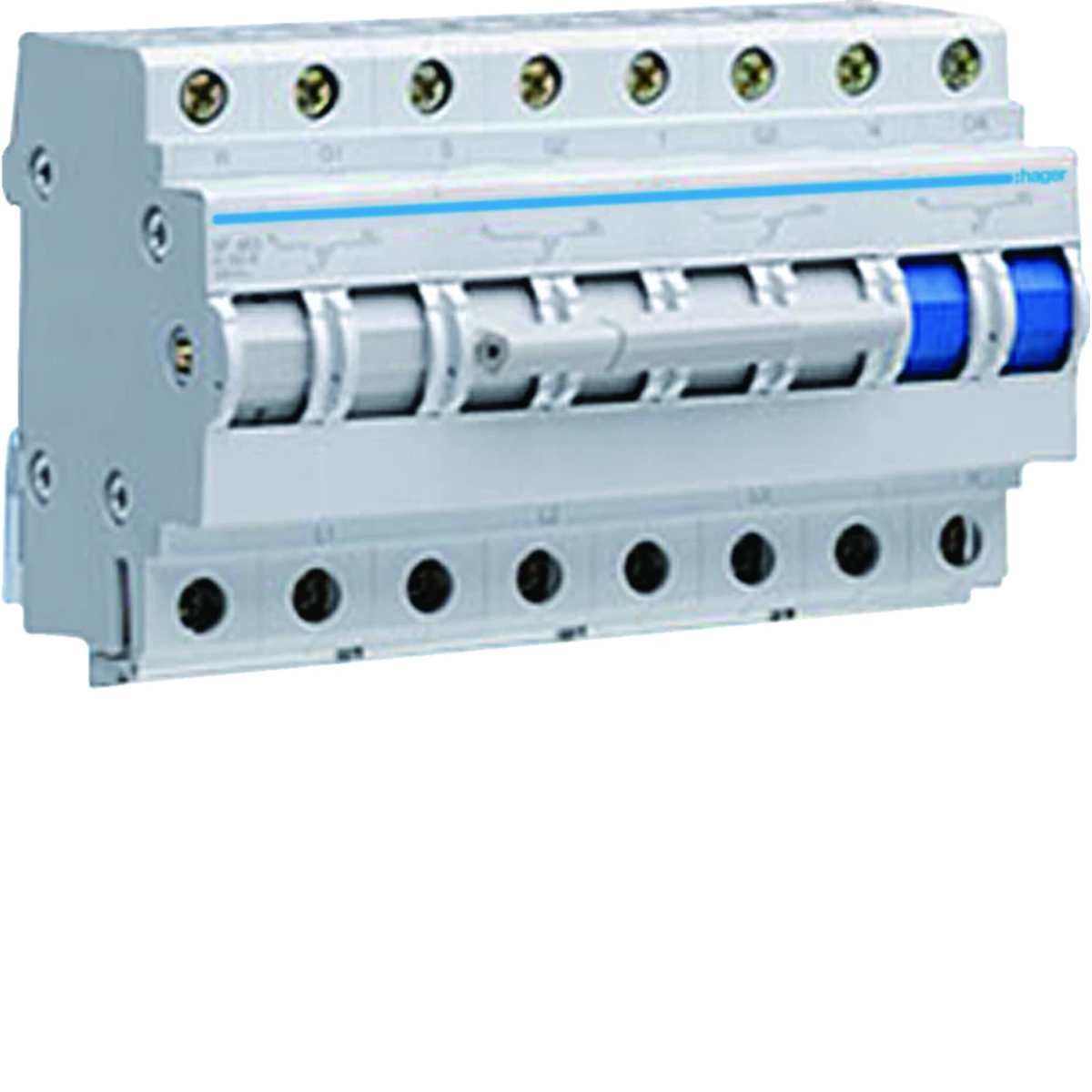

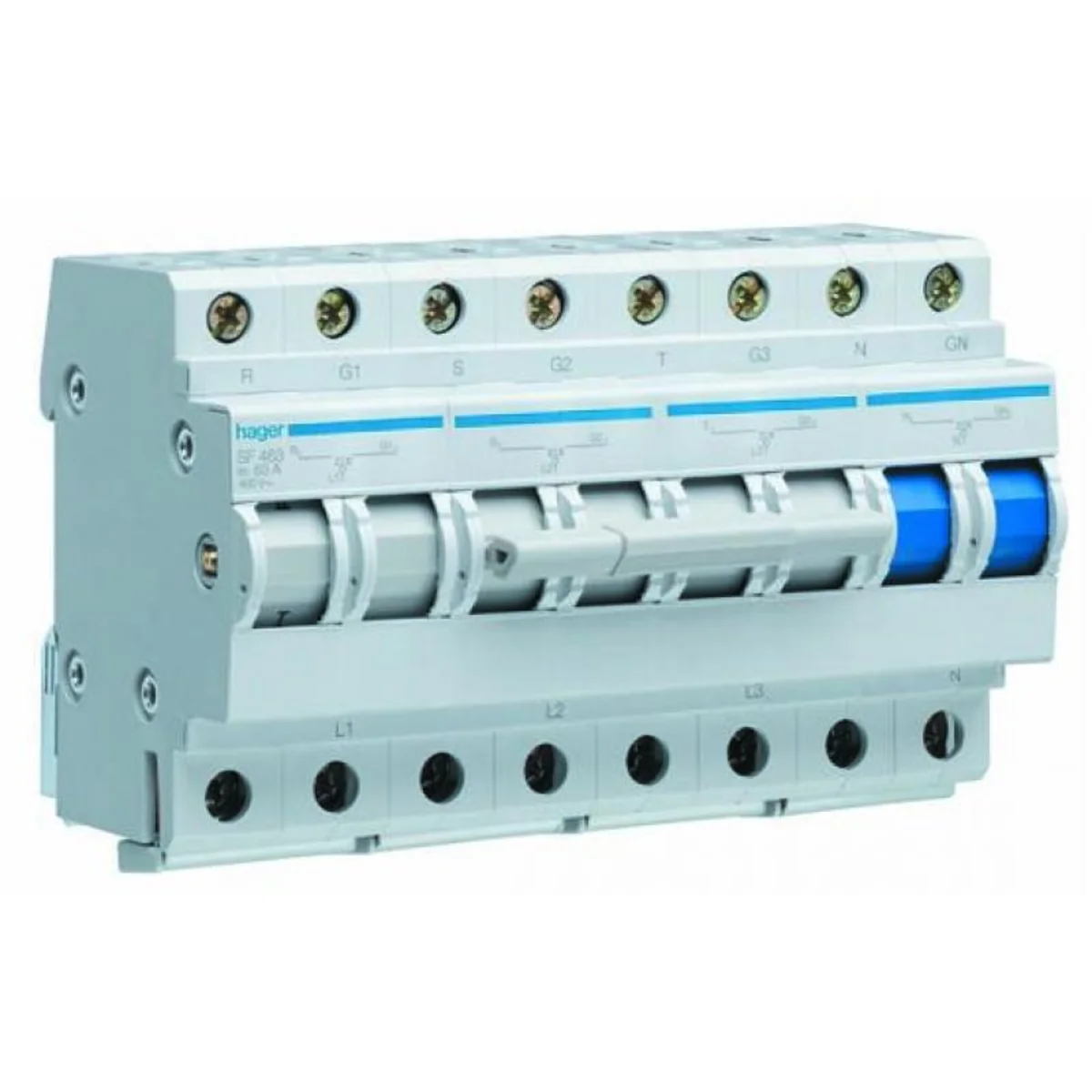

Modular network-generator switch 63A four-pole I-0-II SF463
local index:
ALI152HAGE
Catalog No:
SF463
EAN code:
3250615561015
Price:
196,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The modular power switch is a device compatible with other modular devices, mounted in residential switchboards (mounting on a 35 mm DIN rail)
Technical data
-
Depth [mm]72
-
Number of poles4
-
Rated insulation voltage [V]500
-
Power dissipation [W]7.2
-
Height [mm]90
-
PKWIU27.12.23.0
-
Number of modules8
-
Surge voltage [kV]4000
-
Rated current [A]63
-
Width [mm]143
-
Number of modules8
Other technical data
-
Switching functionControl switch
-
Number of contacts as normally closed contact0
-
Number of poles4
-
Rated voltage400 V
-
Short-circuit breaking capacity (Icw)6 kA
-
With signal lampNo
-
Built-in depth72 mm
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact4
-
Rated current63 A
-
Min. rated voltage400 V
-
Voltage typeAC
-
Width in number of modular spacings8
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 288 pcs. |
| Weight (kg) | 0,672 | 0,720 | 9,020 | 239,480 |
| Width (m) | 0,143 | 0,095 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,080 | 0,215 | 1,006 |
| Depth (m) | 0,073 | 0,190 | 0,365 | 1,200 |
