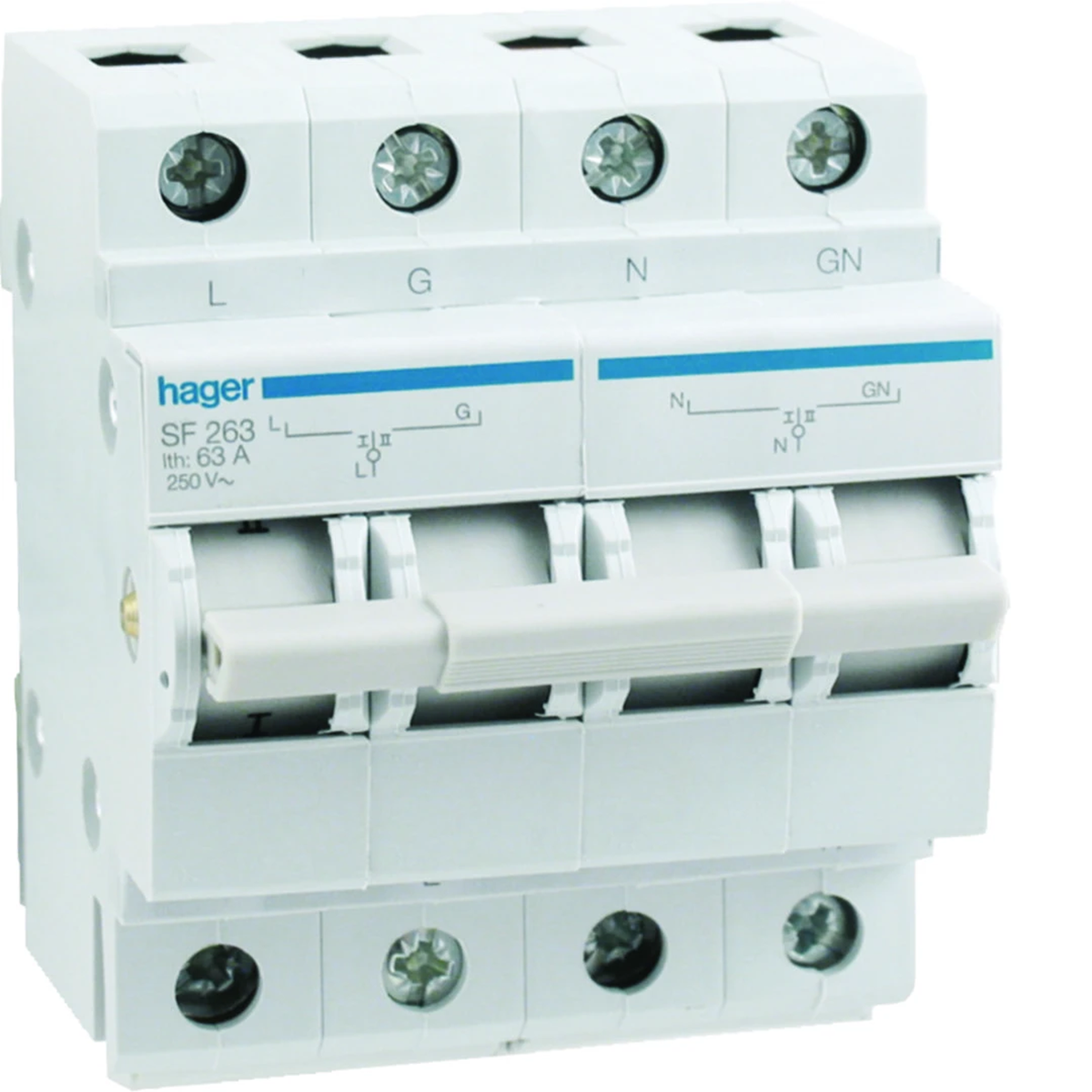

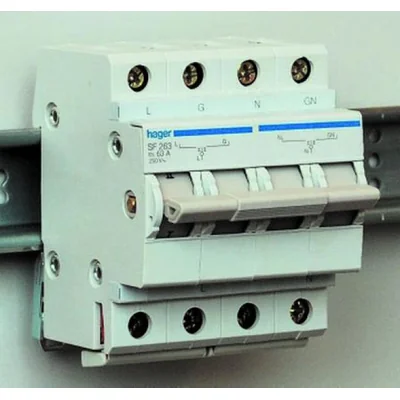

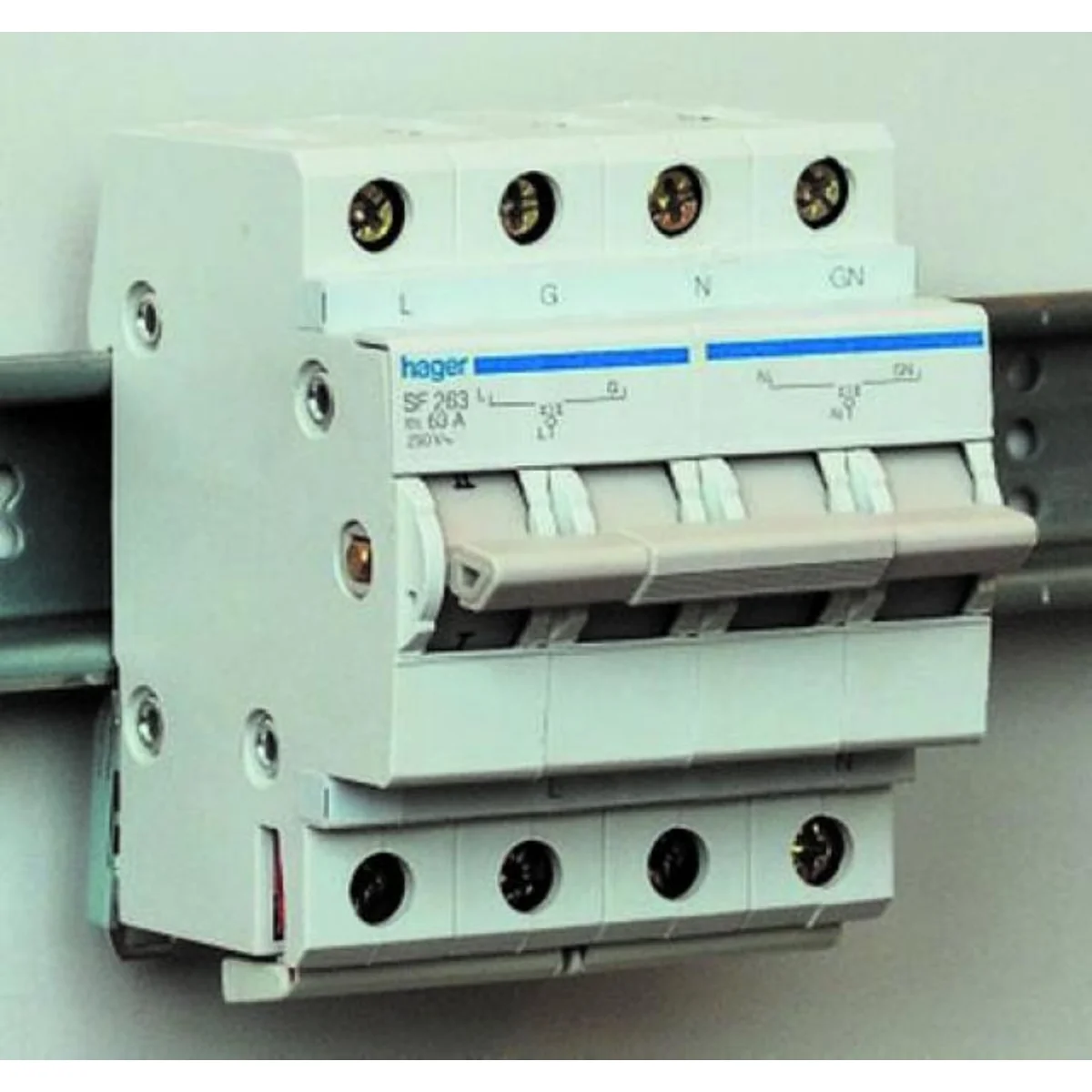

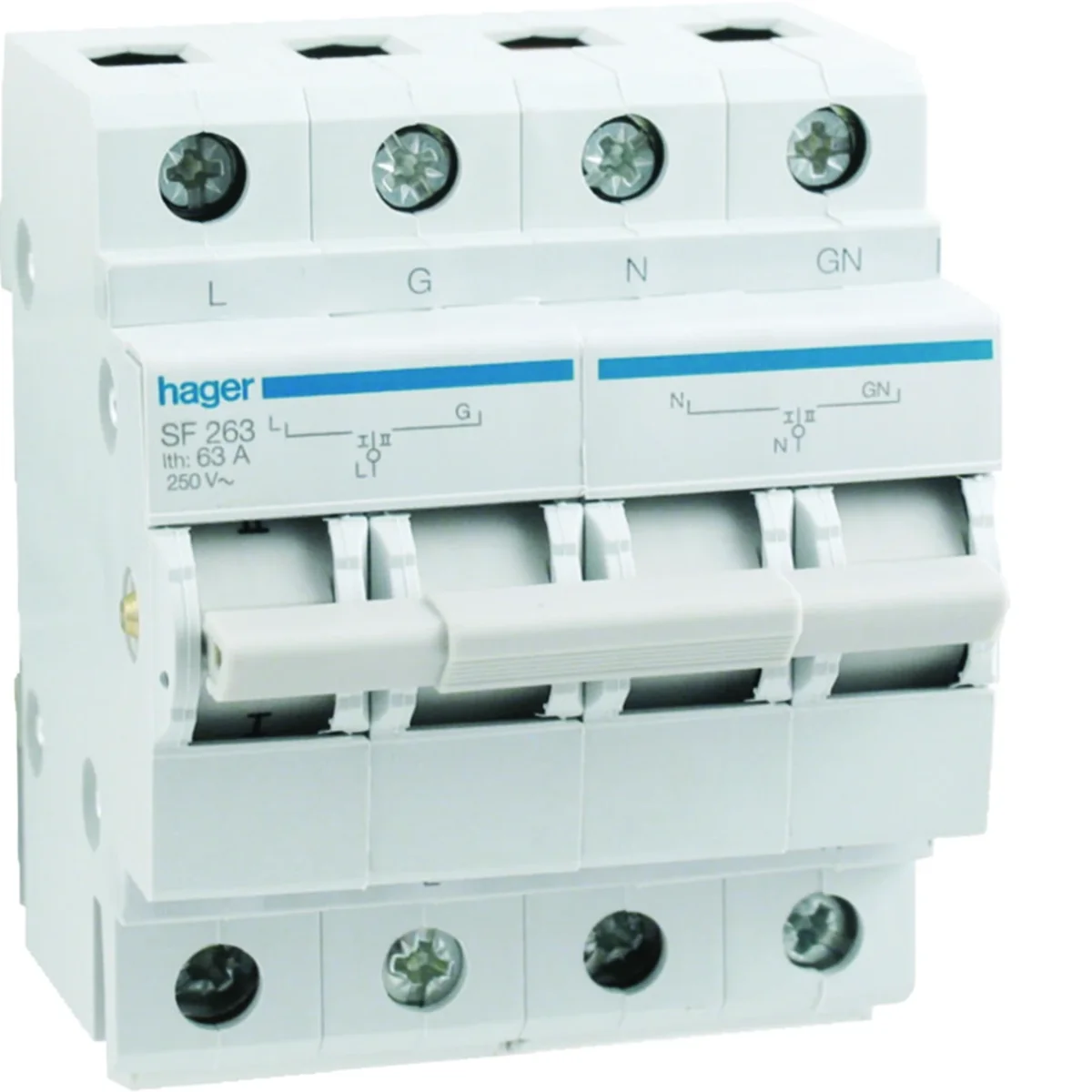

Modular mains-aggregate switch 63A two-speed I-0-II SF263

local index:
ALI161HAGE
Catalog No:
SF263
EAN code:
3250615561008
Manufacturer: HAGER
Depth [mm]: 72
Number of modules: 4
Number of poles: 2
Price:
144,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The modular power switch is a device compatible with other modular devices mounted in switchboards  (mounted on DIN 35 mm rail) Note: Power circuits must be additionally protected against short circuits and overloads (e.g. overcurrent switch). The switch itself does not protect the switched circuit. Note: maximum short-circuit current in the switch circuit 4.5kA!

Technical data

  • Depth [mm]
    72
  • Number of poles
    2
  • power loss [W]
    3.6
  • Height [mm]
    90
  • Number of modules
    4
  • Number of modules
    4
  • Rated current [A]
    63
  • Width [mm]
    71.5
  • Rated impulse voltage [kV]
    4000
  • PKWIU
    27.12.23.0

Other technical data

  • Switching function
    Control switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    2
  • Rated voltage
    230 V
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With signal lamp
    No
  • Built-in depth
    72 mm
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    2
  • Rated current
    63 A
  • Min. rated voltage
    230 V
  • Voltage type
    AC
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,343 0,365 13,590 351,160
Width (m) 0,072 0,080 0,315 0,800
Length (m) 0,083 0,075 0,235 1,050
Depth (m) 0,073 0,100 0,365 1,200
