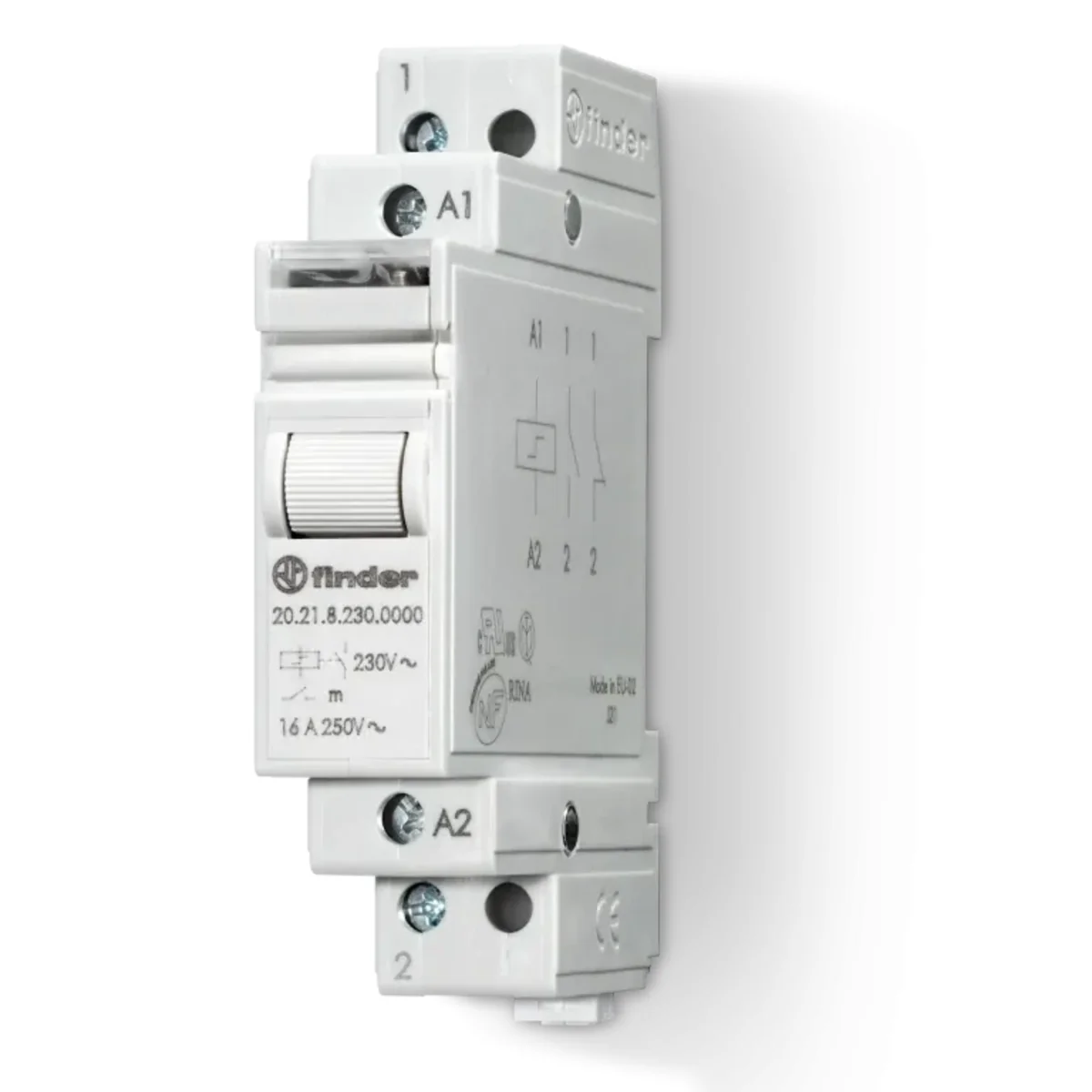

Modular impulse relay 1Z 16A 230V AC 202182304000PAS

local index:
APC033FIND
Catalog No:
202182304000PAS
EAN code:
8012823266640
Manufacturer: FINDER
Pin configuration: SPST-NO
Maximum switching voltage [V]: 400
Contact material: AgSnO2
Price:
23,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Pulse relay for DIN rail mounting

  • Test button with mechanical indicator
  • 6 connection programs
  • AC or DC control
  • A place for a description plate
  • After installing the 026.00 capacitor, it is possible to work with illuminated buttons
  • Cadmium-free contact material
  • Italian patent

Technical data

  • Pin configuration
    SPST-NO
  • Contact material
    AgSnO2
  • Rated voltage [V]
    230
  • Switching current [A]
    thirty
  • Level of security
    IP20
  • Maximum switching voltage [V]
    400
  • Installation
    On the TH-35 rail
  • Power consumption [W]
    5
  • Rated current [A]
    16
  • Number of contacts
    1Z
