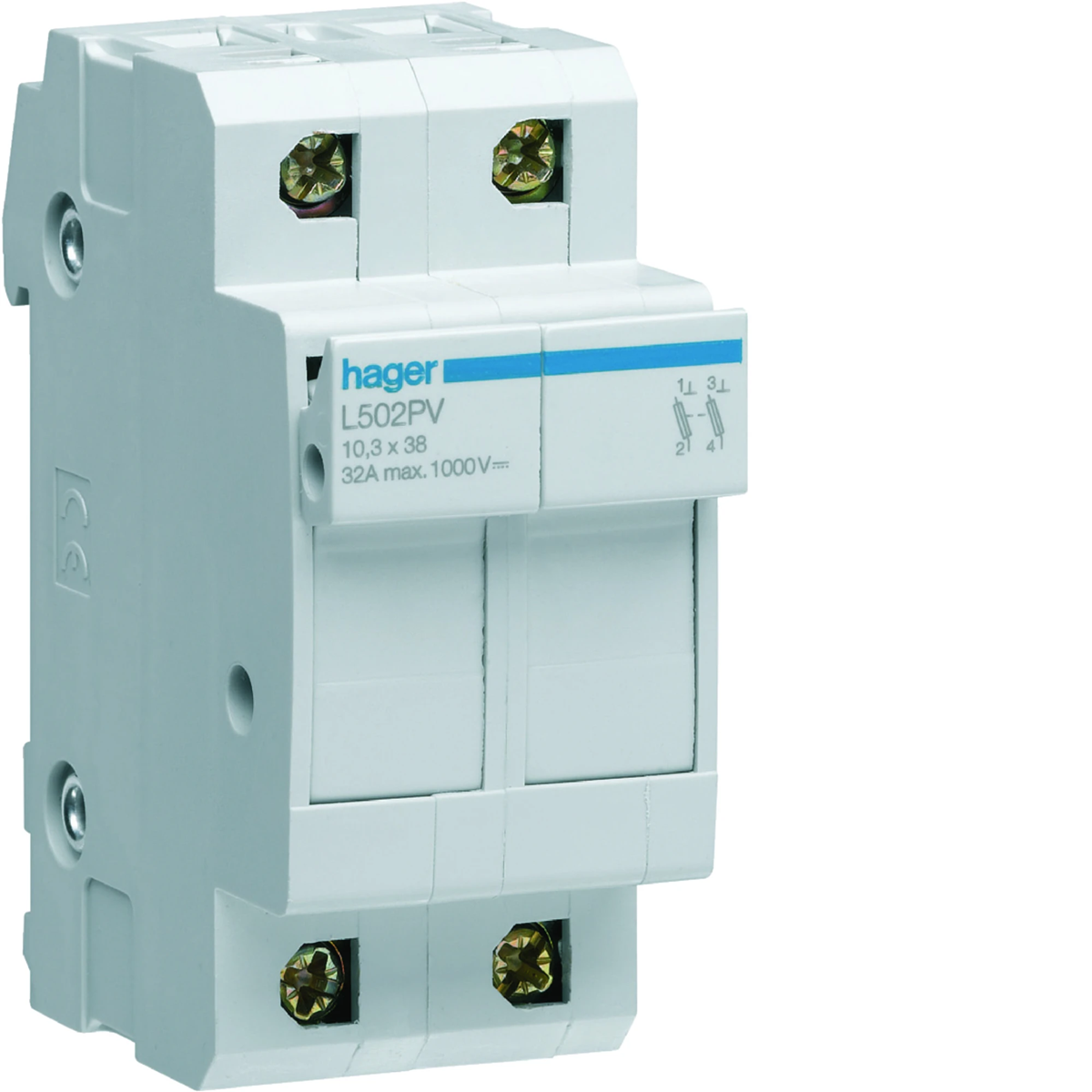

Modular fuse base for PV systems, 2P 10x38 mm 32 A 1000 V d.c. L502PV
local index:
ALI077HAGE
Catalog No:
L502PV
EAN code:
3250614124822
Price:
23,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular fuse base for PV systems, 1P 10x38 mm 32 A 1000 V d.c.
Technical data
-
Rated frequency [Hz]50
-
Number of poles2
-
Rated current [A]32
-
Width [mm]35
-
Height [mm]77
-
Mechanical durability (number of cycles)4000
-
Depth [mm]75
-
Rated insulation voltage [V]690
-
power loss [W]2.2
-
Size10.3x38
-
Electrical endurance (number of cycles)2000
-
PKWIU27.12.21.0
Other technical data
-
Size10x38 mm
-
Utilization categoryOther
-
Release characteristicOther
-
Voltage typeDC
-
Rated operating frequency50 ... 60 Hz
-
Breaking capacity30 kA
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 6 pcs. | 72 pcs. | 1728 pcs. | 6 pcs. | 72 pcs. | 1728 pcs. |
| Weight (kg) | 0,785 | 9,840 | 259,160 | 0,785 | 9,840 | 259,160 |
| Width (m) | 0,100 | 0,315 | 0,800 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,235 | 1,498 | 0,085 | 0,235 | 1,498 |
| Depth (m) | 0,230 | 0,365 | 1,200 | 0,230 | 0,365 | 1,200 |
