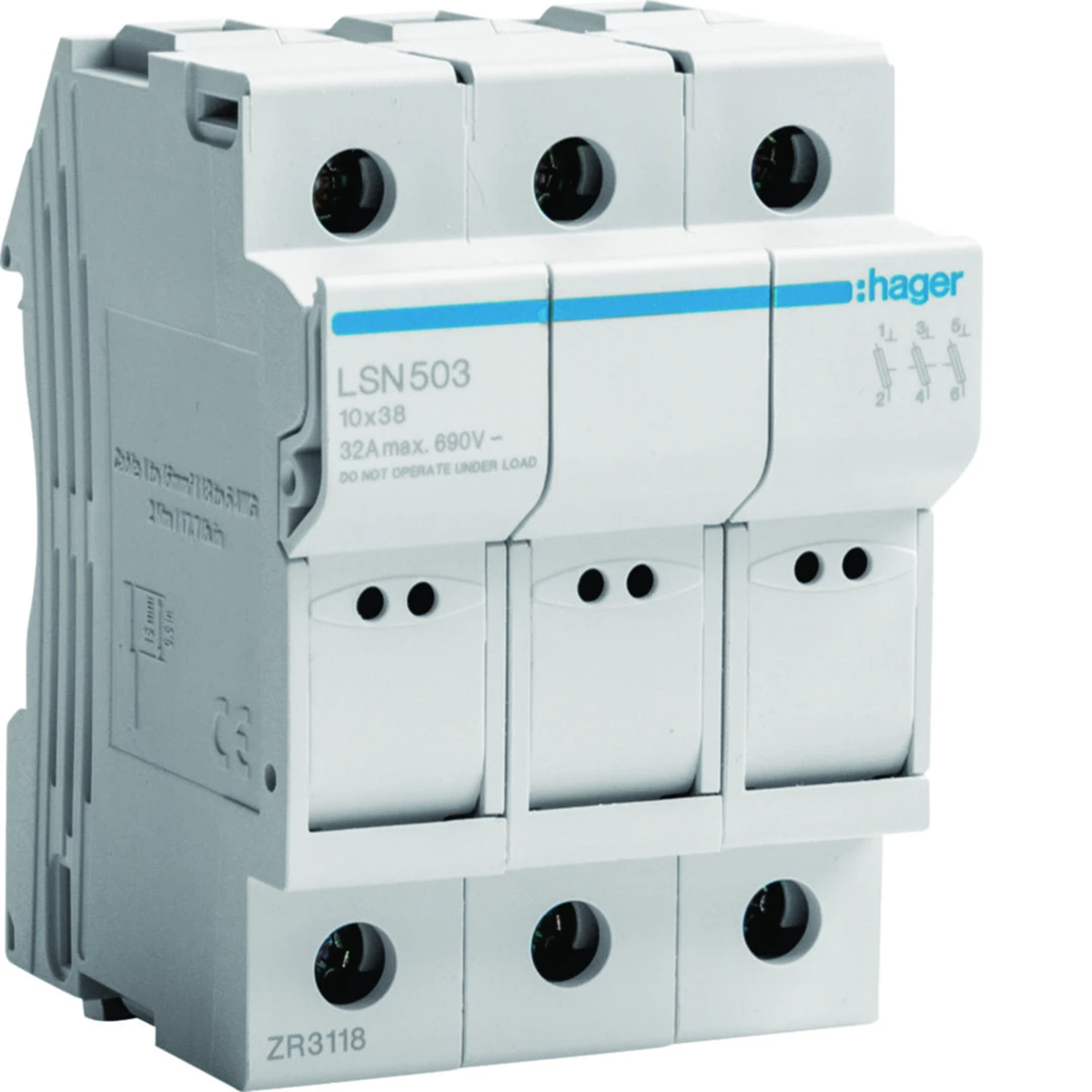

Modular fuse base 3P 32A 690V L38 fuse link 10x38 LSN503
local index:
ALB201HAGE
Catalog No:
LSN503
EAN code:
3250614120091
Price:
25,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Fuse base3P 32A 690V L38. Modular fuse bases Series L38
- for cylindrical fuses with dimensions: 10 x 38 mm gG and aM type
- maximum rated current 32 A, 690 V AC
- construction allows replacement of a blown fuse, ensuring protection against touch
- bases are supplied without fuses
- possibility of sealing both in closed and open position
- 3 poles
- mounting on TS35 rail
- cage terminals:
- wire up to 25 mm2
- strand wire up to 16 mm2 < /ul>
- standards:
- EN/IEC 60269-2
- EN/IEC 60269-2-1
- EN/IEC 60947 -3
Technical data
-
Depth [mm]76.9
-
Number of poles3
-
Rated insulation voltage [V]690
-
FamilyL38
-
Width [mm]52.5
-
Height [mm]76.5
-
Fuse link rated current [A]2/4/6/8/10/12/16/20/25/32
-
ColorWhite
-
Tightening torque [Nm]2.2
-
Rated current [A]32
-
Level of securityIP20
-
Fuse link size10x38
-
Accurate colorWhite
-
PKWIU27.12.21.0
Other technical data
-
Nominal voltage690 V
-
For fuse size10x38 mm
-
Concurrently switching neutral conductorNo
-
With optical defect indicationNo
-
Built-in depth76.5 mm
-
Mounting methodDIN rail
-
Number of poles3
-
LockableYes
-
Width in number of modular spacings3
-
Degree of protection (IP)IP2X
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 4 pcs. | 64 pcs. | 1536 pcs. |
| Weight (kg) | 0,140 | 0,570 | 9,430 | 251,320 |
| Width (m) | 0,052 | 0,085 | 0,315 | 0,800 |
| Length (m) | 0,086 | 0,070 | 0,215 | 1,050 |
| Depth (m) | 0,064 | 0,220 | 0,360 | 1,200 |
