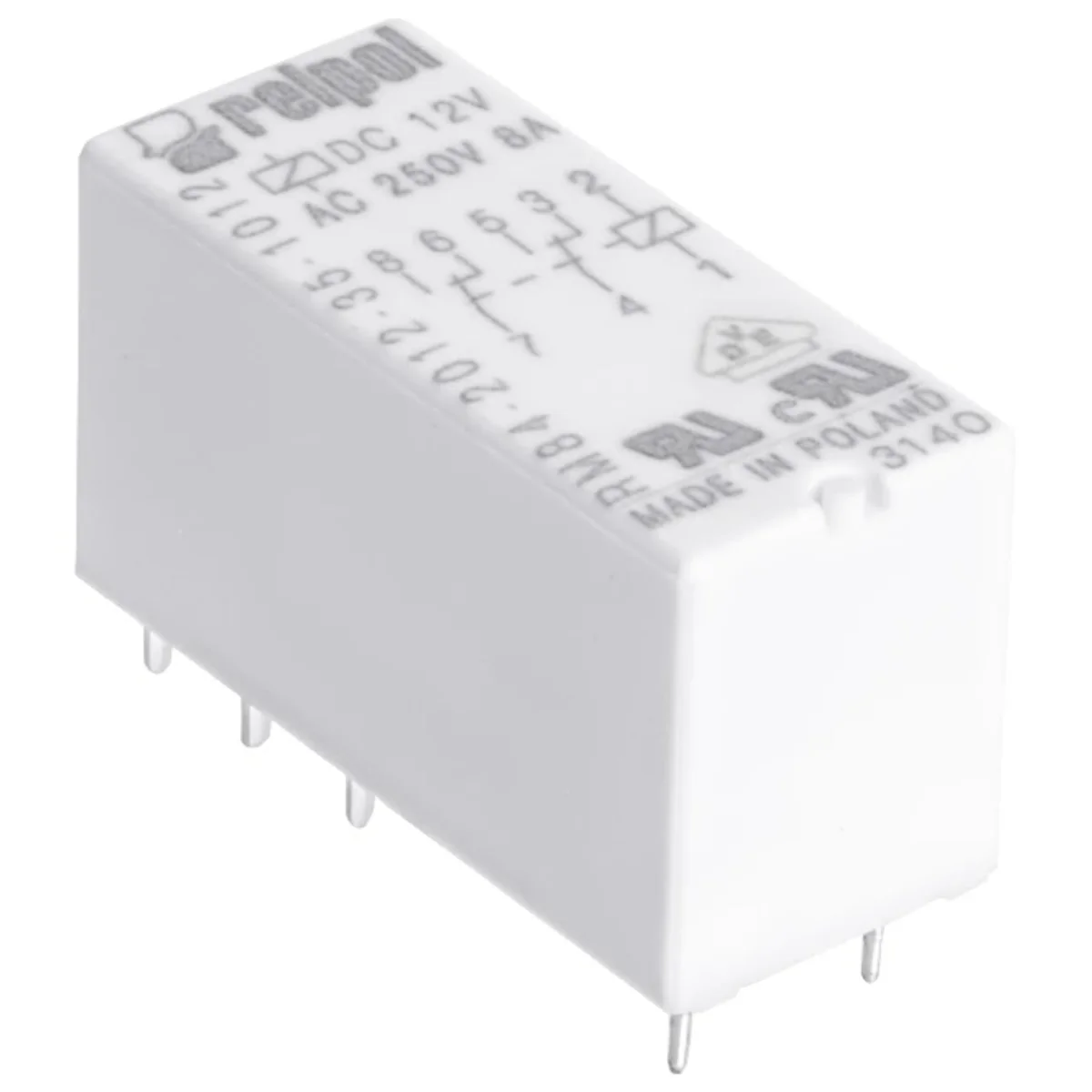

Miniature relays RM84-2012-35-5012 852385

Electromagnetic relay, miniature, for PCB and socket.
5mm pitch. Height 15.7mm. Output: 2P - two changeover contacts - terminals: 11(7)-12(6)-14(8); 21(4)-22(3)-24(5); AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 12 V AC. Dimensions: 29 x 12.7 x 15.7 mm.
Contact material: AgNi. IP 67. Socket mounting options: EC50, GD50 - for printing; GZT80, GZM80, GZS80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw. The dimensions of the relay + socket + clamp set are indicated in the description of the selected socket.
