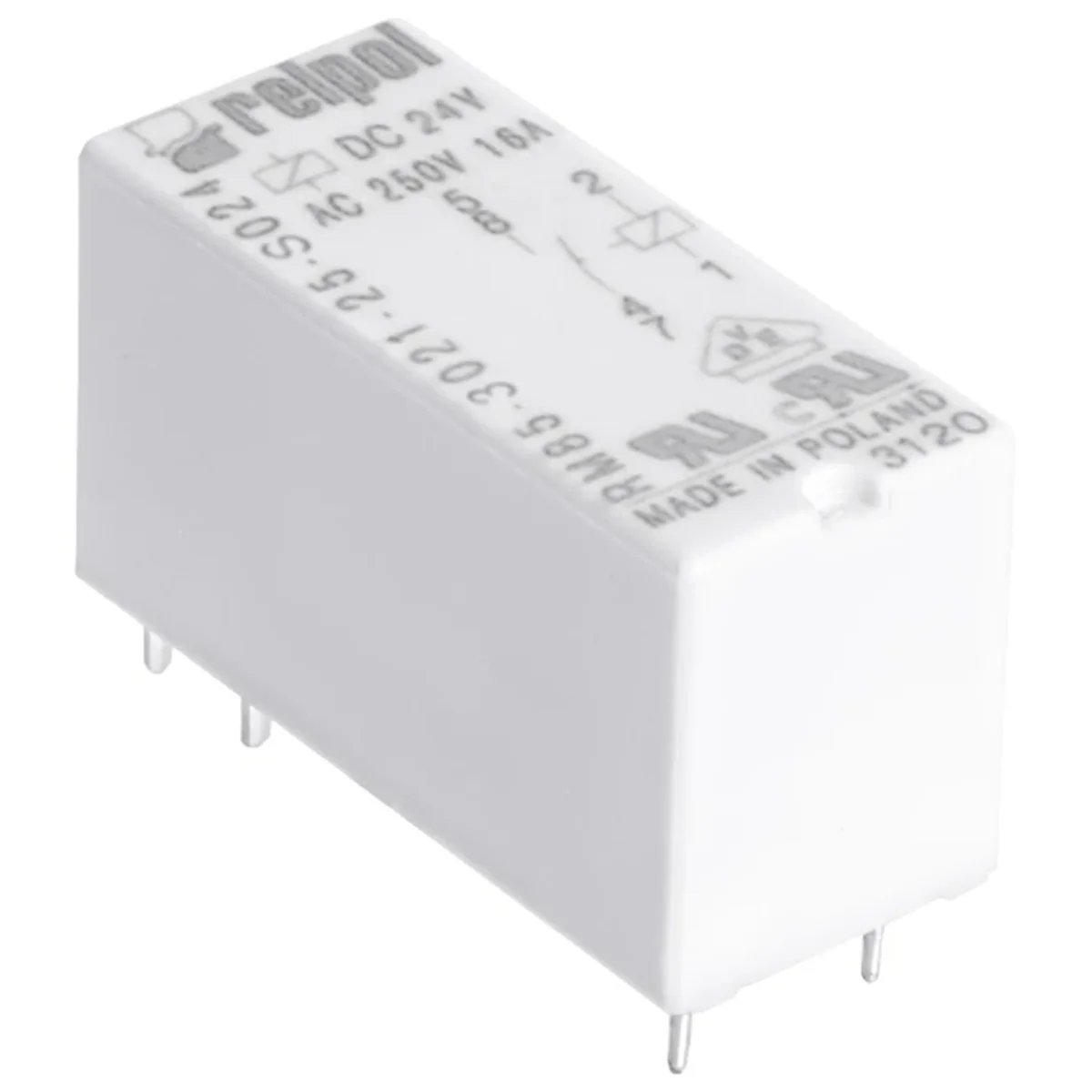

Miniature relay RM85-3021-25-S048 651201

RM85 sensitive - electromagnetic relay, miniature, for printed circuit and plug socket. Sensitive coil with a power of 0.25 W. Pitch 5 mm. Height 15.7mm. Output: 1NO - one make contact - terminals: 11(7)/21(4)-14(8)/24(5); AC1 - 16A / 250V; DC1 - 16 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 48 V DC. Dimensions: 28 x 12.7 x 15.7mm. Contact material: AgSnO2. IP 40. Socket mounting options: EC50, GD50, PW80 - for printing; GZP80 (push-in), GZT80, GZM80, GZS80, GZF80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw; GZMB80 - screwless socket for mounting on a 35 mm rail. Note: there are galvanic connections in the relay: 11 out of 21, 12 out of 22 and 14 out of 24. The dimensions of the relay + socket + clamp set are indicated in the description of the selected socket.
