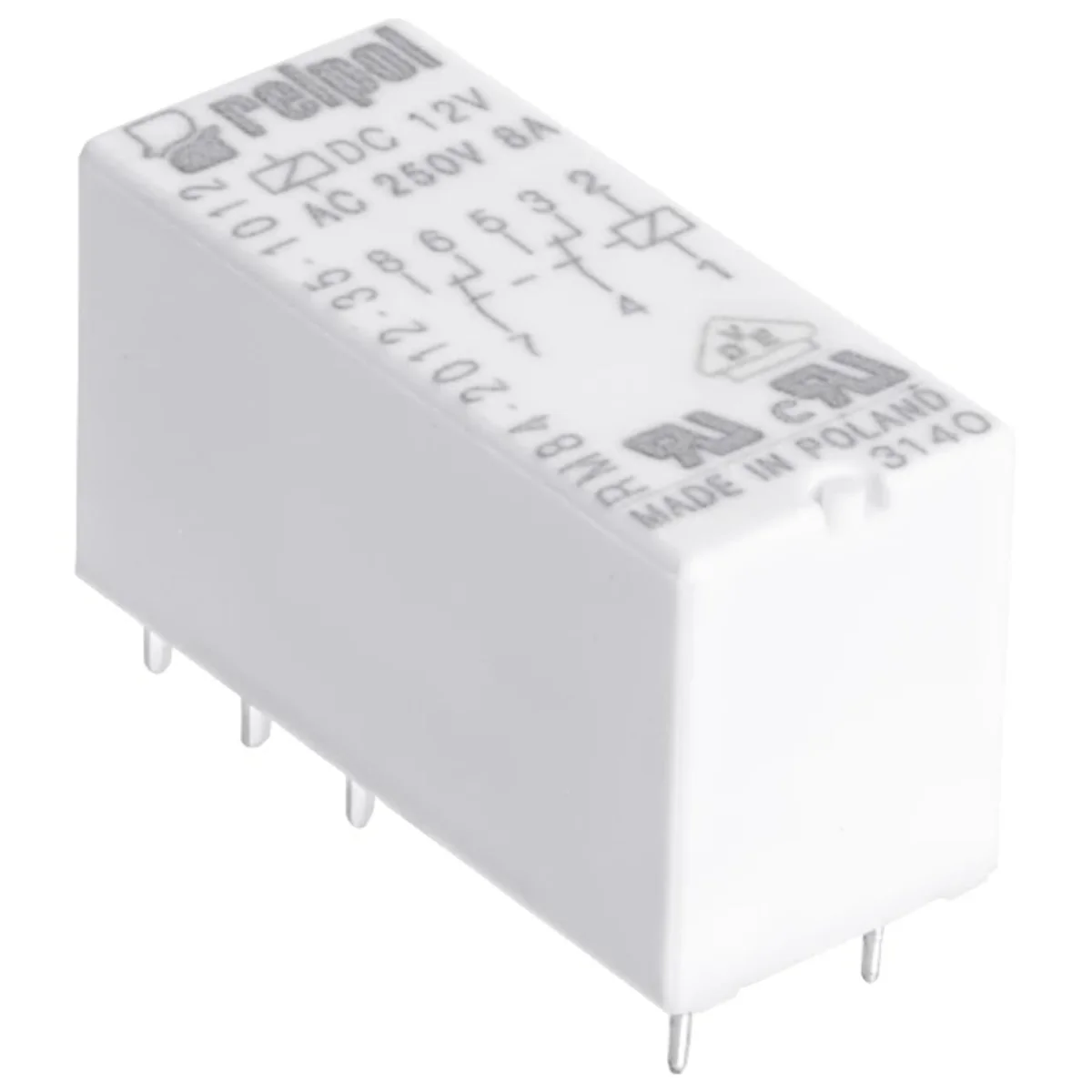

Miniature relay RM84-2012-35-1009 600334

local index:
APE318RELP
Catalog No:
600334
Manufacturer: RELPOL
Family: RM84 | RM85 | RMP84 | RMP85
Price:
5,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, miniature, for PCB and socket. 5mm pitch. Height 15.7mm. Output: 2P - two changeover contacts - terminals: 11(7)-12(6)-14(8); 21(4)-22(3)-24(5); AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 9 V DC. Dimensions: 29 x 12.7 x 15.7mm. Contact material: AgNi. IP 67. Socket mounting options: EC50, GD50, PW80 - for printing; GZP80 (push-in), GZT80, GZM80, GZS80, GZF80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw; GZMB80 - screwless socket for mounting on a 35 mm rail. The dimensions of the relay + socket + clamp set are indicated in the description of the selected socket.

Technical data

  • Family
    RM84 RM85 RMP84 RMP85

Other technical data

  • Type of electric connection
    PCB connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP67
  • Height
    17.7 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    9 ... 9 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    0
  • Complete with socket
    No
  • Width
    13.2 mm
  • Depth
    29 mm
