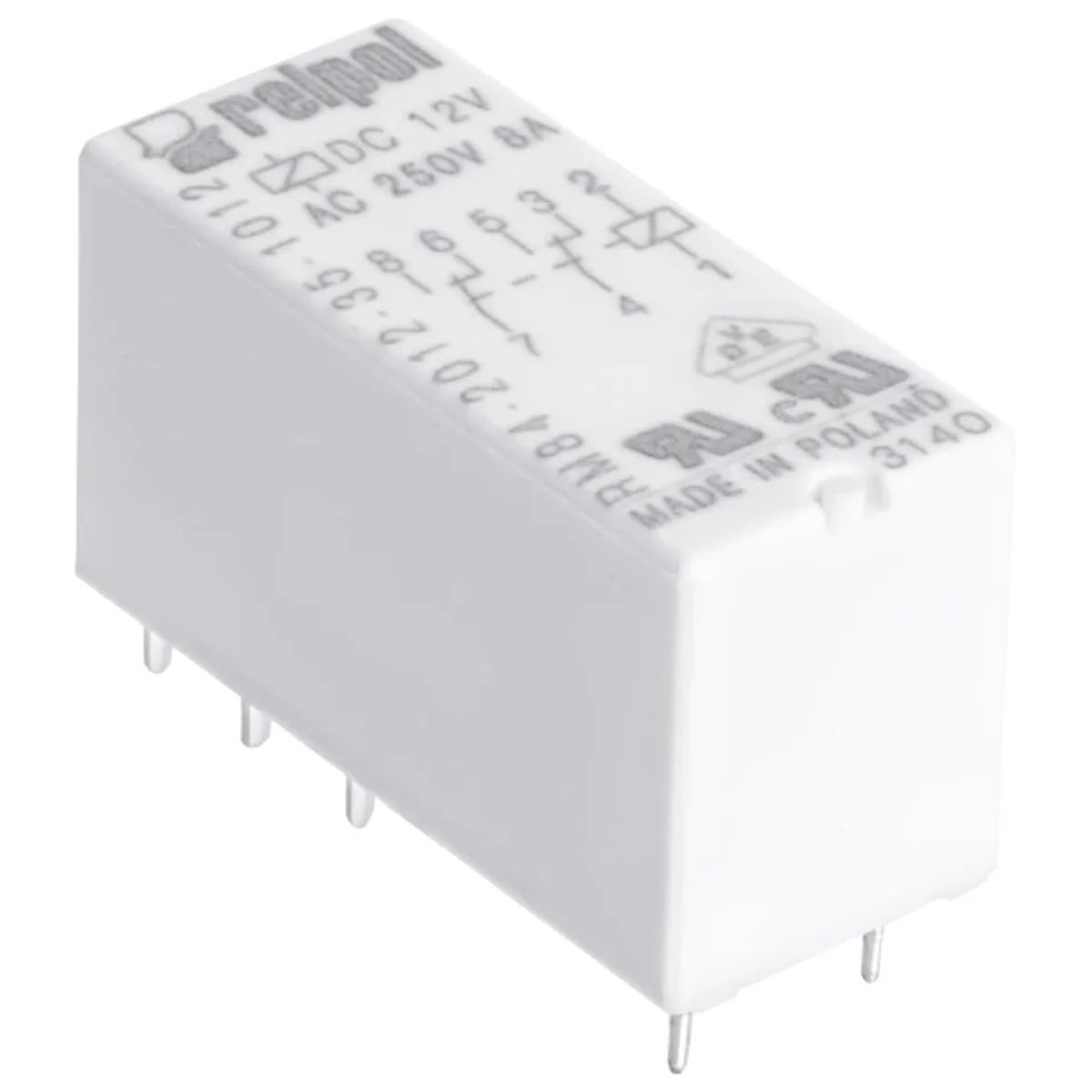

Miniature relay RM84-2012-35-1003 600374

Electromagnetic relay, miniature, for PCB and socket. 5mm pitch. Height 15.7mm. Output: 2P - two changeover contacts - terminals: 11(7)-12(6)-14(8); 21(4)-22(3)-24(5); AC1 - 8A / 250V; DC1 - 8 A / 24 V. Input / coil - terminals: A1(1) - A2(2), supply voltage Un - 3 V DC. Dimensions: 29 x 12.7 x 15.7mm. Contact material: AgNi. IP 67. Socket mounting options: EC50, GD50, PW80 - for printing; GZP80 (push-in), GZT80, GZM80, GZS80, GZF80 - mounting on a 35 mm rail or screwed to the panel with one M3 screw; GZMB80 - screwless socket for mounting on a 35 mm rail. The dimensions of the relay + socket + clamp set are indicated in the description of the selected socket.
