Miniature circuit breaker, 10kA, C, 3+N, 63A NCN663

Name: Miniature circuit breaker, 10kA, C, 3+N, 63A
Brand: HAGER
SKU: ALI215HAGE
Price: 112.47 PLN

Indice locale:

ALI215HAGE

Numero di catalogo:

NCN663

Codice EAN:

3250614615436

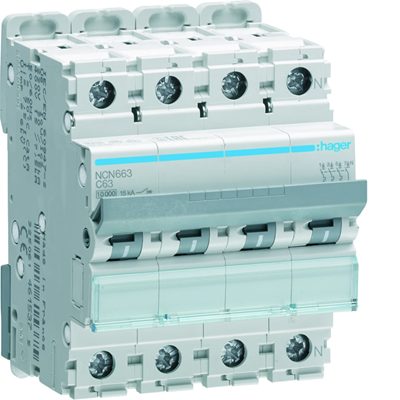

Miniature circuit breaker, 10kA, C, 3+N, 63A

Clicca sulla foto per ingrandire

Produttore: HAGER

Number of poles: 4

Tightening torque [Nm]: 2.8

Rated insulation voltage [V]: 500

Vedi la descrizione completa

Prezzo:

112,47 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 10 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Circuit breakers 0.5 - 63 A. Type B, C and D
Rated short-circuit breaking capacity 10000 A:
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage:
230/400 V AC - single-pole circuit breaker,
400V AC - omnipolar circuit breaker,
• can be used in DC circuits,
• a wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm², stranded wire up to 25 mm²,
• description field with a protective flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dati tecnici

Number of poles

4
Rated insulation voltage [V]

500
power loss [W]

25.7
Working temperature [°C]

-25 to 60
Electrical endurance (number of cycles)

4000
Number of modules

4

Tightening torque [Nm]

2.8
Rated current [A]

63
Width [mm]

70
Height [mm]

83
Mechanical durability (number of cycles)

20000
PKWIU

27.12.22.0

Altri dati tecnici

Built-in depth

70 mm
Number of poles (total)

4
Rated current

63 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

30 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

2
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Dettagli del produttore

Produttore

Hager Electro S.A.S.
Indirizzo

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta
Quantità	3 pezzi	36 pezzi	864 pezzi
Peso (kg)	1,470	17,710	425,080
Larghezza (m)	0,090	0,310	0,800
Lunghezza (m)	0,080	0,230	1,050
Profondità (m)	0,220	0,360	1,200
