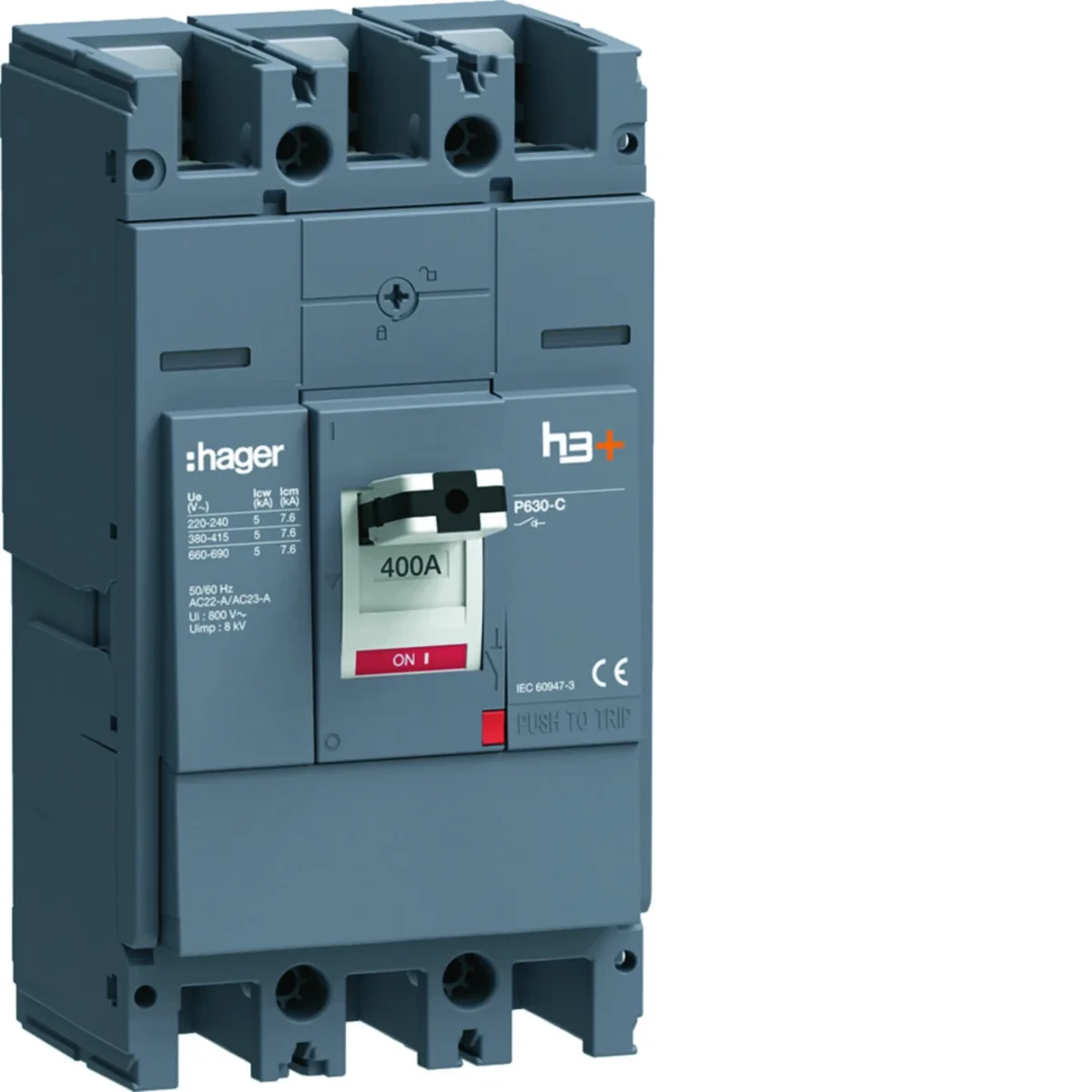

MCCB Power Switch h3+ P630 3x400A HCW400AR
Lokaler Index:
ALB202HAGE
Katalognummer:
HCW400AR
EAN-Code:
3250613198732
Hersteller:
HAGER
Preis:
3 359,67 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
-
PKWIU27.12.23.0
Weitere technische Daten
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu400 A
-
Rated permanent current at AC-21, 400 V400 A
-
Rated operation power at AC-23, 400 V407 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (IP), front sideIP40
-
Width140 mm
-
Depth150 mm
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage220 ... 690 V
-
Rated permanent current at AC-23, 400 V400 A
-
Rated short-time withstand current lcw5 kA
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
With pre-assembled cablingNo
-
Degree of protection (NEMA)Other
-
Height260 mm
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Paleta |
| Menge | 1 stk. | 52 stk. |
| Gewicht (kg) | 5,390 | 303,280 |
| Breite (m) | 0,180 | 0,820 |
| Länge (m) | 0,190 | 1,090 |
| Tiefe (m) | 0,290 | 1,020 |
