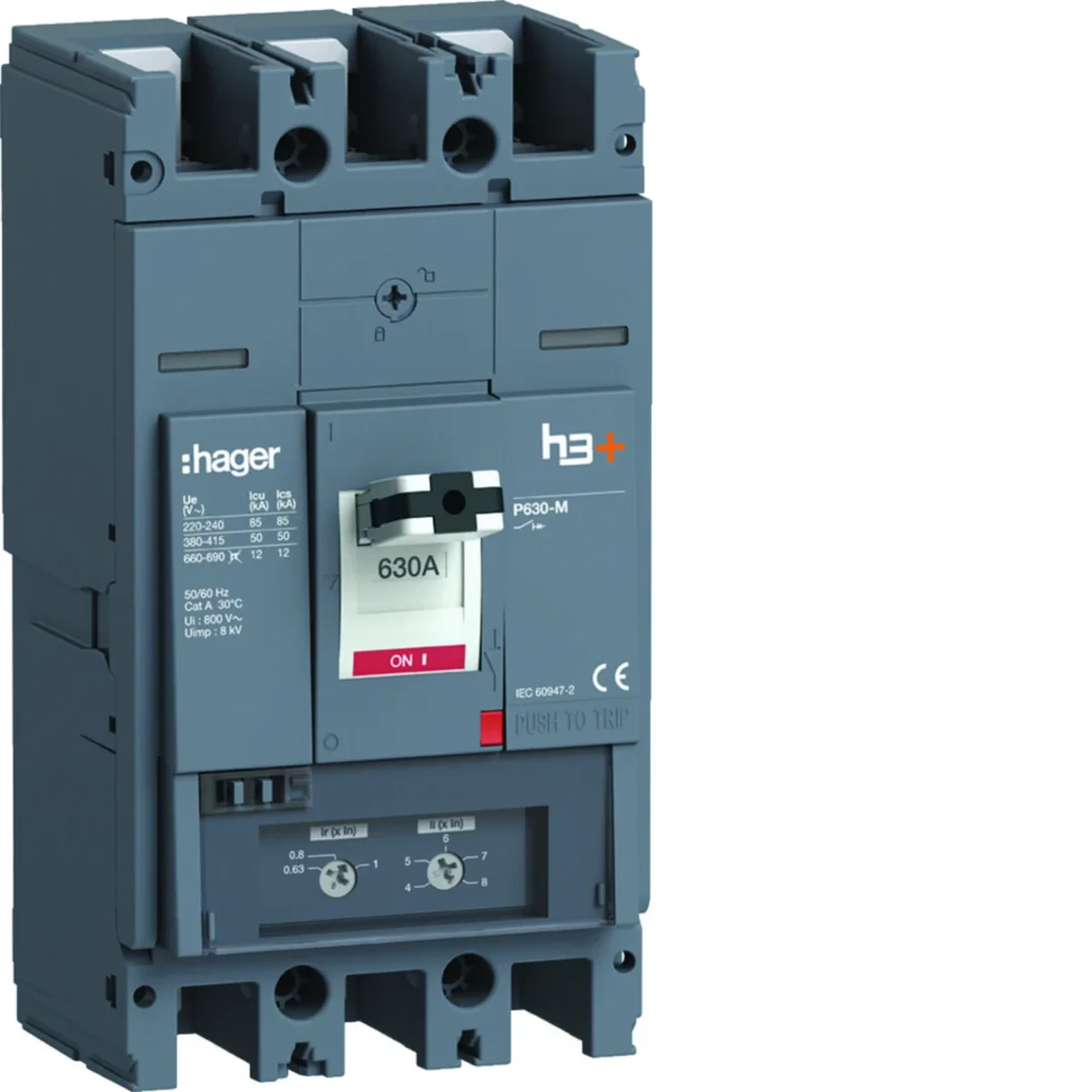

MCCB h3+ P630 TM 3x630A 50kA HMW630DE
local index:
ALM137HAGE
Catalog number:
HMW630DE
EAN code:
3250613244439
Manufacturer:
HAGER
Price:
3 914,94 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Rated permanent current Iu630 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range undelayed short-circuit release2520 ... 5040 A
-
Device constructionBuilt-in device fixed built-in technique
-
Type of electrical connection of main circuitScrew connection
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorYes
-
Number of poles3
-
Type of control elementToggle
-
Motor drive integratedNo
-
Degree of protection (IP)IP40
-
Rated voltage220 ... 690 V
-
Overload release current setting400 ... 630 A
-
Power loss145.2 W
-
Integrated earth fault protectionNo
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 1 pcs. | 52 pcs. |
| Weight (kg) | 5,685 | 318,620 |
| Width (m) | 0,180 | 0,800 |
| Length (m) | 0,190 | 1,050 |
| Depth (m) | 0,280 | 1,200 |
