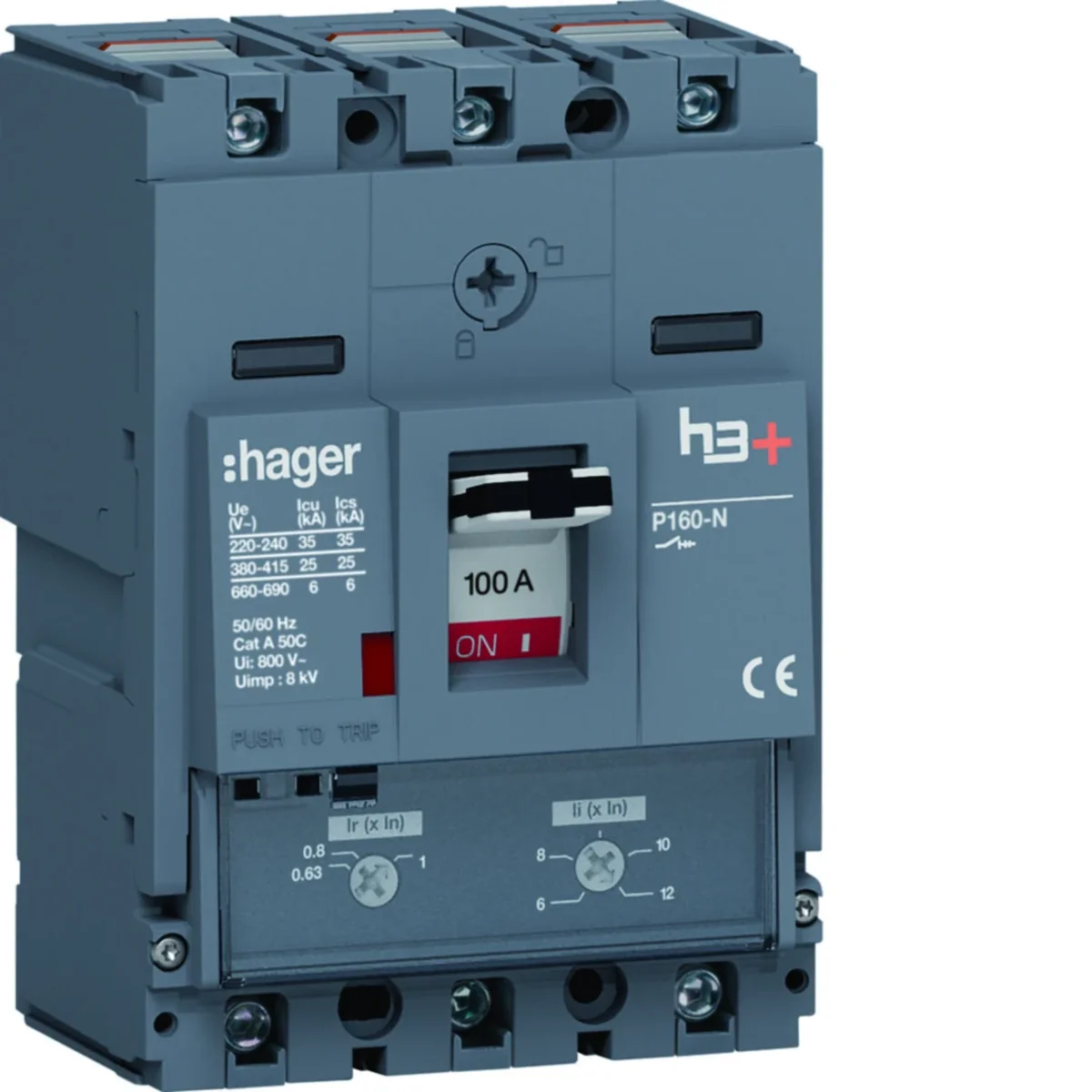

MCCB h3+ P160 3P 100A 25kA TM Power Circuit Breaker HHS100DC
Lokaler Index:
ALB078HAGE
Katalognummer:
HHS100DC
EAN-Code:
3250613177980
Hersteller:
HAGER
Preis:
1 105,63 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
Weitere technische Daten
-
Rated permanent current Iu100 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz25 kA
-
Adjustment range undelayed short-circuit release600 ... 1200 A
-
Device constructionBuilt-in device fixed built-in technique
-
Type of electrical connection of main circuitScrew connection
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorYes
-
Number of poles3
-
Type of control elementToggle
-
Motor drive integratedNo
-
Degree of protection (IP)IP40
-
Rated voltage220 ... 690 V
-
Overload release current setting63 ... 100 A
-
Power loss20.1 W
-
Integrated earth fault protectionNo
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalNo
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 9 stk. | 216 stk. |
| Gewicht (kg) | 1,269 | 11,861 | 309,664 |
| Breite (m) | 0,100 | 0,310 | 0,800 |
| Länge (m) | 0,120 | 0,220 | 1,050 |
| Tiefe (m) | 0,150 | 0,360 | 1,200 |
