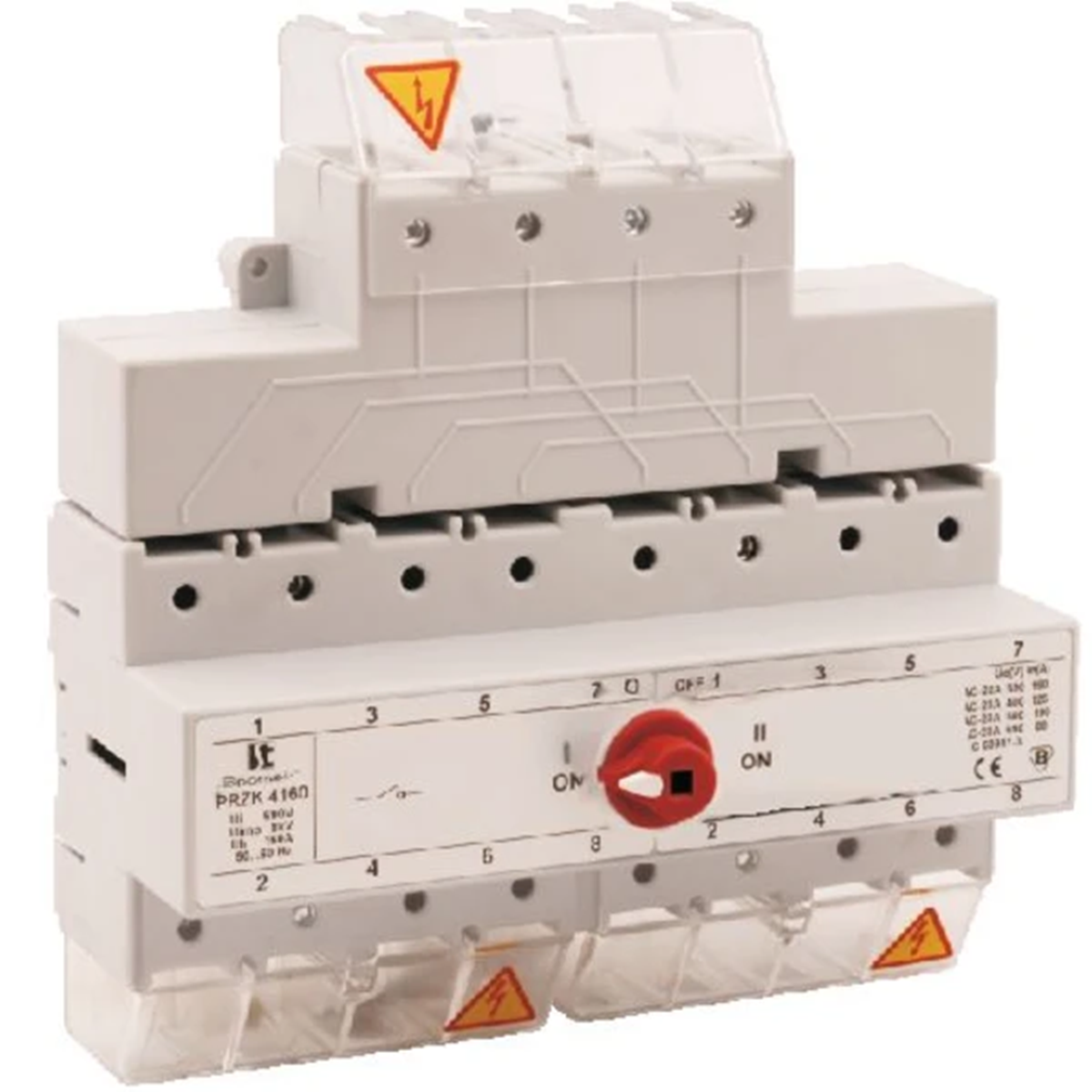

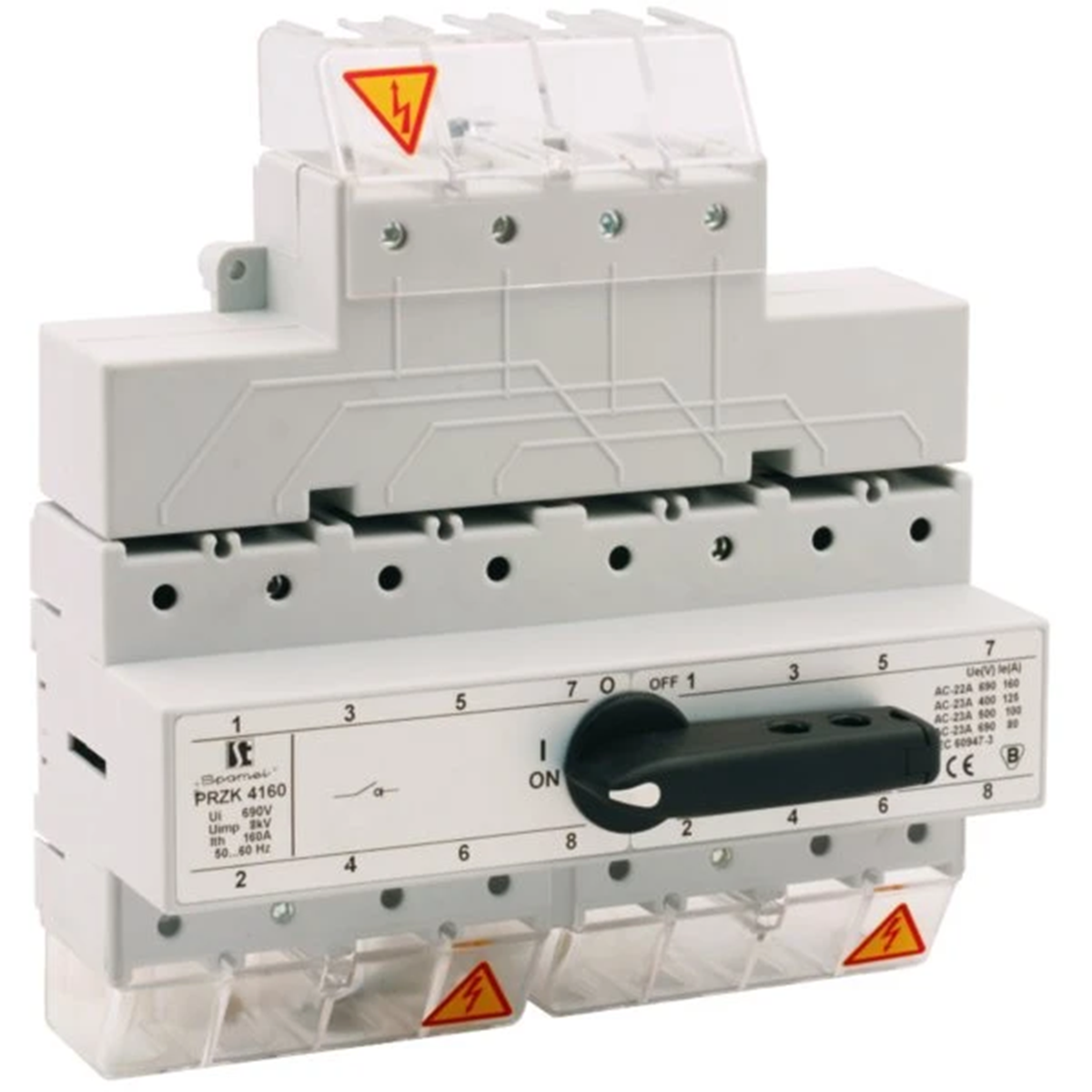

Mains-generator switch 160A four-pole PRZK-4160\W02

local index:
ALK222SPAM
Catalog No:
PRZK-4160\W02
EAN code:
5907723010178
Manufacturer: SPAMEL
Continuous current [A]: 160
Level of security: IP20
Price:
305,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mains-generator switch 160A four-pole

Technical data

  • Continuous current [A]
    160
  • Level of security
    IP20

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    160 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    Yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
  • Number of poles
    4
  • With retraction in 0-position
    No
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Turn button
