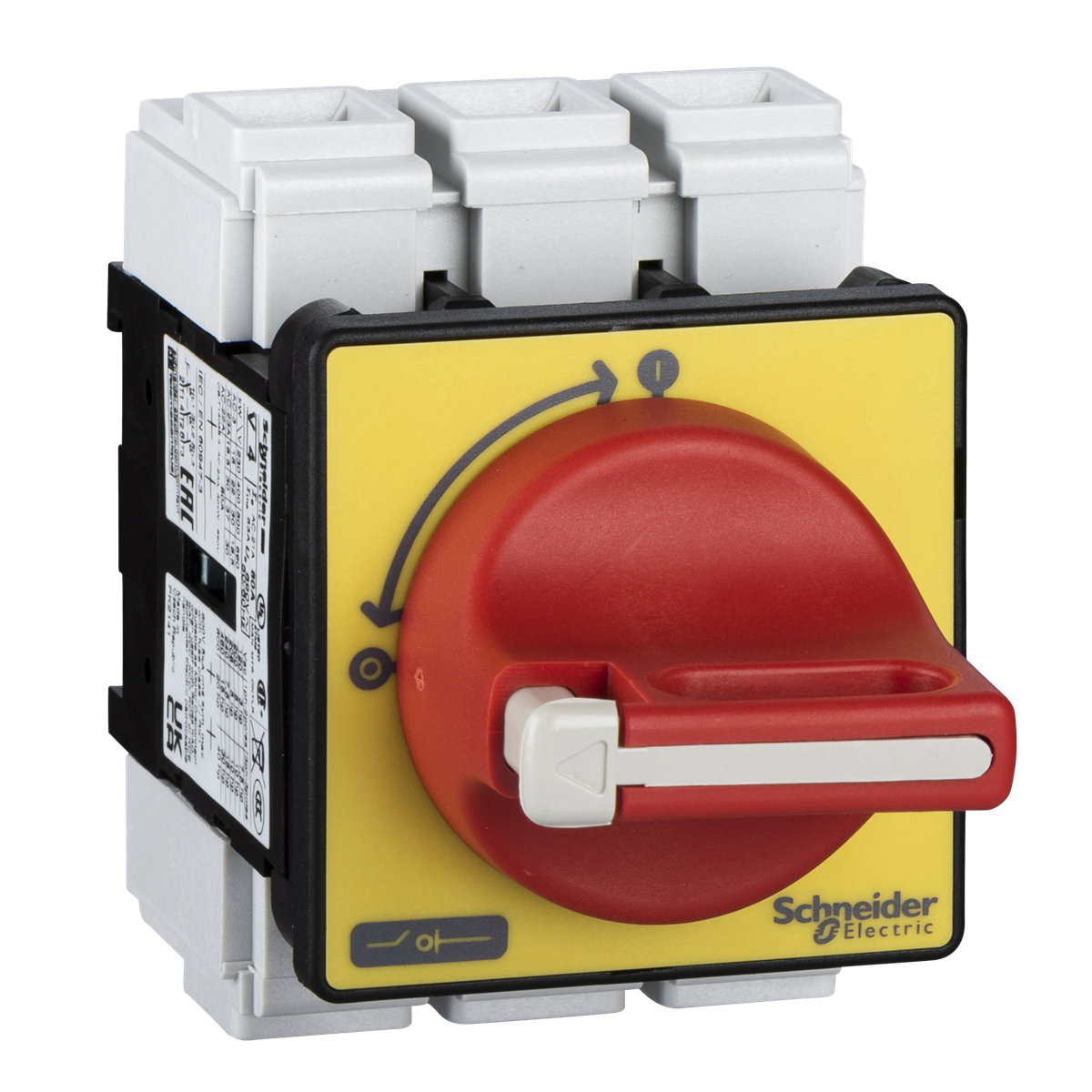

Main switch, fuse, door 80A VCF4
local index:
ALI051SCHN
Catalog No:
VCF4
EAN code:
3389110166002
Price:
104,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Main switch, fuse, door 80A
Technical data
-
Number of poles3
-
Thermal current [A]80
-
Rated voltage [V]690
-
PKWIU27.12.21.0
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu80 A
-
Rated permanent current at AC-21, 400 V80 A
-
Rated short-time withstand current lcw0.96 kA
-
Switching power at 400 V45 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementTurn button
-
Type of electrical connection of main circuitScrew connection
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V57 A
-
Rated operation power at AC-3, 400 V22 kW
-
Rated operation power at AC-23, 400 V30 kW
-
Conditioned rated short-circuit current Iq10 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
