Automation
Circuit breakers, disconnectors
Switches up to 160A

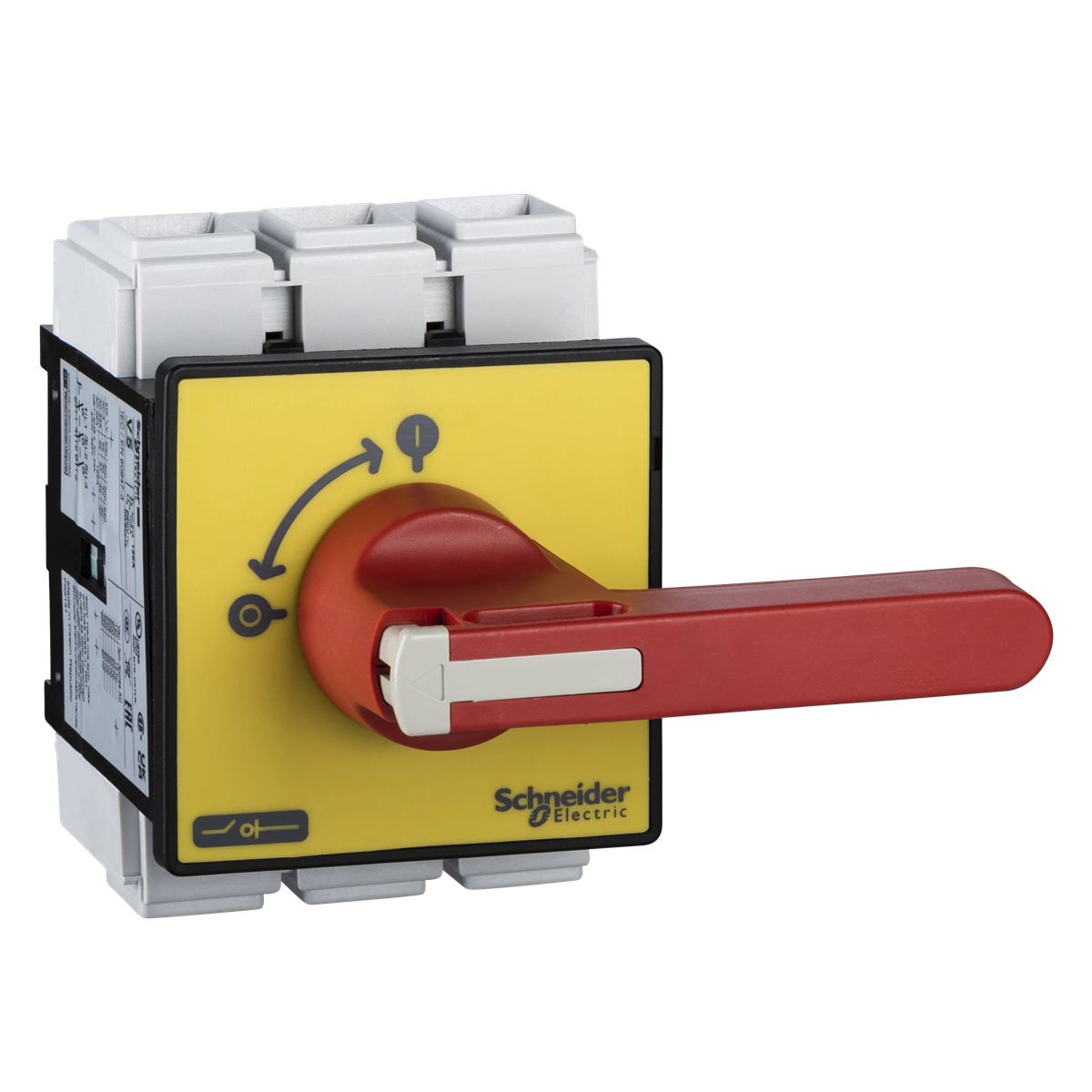

Main switch, fuse, door 125A VCF5
local index:
ALI002SCHN
Catalog No:
VCF5
EAN code:
3389110804638
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles:
3
Rated voltage [V]:
690
Thermal current [A]:
125
See full description
Price:
183,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Main switch, fuse, door 125A
Technical data
Number of poles
3
Thermal current [A]
125
Rated voltage [V]
690
PKWIU
27.12.21.0
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
125 A
Rated permanent current at AC-21, 400 V
125 A
Rated short-time withstand current lcw
1.5 kA
Switching power at 400 V
75 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Turn button
Type of electrical connection of main circuit
Screw connection
Version as maintenance-/service switch
No
Version as emergency stop installation
Yes
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
68.5 A
Rated operation power at AC-3, 400 V
30 kW
Rated operation power at AC-23, 400 V
37 kW
Conditioned rated short-circuit current Iq
10 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for distribution board installation
Yes
Colour control element
Red
Interlockable
Yes
Degree of protection (IP), front side
IP65
See more >>
