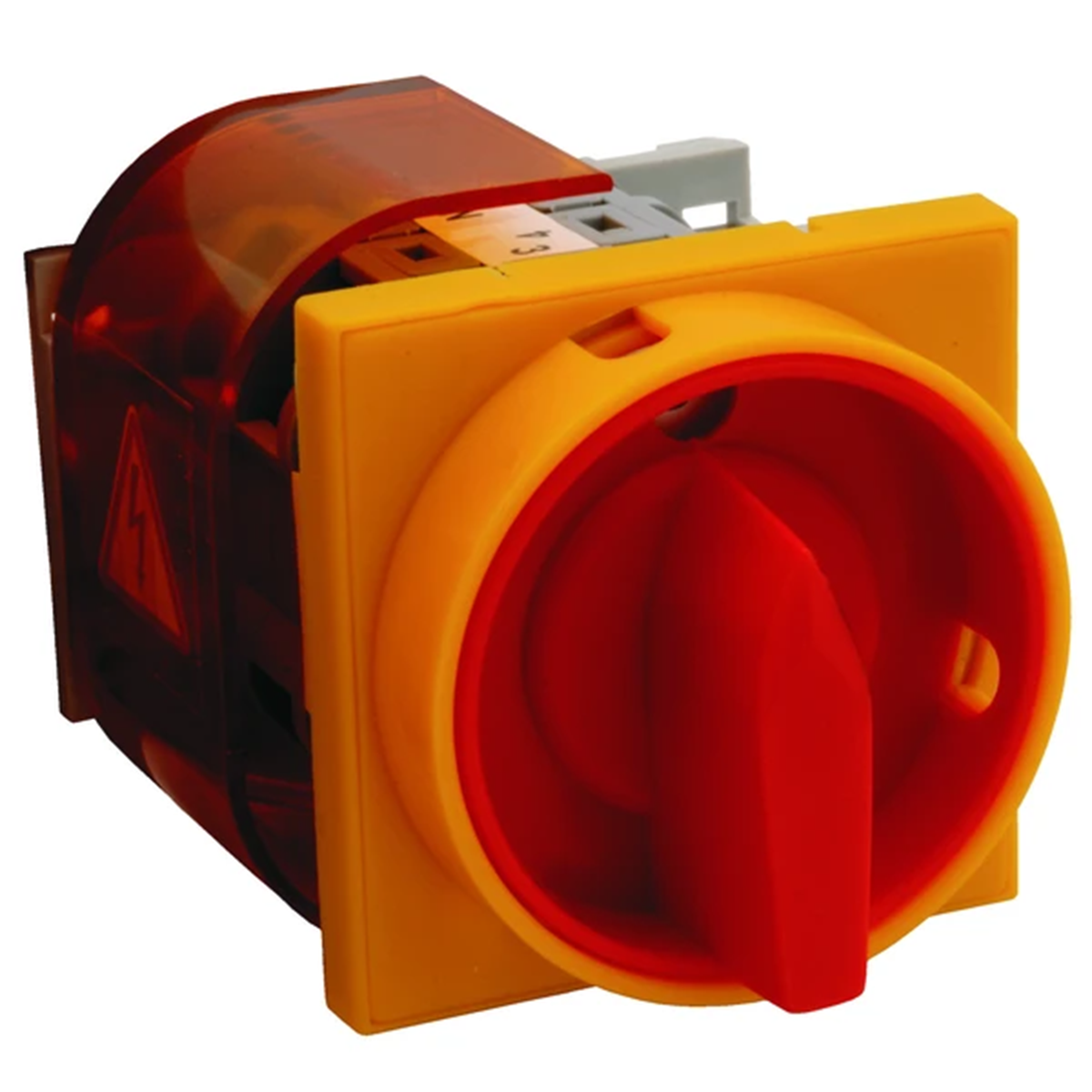

Main switch 32A, panel mounting, yellow-red lockable front ŁK32RG\P08

local index:
ALK038SPAM
Catalog No:
ŁK32RG\P08
EAN code:
5907723005563
Price:
29,94 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 5 pcs.
Delivery:
From 3,45 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Main switch disconnectors are used to switch on and off 3-phase circuits with currents up to 16; 25; 32A, with lockable knob and terminal cover.

Technical data

  • Continuous current [A]
    32
  • Rated operational power at AC-3, 400 V [kW]
    17
  • Level of security
    IP65

Other technical data

  • Model
    Reverser
  • With zero (off) position
    yes
  • Rated permanent current Iu
    32 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    yes
  • Suitable for distribution board installation
    no
  • Complete device in housing
    no
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    no
  • Rated operation power at AC-3, 400 V
    17 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    no
  • Suitable for intermediate mounting
    yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
