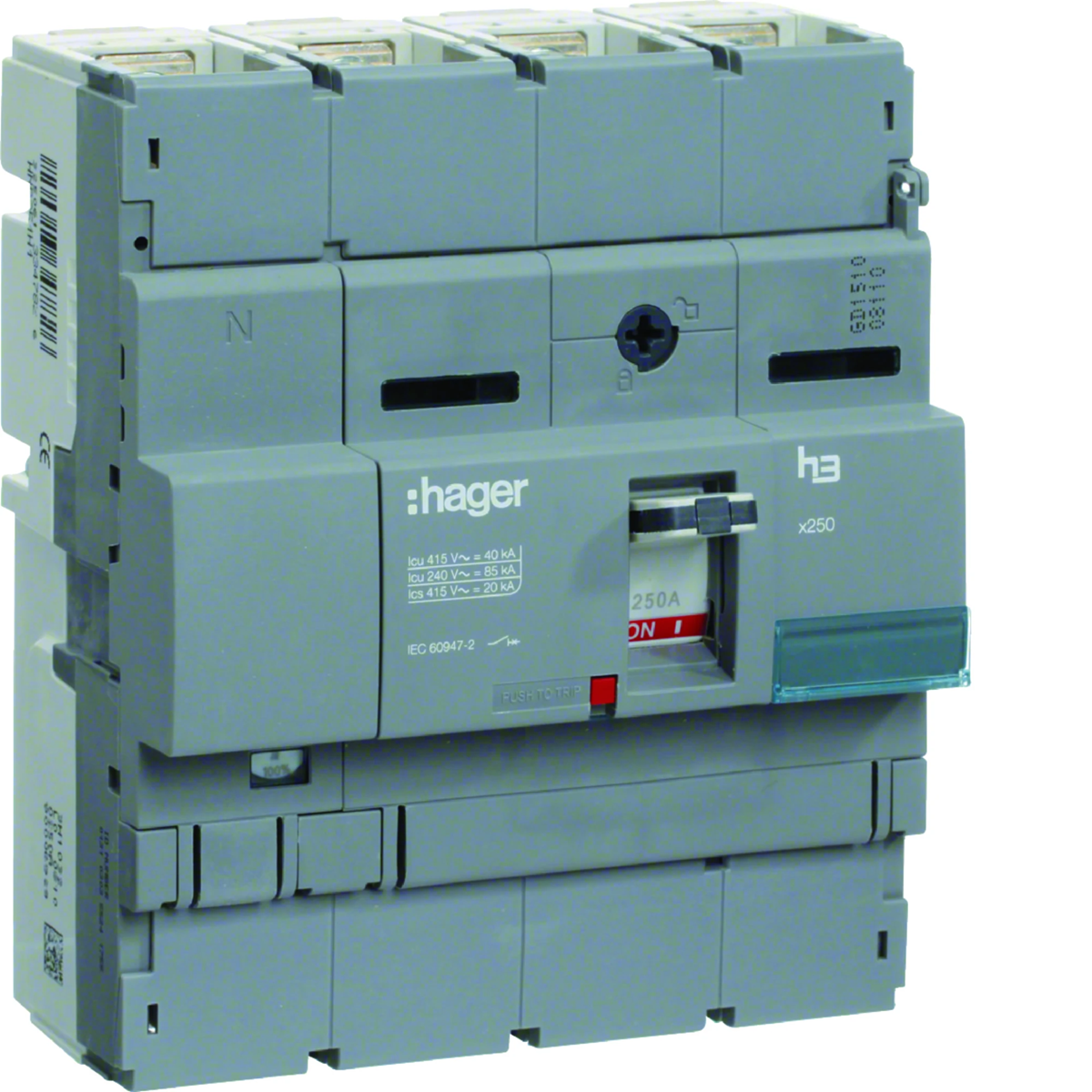

Load switch x250 4P 250A HCB251H
local index:
ALB023HAGE
Catalog No:
HCB251H
EAN code:
3250613136802
Price:
682,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Switch-disconnectors for breaking and making, for breaking and making operating currents, not equipped with releases
• accessories as for switchesów
• Icw (1s) = 3.6kA
• compliant with IEC 60947-3, cat. AC22/23A Features:
• mounting on a mounting plate
• cage clamps for copper and aluminum conductors available as accessories
• mechanical button TEST
• integrated lever lock under the padlock max. ∅ 4mm
• standard connection with cable lugs with hole ∅ 8mm,
width max. 25 mm,
wire 50-185 mm2,
strand 35-150 mm2
• accessories as for switchesów
• Icw (1s) = 3.6kA
• compliant with IEC 60947-3, cat. AC22/23A Features:
• mounting on a mounting plate
• cage clamps for copper and aluminum conductors available as accessories
• mechanical button TEST
• integrated lever lock under the padlock max. ∅ 4mm
• standard connection with cable lugs with hole ∅ 8mm,
width max. 25 mm,
wire 50-185 mm2,
strand 35-150 mm2
Technical data
-
Number of poles4
-
Rated insulation voltage [V]800
-
power loss [W]44
-
Electrical endurance (number of cycles)1000
-
PKWIU27.12.22.0
-
Surge voltage [kV]8000
-
Rated current [A]250
-
Power loss per pole [W]15
-
Mechanical durability (number of cycles)4000
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu250 A
-
Rated short-time withstand current lcw3 kA
-
Switching power at 400 V164 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP40
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage220 ... 415 V
-
Rated permanent current at AC-21, 400 V250 A
-
Rated operation power at AC-23, 400 V112 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 6 pcs. | 144 pcs. |
| Weight (kg) | 1,825 | 2,007 | 12,446 | 321,704 |
| Width (m) | 0,140 | 0,151 | 0,321 | 0,800 |
| Length (m) | 0,096 | 0,112 | 0,214 | 1,006 |
| Depth (m) | 0,165 | 0,194 | 0,370 | 1,200 |
