el12 Automation Circuit breakers, disconnectors Switches up to 160A Load switch x160 3P 160A

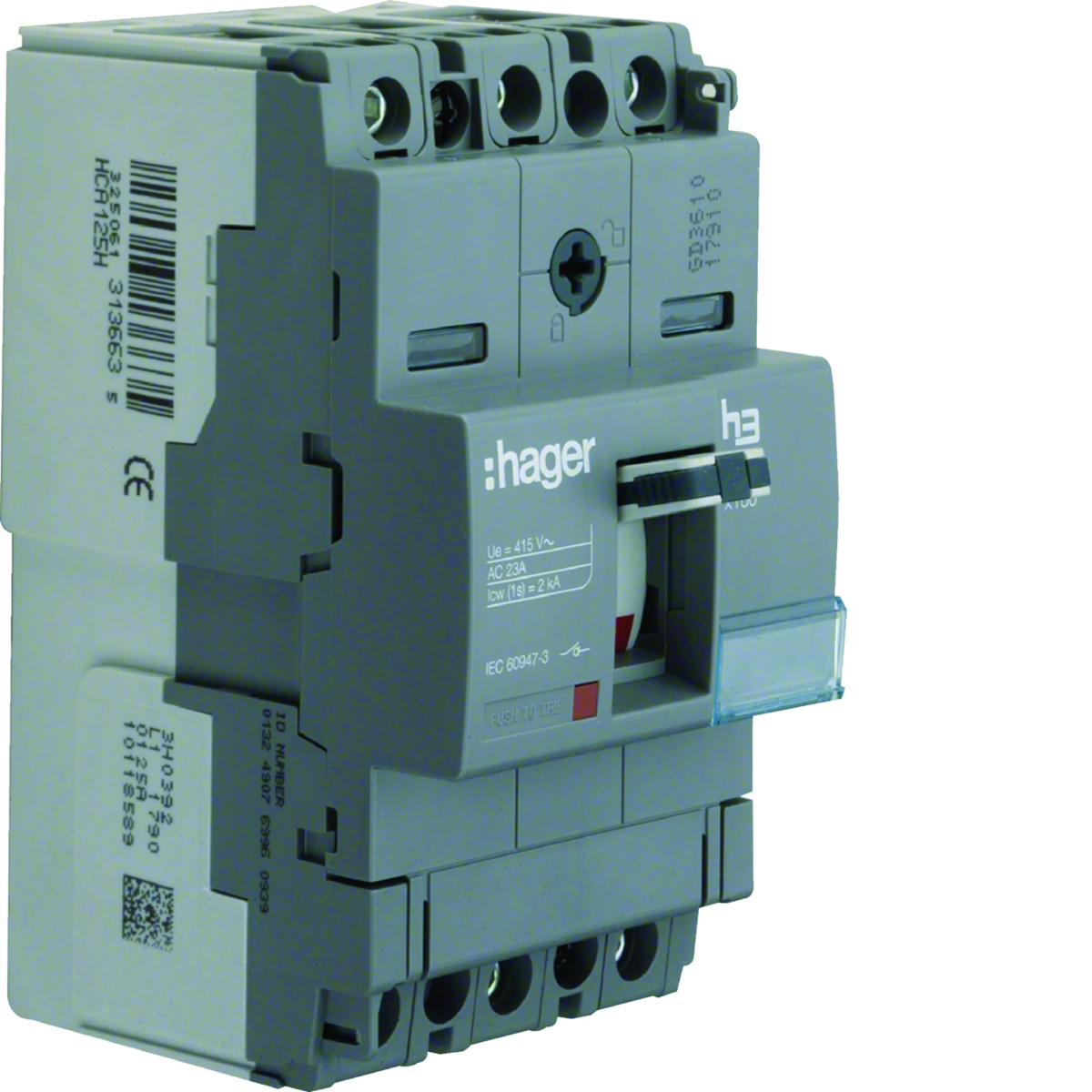

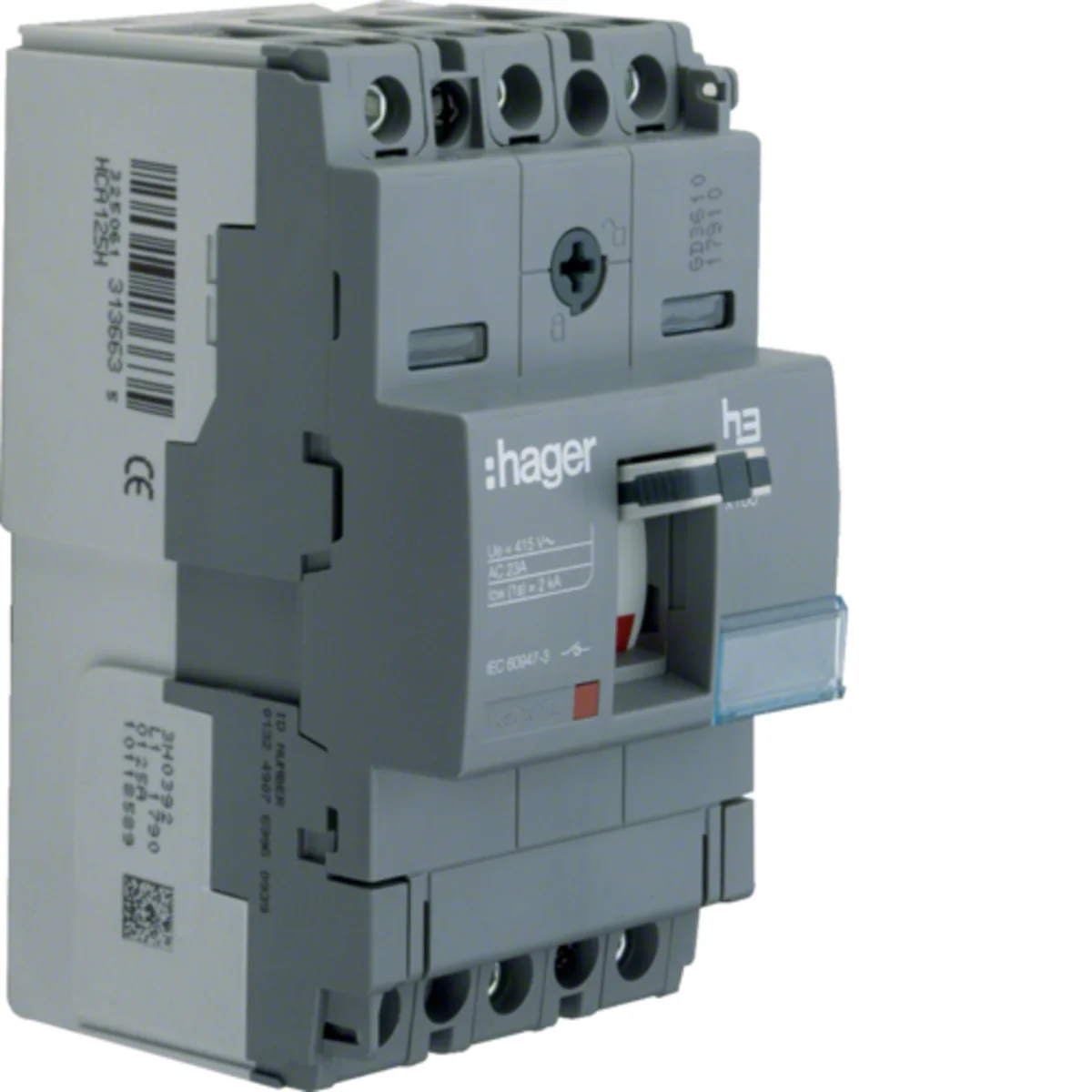

Load switch x160 3P 160A
Load switch x160 3P 160A

Click on the photo to enlarge

Load switch x160 3P 160A
Load switch x160 3P 160A
HAGER

Load switch x160 3P 160A HCA160H

local index:
ALI166HAGE
Catalog No:
HCA160H
EAN code:
3250613136659
Price:
292,32 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Power switches for switching on and off operating currents, not equipped with releases

Print the product sheet Report an error

Technical data

  • Number of poles
    3
  • Rated insulation voltage [V]
    690
  • power loss [W]
    43.8
  • Surge voltage [kV]
    8000
  • Rated current [A]
    160

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    160 A
  • Rated permanent current at AC-21, 400 V
    160 A
  • Rated operation power at AC-23, 400 V
    163 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    yes
  • Colour control element
    Grey
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP40
  • Version as maintenance-/service switch
    yes
  • Version as emergency stop installation
    no
  • Number of switches
    1
  • Rated operating voltage
    220 ... 690 V
  • Rated permanent current at AC-23, 400 V
    160 A
  • Rated short-time withstand current lcw
    2 kA
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    no
  • Voltage release optional
    yes
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    no
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other
