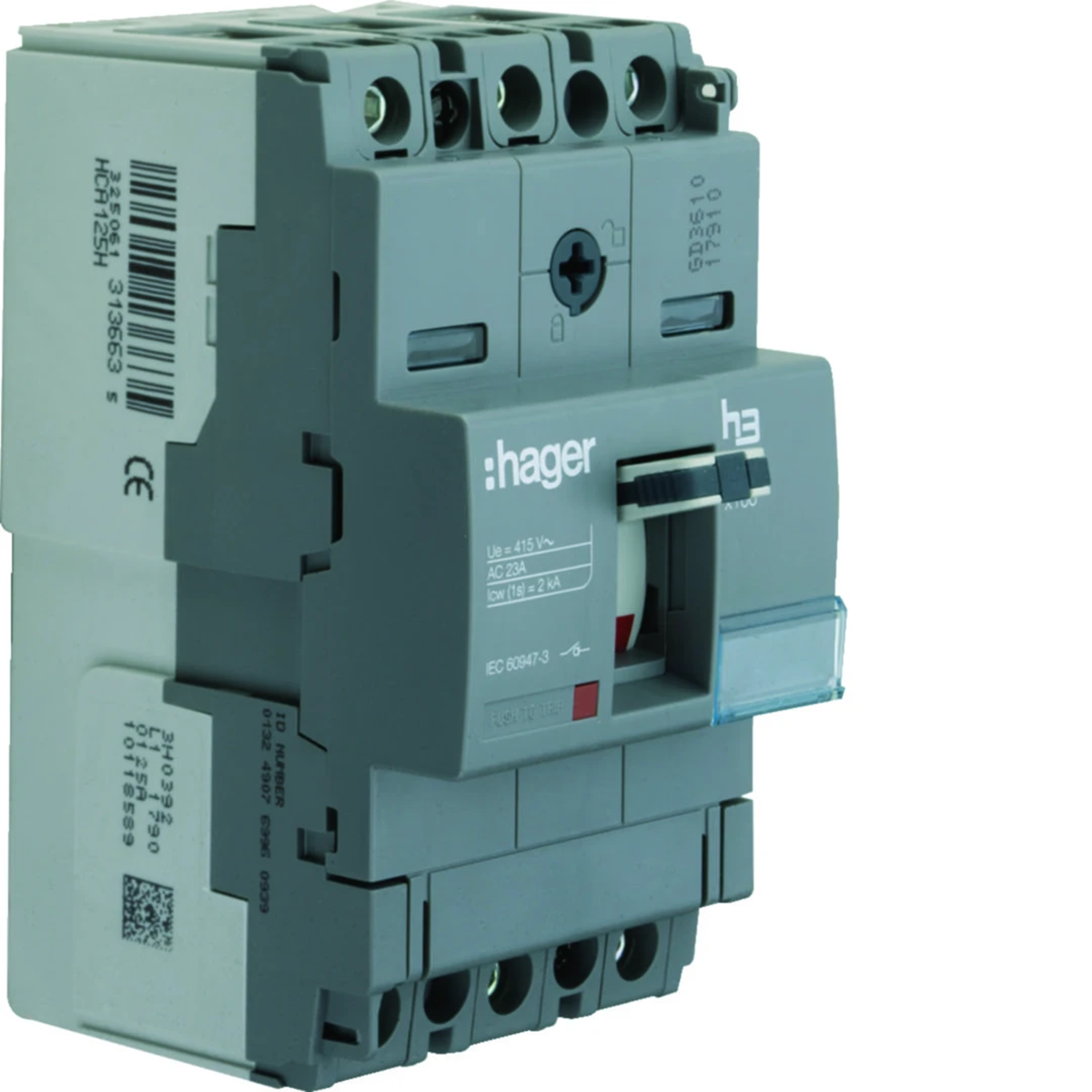

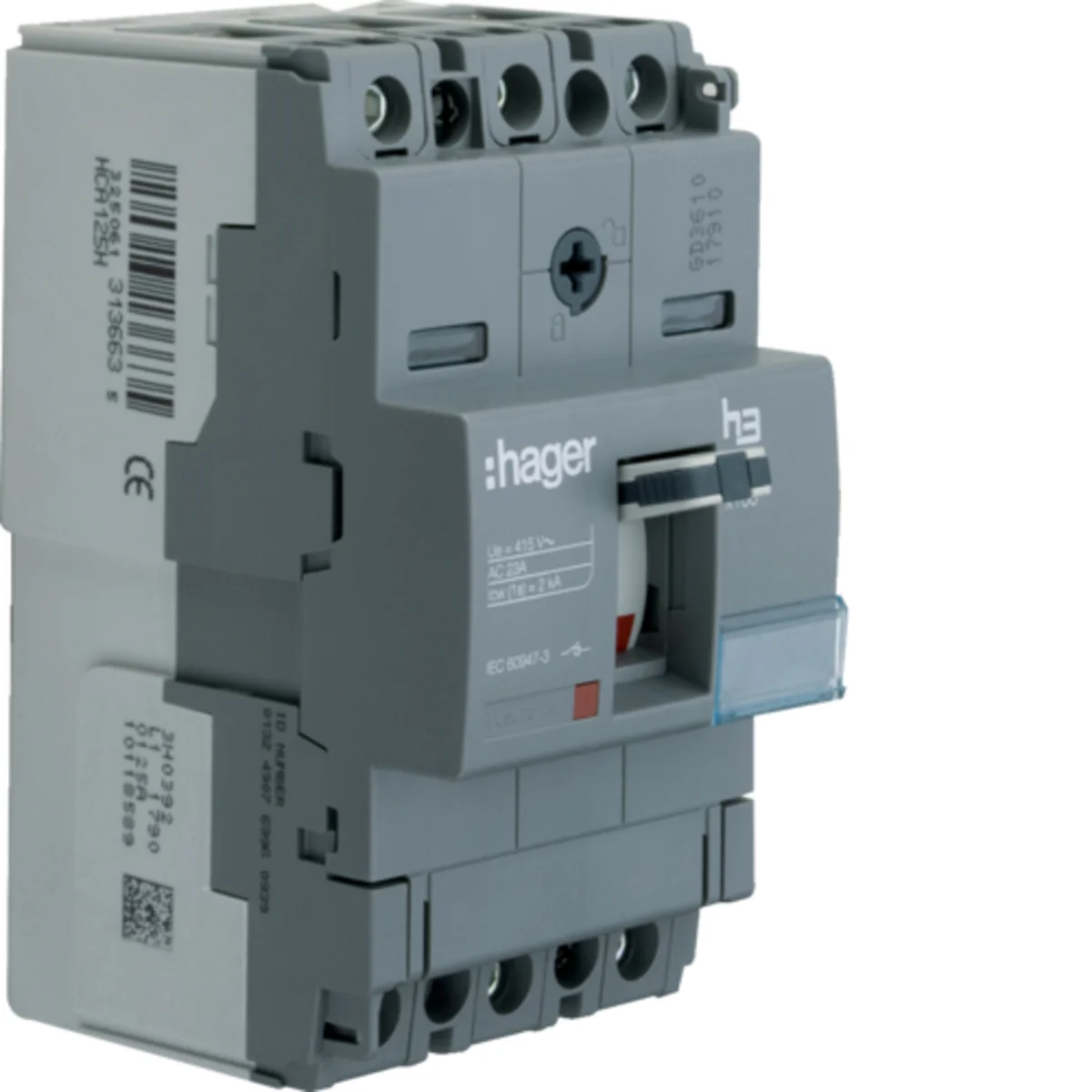

Load switch x160 3P 125A HCA125H

local index:
ALI162HAGE
Catalog No:
HCA125H
EAN code:
3250613136635
Manufacturer: HAGER
Rated current [A]: 125
Price:
272,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switches:
• for switching on and off operating currents, not equipped with releases
• accessories as for switchesów
• Icw (1s) = 2kA
• compliant with IEC 60947-3, cat. AC22/23A Features:
• mounting on a TS35 rail or mounting plate
• standard cage clamps for connecting copper wires
• cage clamps for aluminum conductors available as accessories
• equipped with connector measuring tips
• mechanical button TEST
• integrated lever lock under the padlock max. ∅ 4mm
• cage terminals:
- wire from 6 to 95 mm2
- strand from 6 to 70 mm2

Technical data

  • Rated current [A]
    125
  • PKWIU
    27.12.22.0

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    125 A
  • Rated permanent current at AC-21, 400 V
    125 A
  • Rated operation power at AC-23, 400 V
    123 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Grey
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP40
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    220 ... 690 V
  • Rated permanent current at AC-23, 400 V
    125 A
  • Rated short-time withstand current lcw
    2 kA
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Pakiet Paleta Karton
Quantity 9 pcs. 216 pcs. 1 pcs. 1 pcs.
Weight (kg) 9,023 239,552 0,871 0,946
Width (m) 0,321 0,800 0,075 0,128
Length (m) 0,216 1,014 0,096 0,087
Depth (m) 0,371 1,200 0,130 0,169
