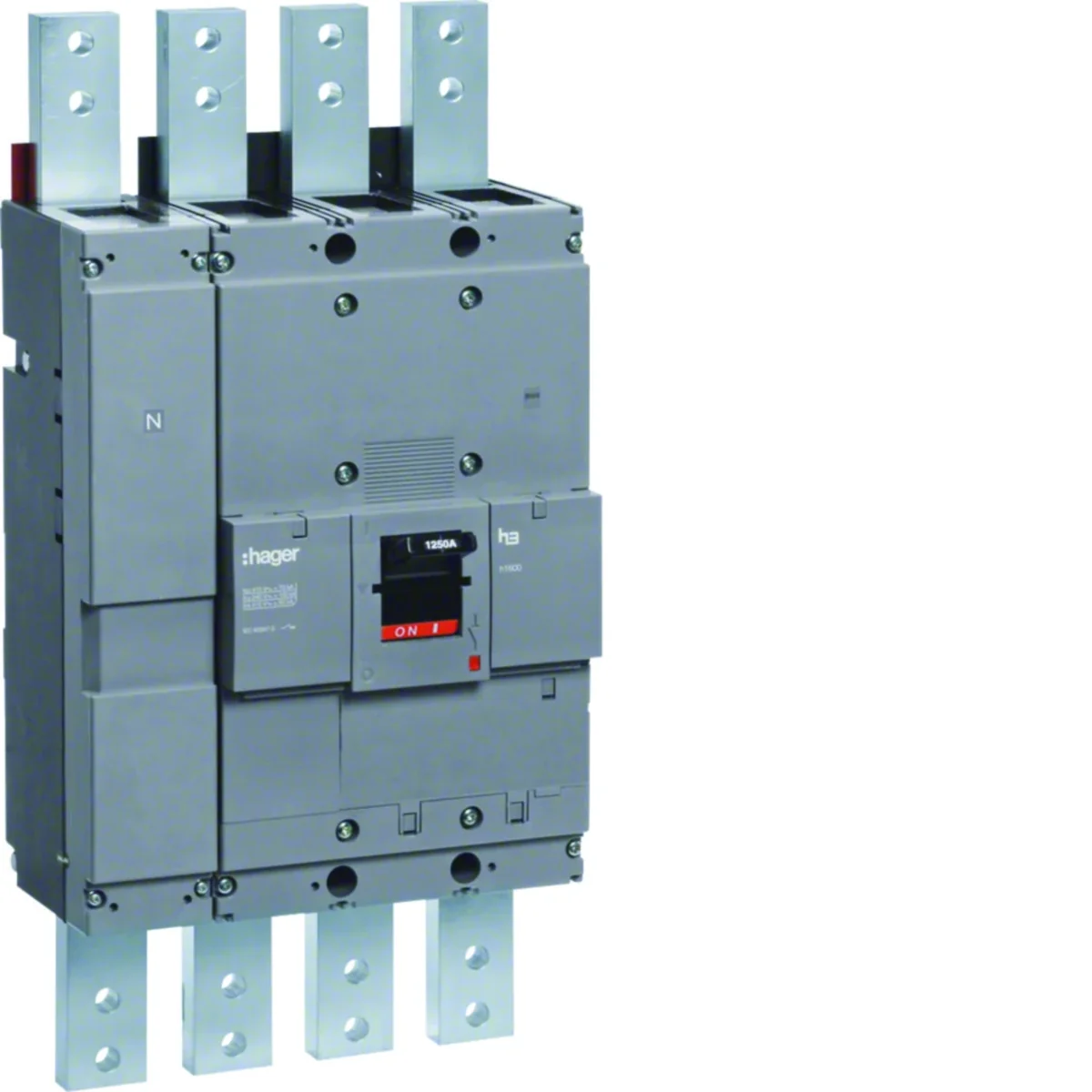

Load switch h1600 4P 1250A HCF981H
Indeks lokalny:
ALM069HAGE
Numer katalogowy:
HCF981H
Kod EAN:
3250613363291
Cena:
18 091,41 zł
gross / szt.
(w tym VAT 23%)
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Zapytaj o produkt
Opis produktu
Load disconnector is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities. Switch size h1600.
Dane techniczne
-
Rated frequency [Hz]60
-
Tightening torque [Nm]65
-
Rated current [A]1250
-
power loss [W]187.5
-
Connection typeVice
-
Mechanical durability (number of cycles)15000
-
Rated switching voltage [V]220/690
-
storage temperature [°C]from -35 to 70
-
Rated current correction factor for 3 devices installed side by side1
-
Wire cross-section (cord) [mm²]3 x 240
-
PKWIU27.12.22.0
-
Number of poles4
-
Rated insulation voltage [V]800
-
Level of securityIP4X
-
Power loss per pole [W]62.5
-
Electrical endurance (number of cycles)4500
-
Operating temperature range [°C]from -25 to 70
-
Reaction time when opening [ms]10
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]3 x 240
Pozostałe dane techniczne
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu1250 A
-
Rated short-time withstand current lcw15 kA
-
Switching power at 400 V822 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (IP), front sideIP40
-
Width280 mm
-
Depth191 mm
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage220 ... 690 V
-
Rated permanent current at AC-21, 400 V1250 A
-
Rated operation power at AC-23, 400 V562 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
With pre-assembled cablingNo
-
Degree of protection (NEMA)Other
-
Height570 mm
Dane producenta
-
ProducentHager Electro S.A.S.
-
AdresFR 67215 Obernai 123 boulevard d’Europe Francja
Opakowania zbiorcze
| Rodzaj opakowania | Karton | Paleta |
| Ilość | 1 szt. | 5 szt. |
| Waga (kg) | 35,900 | 202,500 |
| Szerokość (m) | 0,400 | 0,800 |
| Długość (m) | 0,280 | 1,050 |
| Głębokość (m) | 0,620 | 1,200 |
