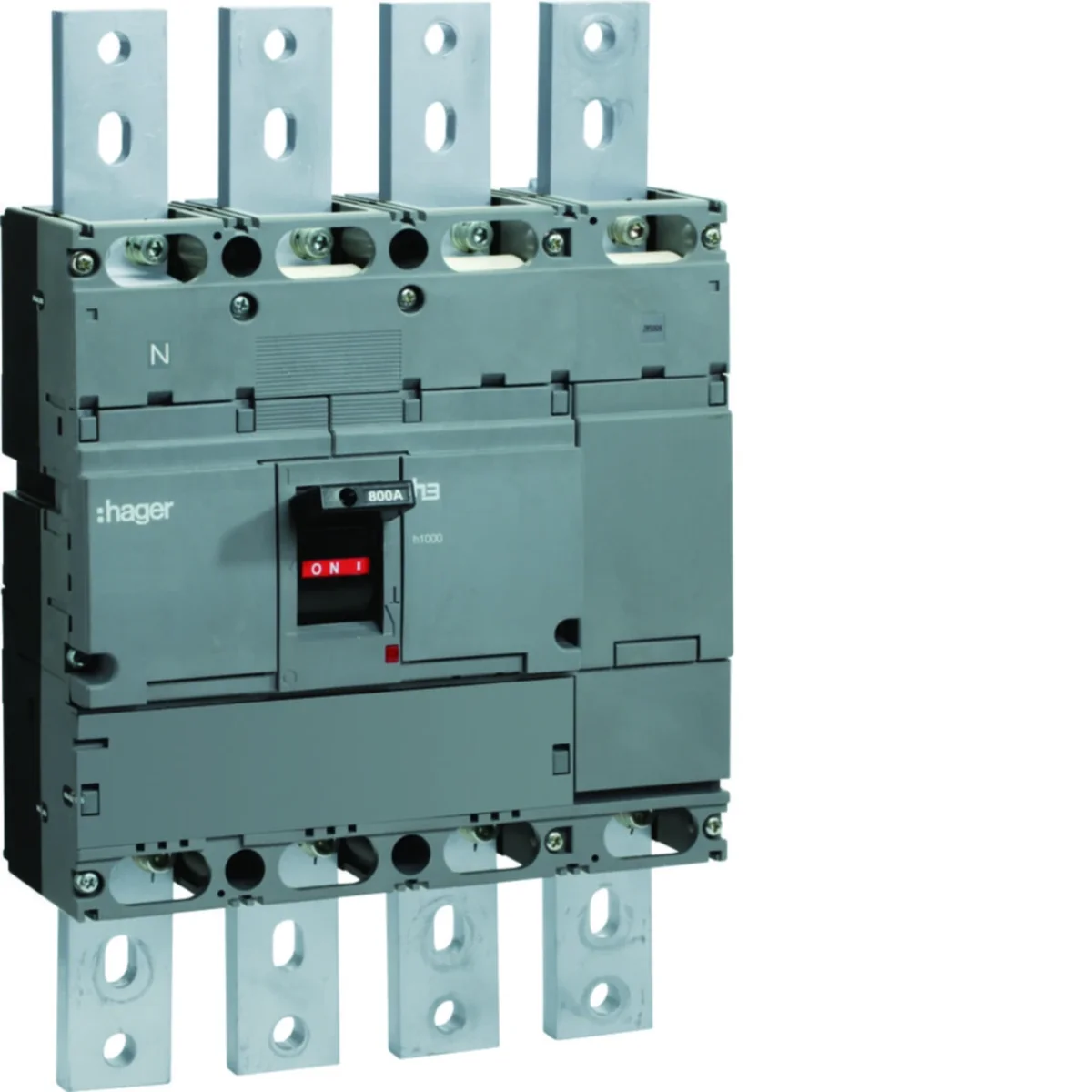

Load switch h1000 4P 800A HCE801H
local index:
ALM065HAGE
Catalog No:
HCE801H
EAN code:
3250613363215
Price:
2392,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Load disconnector is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities. Switch size h1000.
Technical data
-
Rated frequency [Hz]60
-
Tightening torque [Nm]65
-
Rated current [A]800
-
power loss [W]148.8
-
Connection typeVice
-
Mechanical durability (number of cycles)15000
-
Rated switching voltage [V]220/690
-
storage temperature [°C]from -35 to 70
-
Rated current correction factor for 3 devices installed side by side1
-
Wire cross-section (cord) [mm²]2 x 240
-
PKWIU27.12.22.0
-
Number of poles4
-
Rated insulation voltage [V]800
-
Level of securityIP4X
-
Power loss per pole [W]49.6
-
Electrical endurance (number of cycles)4500
-
Operating temperature range [°C]from -25 to 70
-
Reaction time when opening [ms]10
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]2 x 240
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu800 A
-
Rated short-time withstand current lcw10 kA
-
Switching power at 400 V526 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP40
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage220 ... 690 V
-
Rated permanent current at AC-21, 400 V800 A
-
Rated operation power at AC-23, 400 V360 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 16 pcs. |
| Weight (kg) | 11,500 | 12,275 | 219,400 |
| Width (m) | 0,280 | 0,385 | 0,800 |
| Length (m) | 0,145 | 0,205 | 1,010 |
| Depth (m) | 0,435 | 0,535 | 1,200 |
