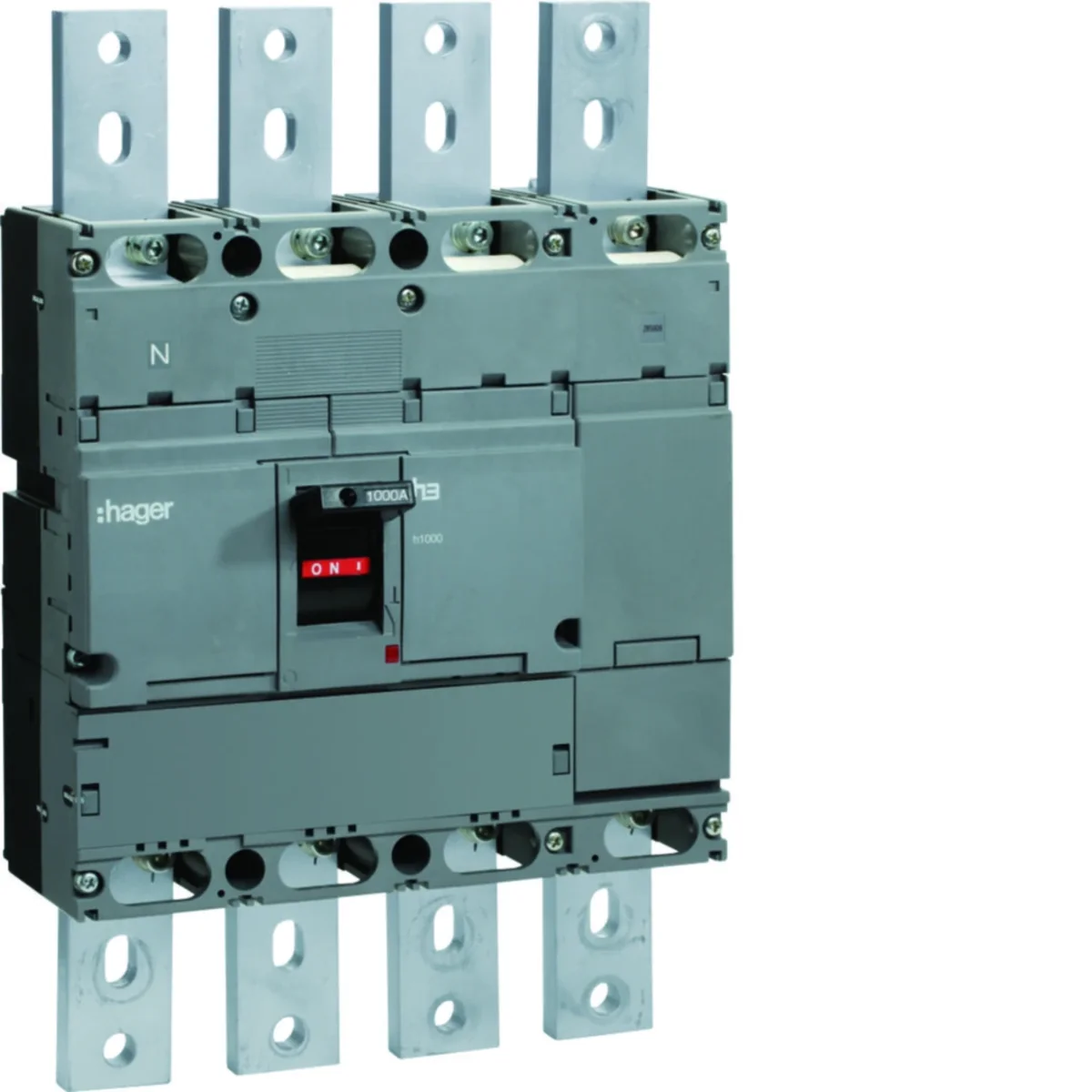

Load switch h1000 4P 1000A HCE971H

local index:
ALM067HAGE
Catalog No:
HCE971H
EAN code:
3250613363239
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 4
Tightening torque [Nm]: 65
Price:
2990,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Load disconnector is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities. Switch size h1000.

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    65
  • Rated current [A]
    1000
  • power loss [W]
    186
  • Connection type
    Vice
  • Mechanical durability (number of cycles)
    15000
  • Rated switching voltage [V]
    220/690
  • storage temperature [°C]
    from -35 to 70
  • Rated current correction factor for 3 devices installed side by side
    1
  • Wire cross-section (cord) [mm²]
    2 x 240
  • PKWIU
    27.12.22.0
  • Number of poles
    4
  • Rated insulation voltage [V]
    800
  • Level of security
    IP4X
  • Power loss per pole [W]
    62
  • Electrical endurance (number of cycles)
    4500
  • Operating temperature range [°C]
    from -25 to 70
  • Reaction time when opening [ms]
    10
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    2 x 240

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    1000 A
  • Rated short-time withstand current lcw
    10 kA
  • Switching power at 400 V
    658 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP40
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    220 ... 690 V
  • Rated permanent current at AC-21, 400 V
    1000 A
  • Rated operation power at AC-23, 400 V
    450 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    Yes
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Cable clamp
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 11,500 16,065 183,650
Width (m) 0,280 0,380 0,800
Length (m) 0,145 0,205 1,050
Depth (m) 0,435 0,530 1,200
